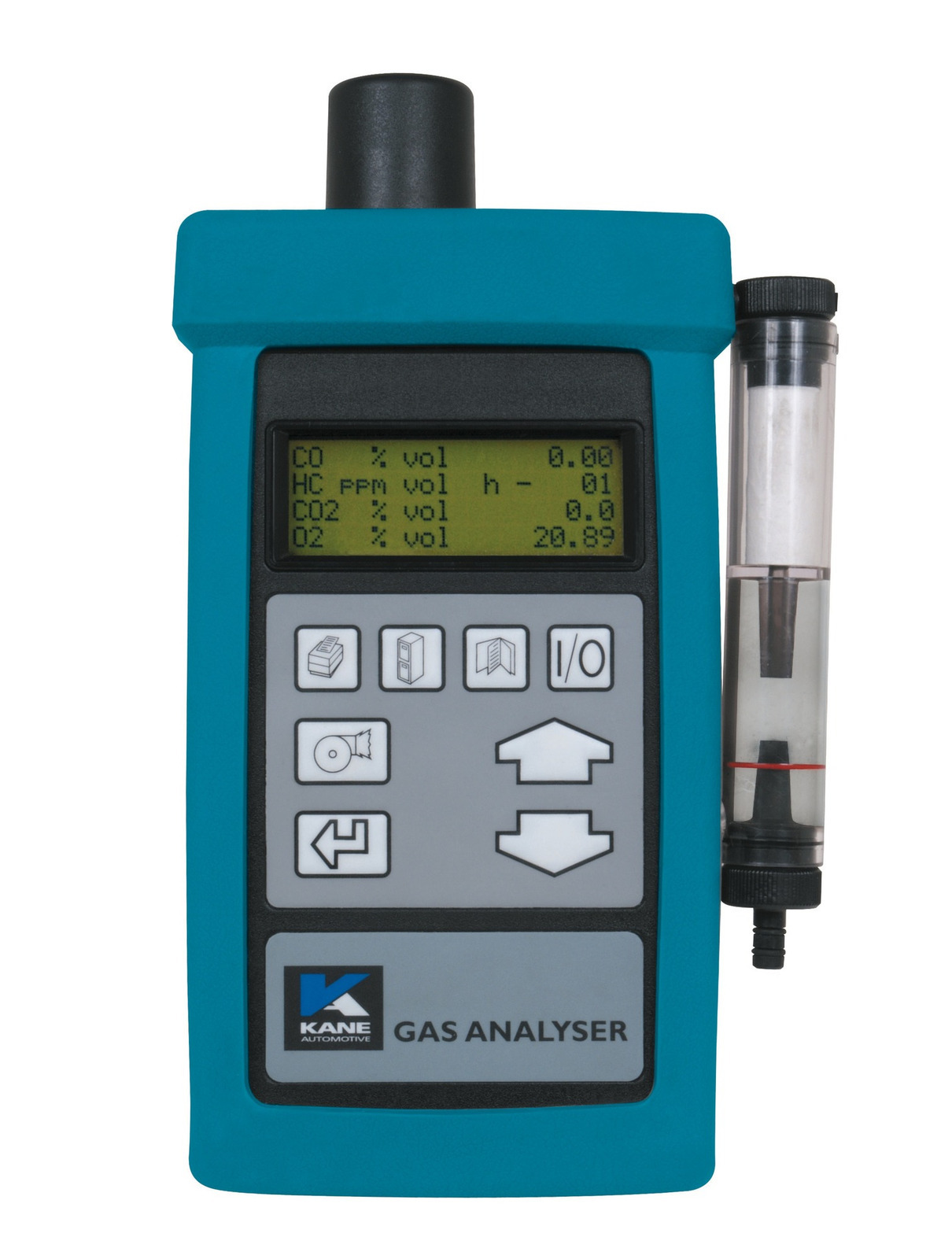

Easy to use hand held 5 gas analyser.
Declaration of conformity to OIML R99 Class 1.
Certificate of calibration supplied.
Ideal for emissions diagnostics, tuning and regulated testing. Measures CO, HC, O2, CO₂, and Lambda (or AFR).
Fast warm up time and fast response time with higher output pump.
5 language options built in
Store up to 250 Tests
RPM and oil temperature measurements plus accessories.
Prints via optional Infra-red printer.
PC compatible via RS232 for uploading stored data to PC for spreadsheet or graphical analysis and printing.

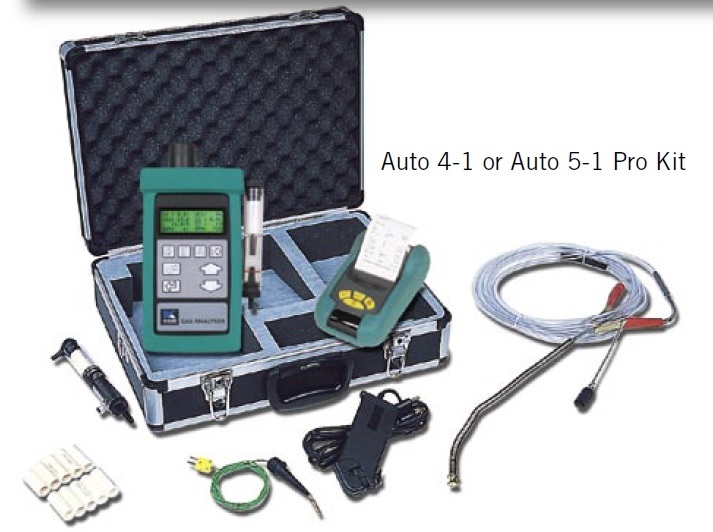

Box Contents

Anlayser with protective rubber sleeve
Water trap and filter
12v adapter cable
AC power supply/battery charger
Spare filters
Exhaust probe
Carry case
Manual

Specification

Parameter	Resolution	Accuracy	Range
Carbon Monoxide	0.01%	±5% of reading^1 ±0.06% volume^1	0-10% Over-range 20%
Oxygen 02 (Fuel Cell)	0.01%	±5% of reading ^1 ±0.1% volume^1	0-25% Over-range 48%
Hydrocarbon (HC-hexane) (NDIR)	1ppm	±5% of reading^1 ±12ppm volume^1	0-3000ppm Over-range: 10,000ppm
Carbon Dioxide (Infrared)	1ppm	±5% of reading^1 ±0.5% volume^1	0-16% Over-range: 25%
Nitric Oxide^*2 (fuel cell)	1ppm	0-4000ppm ±4% or 25ppm; 4000 - 5000ppm ±5%	0-5000ppm
Oil Temperature	0.1°C/F	±2.0°C±0.3% of reading ±3.6°F±0.3% of reading	0-150°C 32-302°F
RMP	1 rpm	50 rpm	200-6,000 rpm.
Carbon Monoxide Corrected CO	0.01%	Calculated	0-15%
Lambda AFR (Petrol) (LPG)	0.001 00.01		0.8 - 1.2 11.76 - 17.64 12.48 - 18.72

^*1 Using dry gases at STP

^*2 Standard on models Auto 5-2 and 5-1 only

To obtain the quoted specificaton an instrument should be calibrated with clean ambient air (normally outside the workshop) at standard temperature and pressure (STP).

**Note:** The analyser is not for use with a Dynometer, unless the high temperature probe is fitted.

Sensor response T₉₅	15 seconds for Auto 4-1, 5-1 Nominal 20 seconds Auto 4-2, 5-2, 4-3 & 5-3
Warm Up	Less than 3 minutes
Pre-programmed Fuels	Petrol, LPG and CNG
Data-Logging	255 Snap Shots
Dimensions Weight Handset Probe	1kg 220mm x 55mm 120mm Insertion depth 350mm x Diameter 15mm Clip handle to secure to exhaust, 4m long home Various probes available including high temperature
Ambient Operating Range	+5°C to +40°C/10% to 90% RH non condensing
Storage temperature	Minimum: 0°C Maximum: +50°C
Battery Charger	Input: 110Vac/230 Vac nominal Output: 10Vac off load
Analyser battery run time	>4hours from full charge with the pump running

Standard accessories

Box Contents

Anlayser with protective rubber sleeve
Water trap and filter
12v adapter cable
AC power supply/battery charger
Spare filters
Exhaust probe
Carry case
Manual

Recommended options

KMIRP Infrared Printer with thermal printer and AA batteries

KANE IMPRINT

Infrared Printer with standard paper roll and ink ribbon, supplied with rechargeable batteries, battery charger and 2 paper rolls

NOX4-1 NOx upgrade for Auto 4-1

NOX4-2 NOx upgrade for Auto 4-2

AUTOSWKIT Auto software kit with CL3 lead for PC interface

14102/2 Laptop style carry case

17590 Metal Carry Case

EPAUTO3 High temp. EPAUTO2 probe with 17702 inline filter

EPAUTO5 High temp. probe with black hose

EPAUTO6 Motorbike Probe with emission temperature measurement
