KANE AUTOplus 5-2 Automotive Exhaust Gas Analyzer 5-Gases

Code: KANE AUTOplus 5-2 AUTO+ PLUS



Datasheet PDF, 0.19 Mb


Description

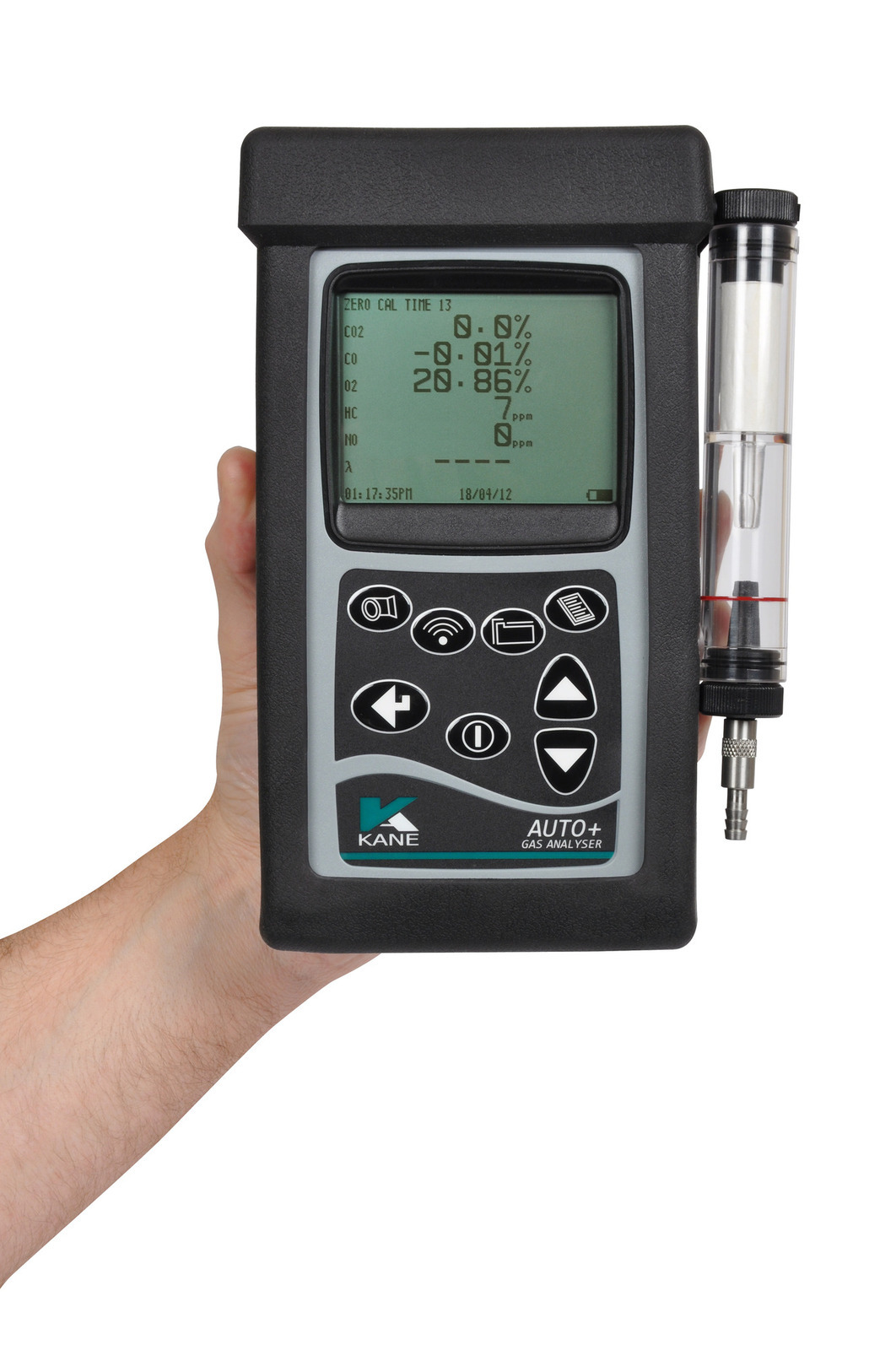

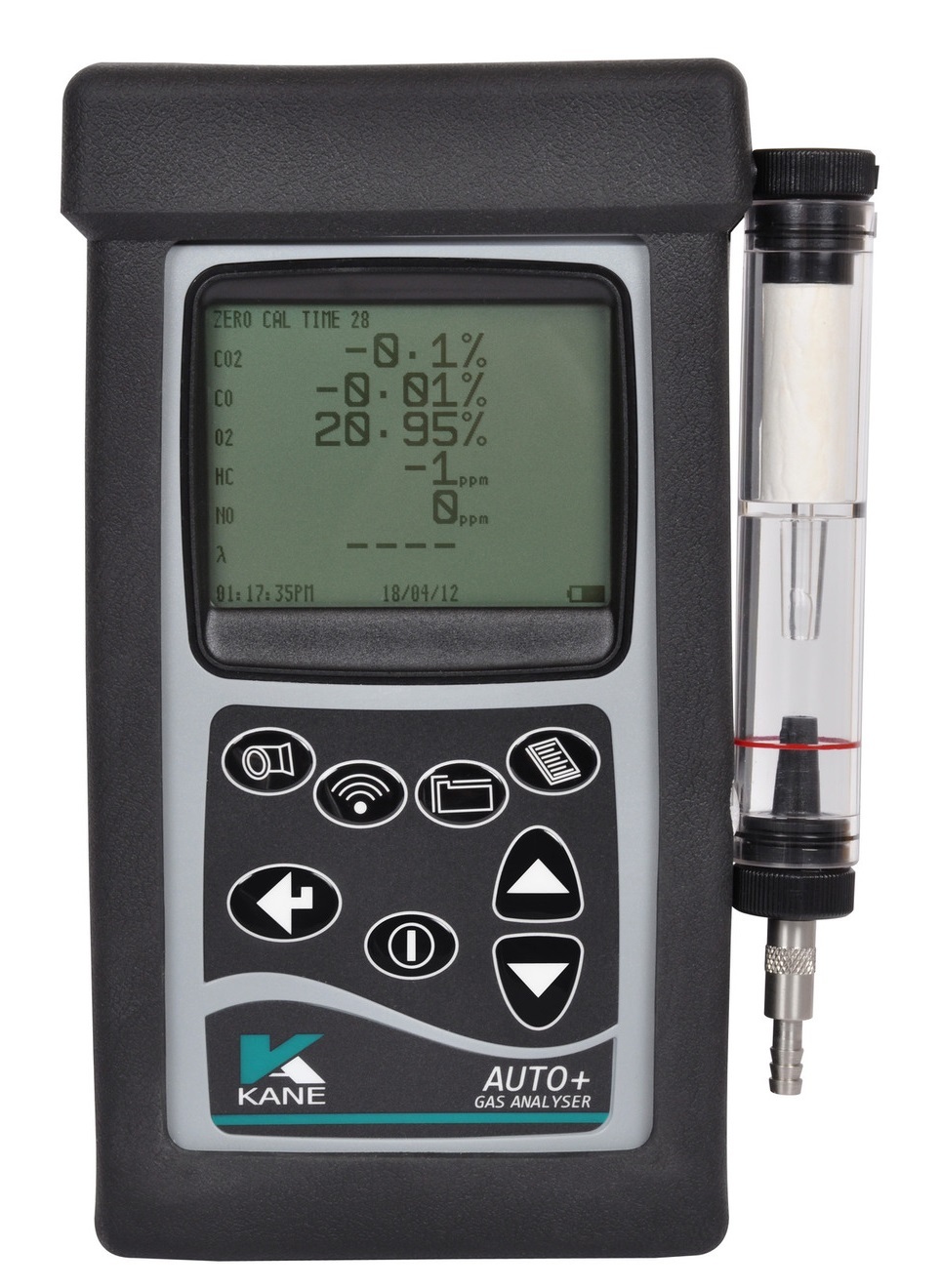

AUTOplus 5-2 Hand Held 5 Gas Analyser - CO, HC, CO2,O2 , NOx



All the features you'd expect from a Kane Exhaust Gas Analyser including:

monochrome QVGA display and Bluetooth ™

The AUTOplus measures CO, HC, CO2, O2 , NOx & Lambda

Hand held and portable

it can be used on Petrol/Gasoline, LPG, CNG & Diesel vehicles

with a fast warm up

the AC & 12v Power Supply provides up to 4 hours internal battery life.

With multilingual software the AUTOplus

is ideal for Pre-compliance testing, vehicle diagnostics and servicing to manufacturers specification.

It is also easily maintained with a low cost of ownership.





Features

  • Monochrome QVGA Display
  • Easy to read and informative
  • Bluetooth
  • Links easily to PC or appropriate Bluetooth devices (additional software required)
  • Compact design
  • Can incorporate 4 or 5 gas option
  • Pump speed control
  • Improves battery life
  • Improved print capability
  • Select faster printing when used with optional KMIRP2



Bluetooth ™

  • USB/Serial with optional cable and software

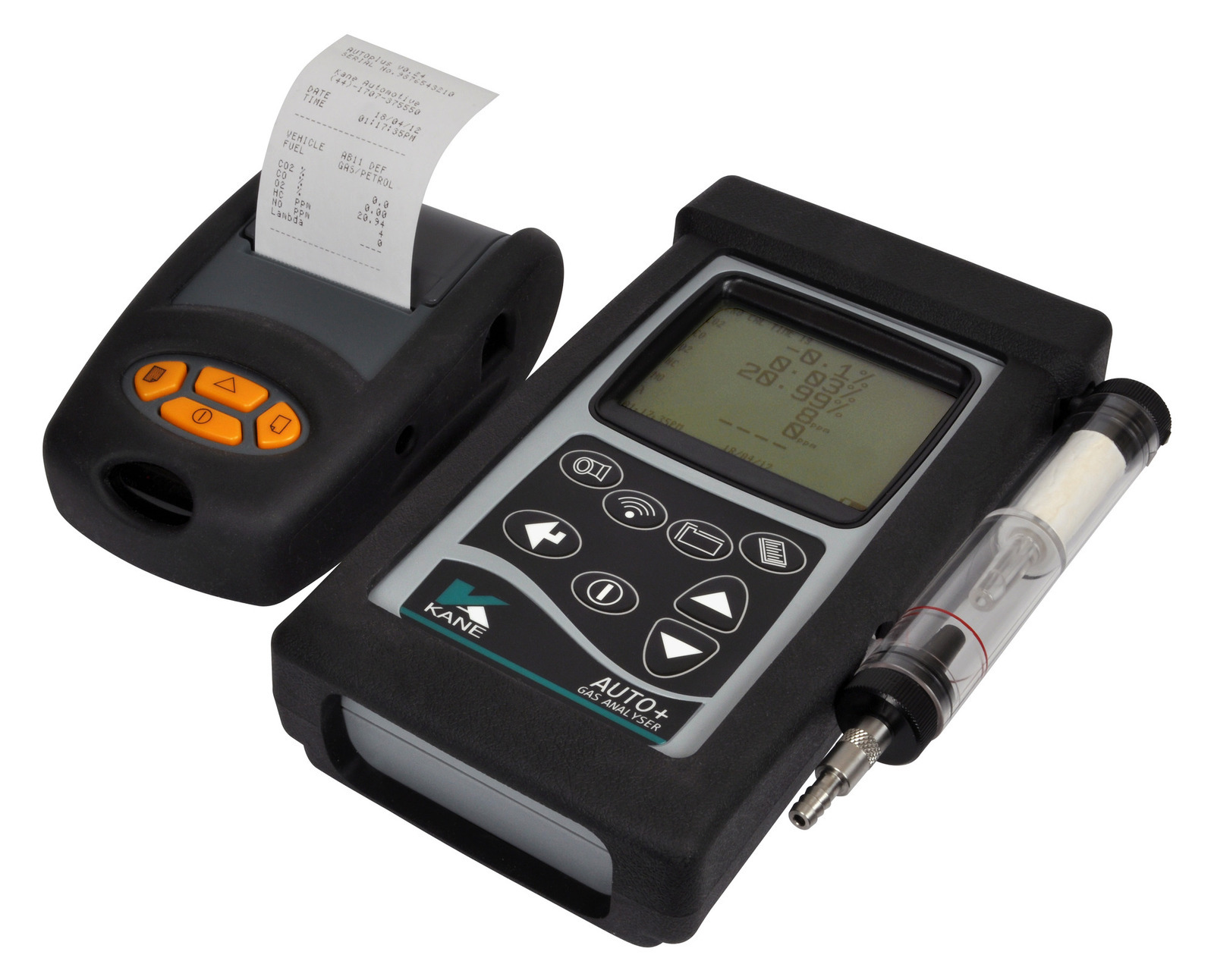

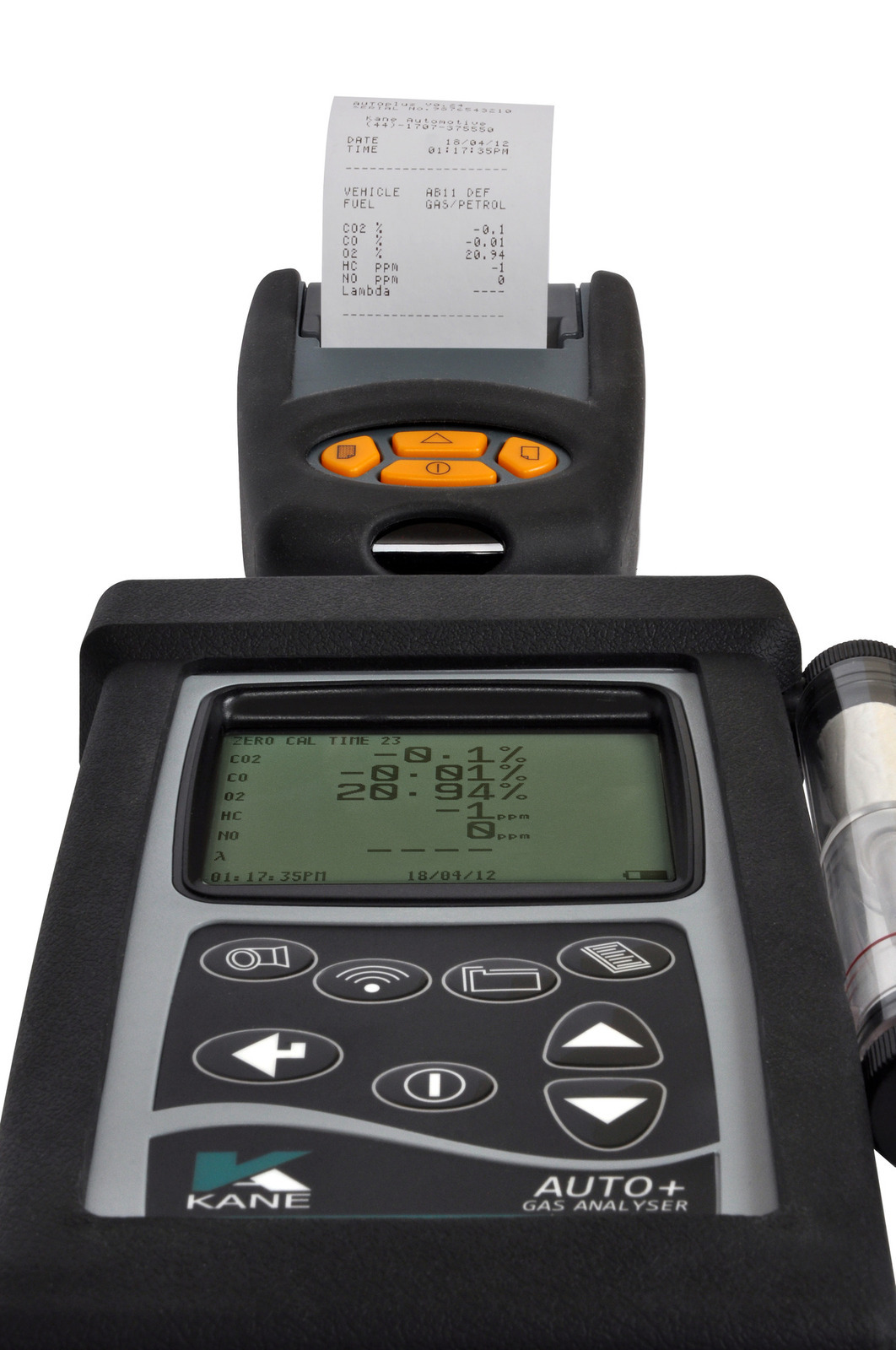

  • Standard print with optional KMIRP

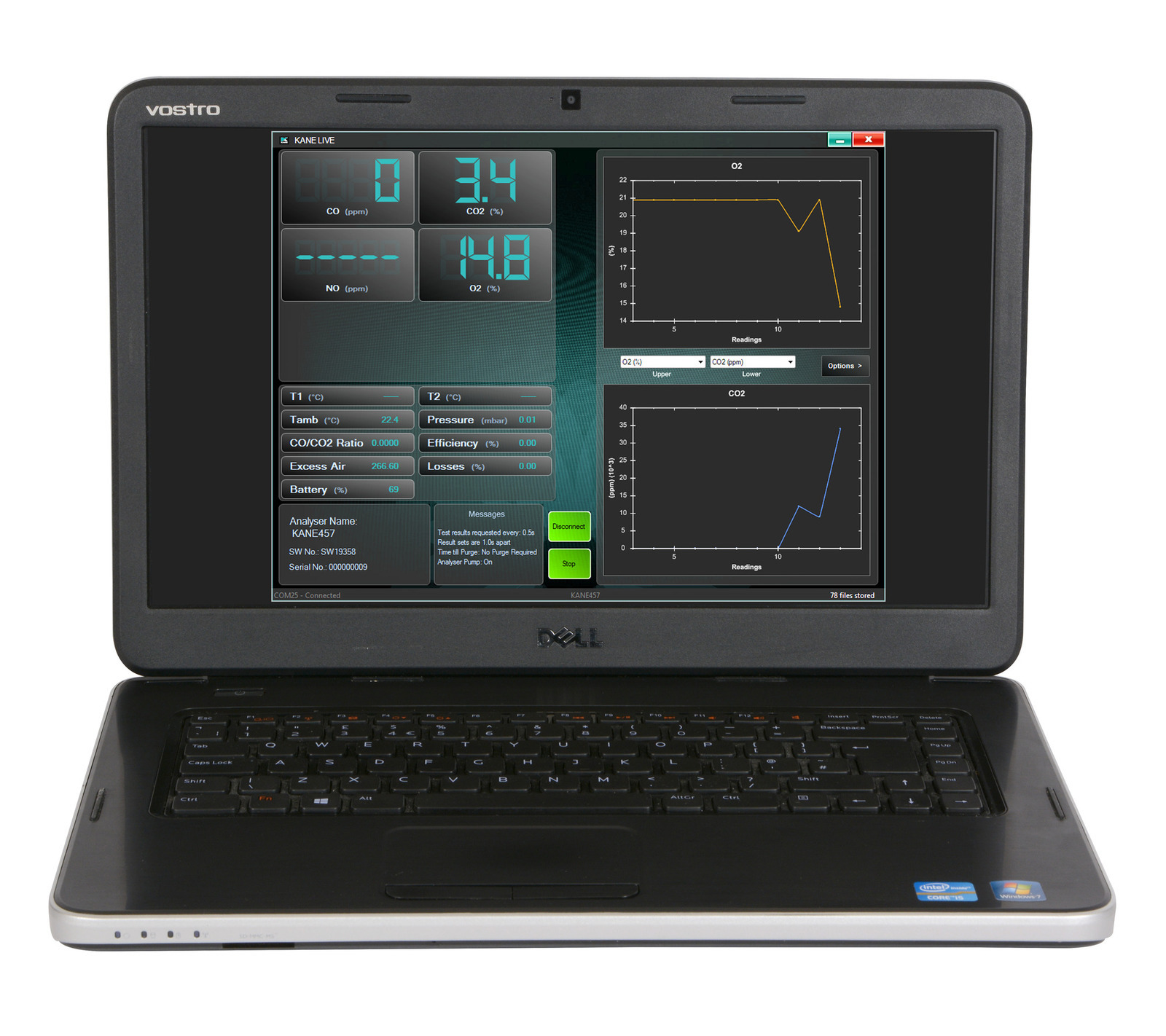

KANE LIVE Software

• Easily connects the AUTOplus to a PC via BluetoothTM

• All readings in "real time" displayed digitally & in graph

form

• Helps identify emission related faults

• Features include:

Update user details

Toggle pump on/off

Save & download data

Customise graphing



Standard accessories

Contents

Analyser

Protective Rubber Boot

High Temp Probe

AC &

12V Chargers

Spare Filters

Manual

Carry Case &

optional IR Printer



Recommended options
