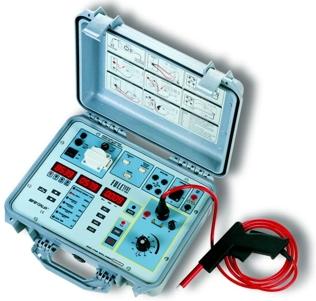

Multifunctional Meter for Safety Test on Electrical Industrial Machine HT Italia Fulltest4050
OBSOLET PRODUCT ( * OUT OF USE )

Code: HT Italia Fulltest4050




Datasheet PDF, 0.69 Mb

Description

  • Continuity of protection conductors with 12V/>10AAC
  • Continuity of protection conductors with 6V/>10AAC
  • Insulation Resistance with 500VDC test voltage
  • Withstanding test with 1000VAC fixed voltage
  • Withstanding test with 1000VAC fixed voltage in BURN mode
  • Withstanding test with up to 4000VAC programmable voltage
  • Withstanding test with up to 4000VAC programmable voltage in BURN mode
  • Discharging Time test internal capacitance on power supply plug
  • Discharging Time test on internal capacitance
  • Loop Phase-PE impedance (with IMP57 optional accessories)
  • Test on magnetothermic protection with curve B and C
  • Nominal current of magnetothermic protection selectable up to 63A
  • Leakage current on test socket
  • Programmable Timer on tests
  • Programmable thresholds trip-out current
  • Internal memory
  • RS-232 serial interfacea


Standard accessories

  • KITFULLTEST: set of 4 cables + 4crocodiles + 1 test lead
  • C4050/04 : 4 wire connector for continuity test
  • PISTOLA: gun shape terminal for withstanding test
  • BORSA2000: accessory bag
  • TOPVIEW: Windows software and serial cable RS-232 C232NG1
  • Calibration certificate ISO9000
  • User manual


Recommended options

  • IMP57: accessory for Loop impedance with high resolution
  • 2530-02: remote control keyboard
