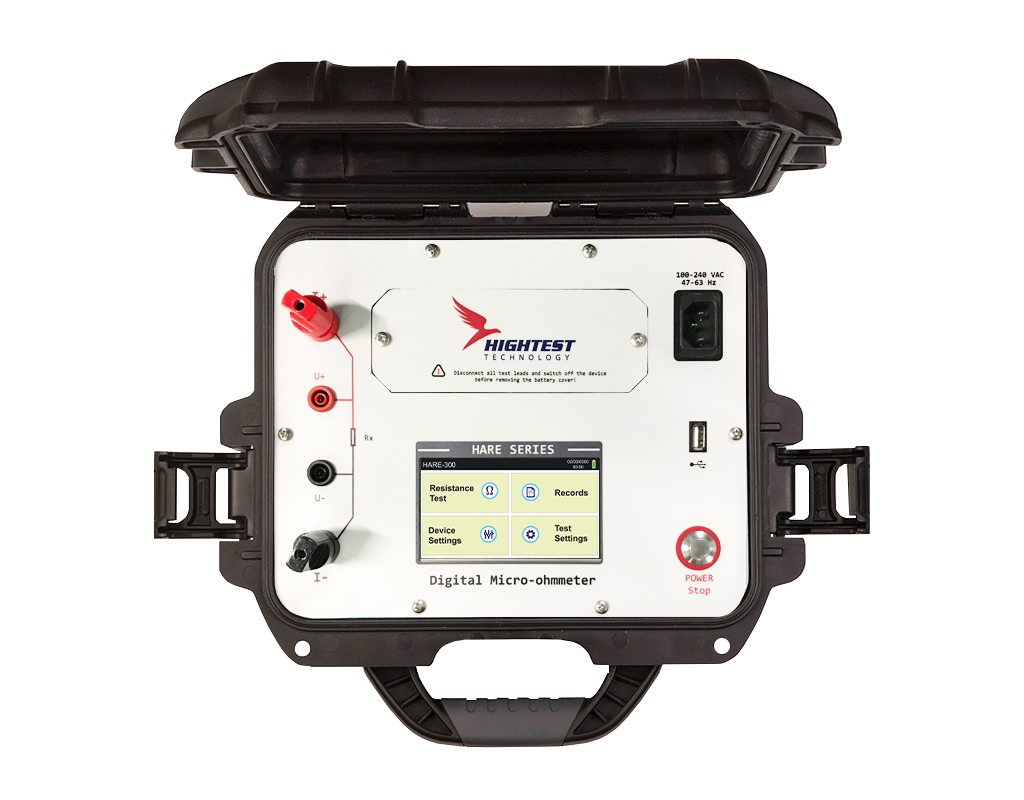

HIGHTEST HARE Contact Resitance Tester circuit breaker, shunt, disconnector

Code: HARE-100 HARE100 HARE-200 HARE200 HARE-300 HARE300



Datasheet PDF, 1.56 Mb


Description

HARE-100 100A DC Hand-Held Micro-Ohm Meter
HARE-200 200A DC Hand-Held Micro-Ohm Meter
HARE-300 300A DC Hand-Held Micro-Ohm Meter

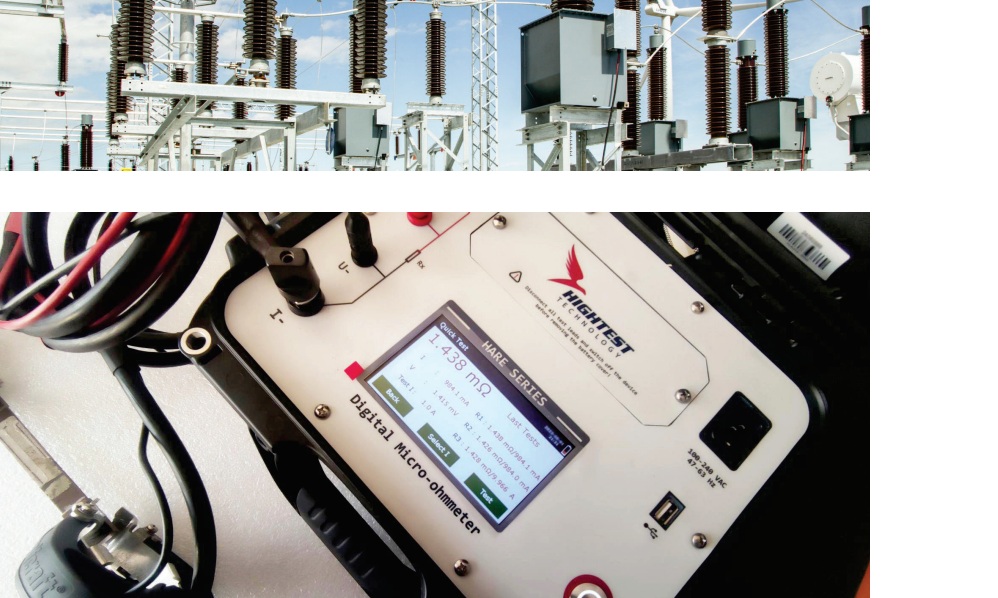

HARE Series is a micro-ohmmeter manufactured by using advanced engineering technologies which can apply up to 100A/ 200A/ 300A test current. With its easy-to-use software, HARE Series can easily measure contact resistance of circuit breaker, shunt and disconnector by applying adjustable test current up to 100A/ 200A/ 300A depending on the model. HARE Series can measure from 0.1 uOhm to 5 Ohm and is capable of measuring static resistance of the circuit breakers contact points. HARE Series can also measure idle circuit breakers. The 4.3-inch colour touch screen displays all measurement results on a single screen. With a user-friendly interface, the HARE Series guides operators to perform tests quickly. HARE Series flash memory feature allows storing around 1000 records. Users can copy test records by using a USB drive. HARE Series is a very compact, rugged device with IP67 protection class (case closed) which weighs only 3 kg.


FEATURES

  • Portable Contact Resistance Tester

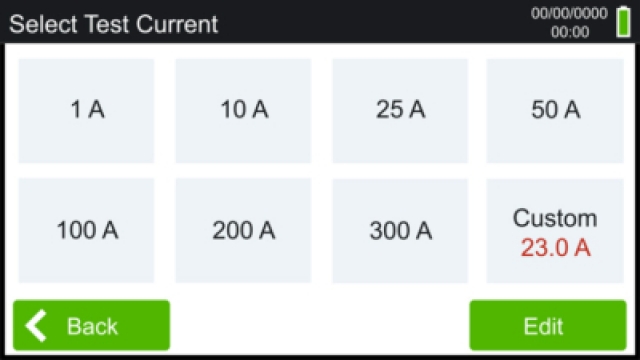

  • 0.4A to 100A Adjustable test current (HARE-100)
  • 0.4A to 200A Adjustable test current (HARE-200)
  • 0.4A to 300A Adjustable test current (HARE-300)
  • Up to 5 Ohm resistance measurement
  • 0.1 uOhm resolution
  • Automatic discharge
  • High EM interferences protection
  • Battery-powered
  • Ultra-fast measurement
  • Light-weight
  • 4.3 Resistive touch colour display (visible under sunlight)

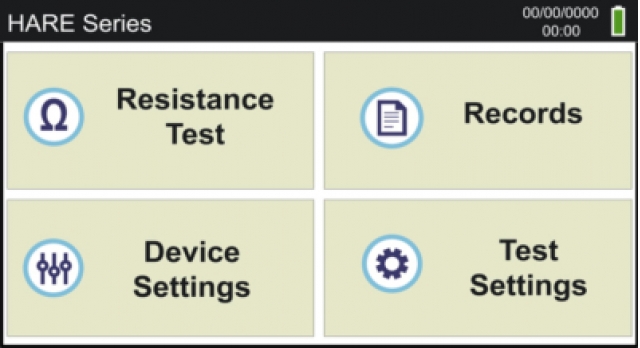

  • User-friendly operation menu
  • Internal memory
  • USB Flash DriveIP67 Protection case

Technical Specifications

Measurement ParameterContact Resistance
Adjustable Test Current0.4A to 100A (HARE-100)
0.4A to 200A (HARE-200)
0.4A to 300A (HARE-300)

Power Supply100-240 V 47/63 Hz (to charge the smart battery)
BatteryYes
MemoryUp to 1000 records
Test PlanUp to 6 plans
CommunicationUSB 2.0/1.1 Standard-A (Only to insert USB Stick)
Built-in Bluetooth
PC SoftwareDMP Software (Reporting only)
Display4.3-inch TFT touch display
Dimensions  (318 mm x 257 mm x 152 mm )
Weight3 kg
Working Temperature-10 °C to + 60 °C
Storage Temperature-30 °C to + 70 °C
Humidity95% RH non condensing
Protection ClassIP67 (case lid closed)



Standard accessories

Set of PackageHARE device, Rechargeable Battery, Power Cord, 3m Measurement Cable Set,
USB Stick, User Manual (Softcopy), Factory Test Report


More products HIGHTEST

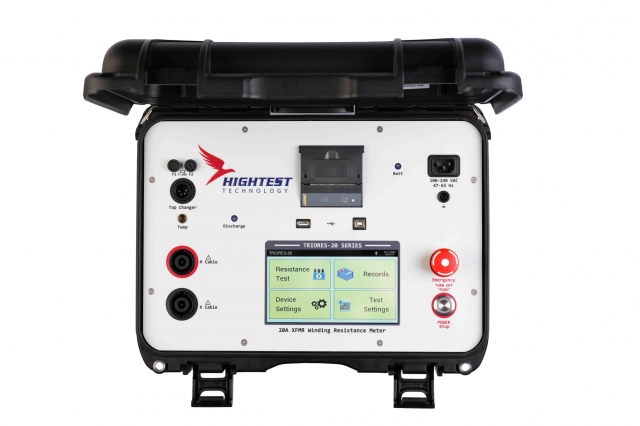

HIGHTEST TRIORES-20 TRANSFORMER WINDING RESISTANCE TESTER

• Fully Automatic Three-phase and single-phase resistance measurement with three-phase cable configuration
• Measurement range, 0.1 uOhm to 100,000 Ohm
• 0.001 A to 20 A DC adjustable current output
• High accuracy (0.1%)
• Test Voltage 50 V
• Demagnetisation feature

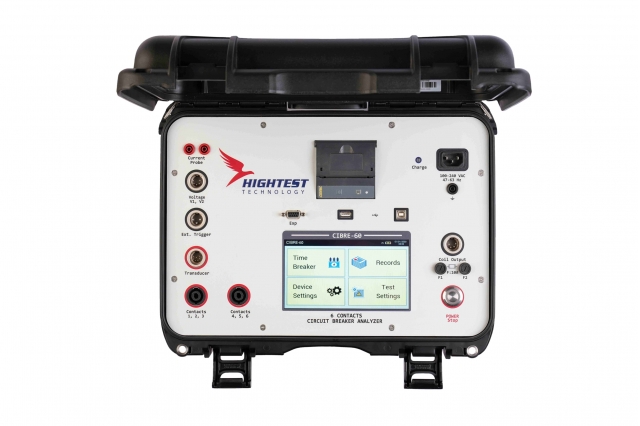

HIGHTEST CIBRE-60 6-CONTACT TIMING CIRCUIT BREAKER ANALYSERS

• Contact Timing (O, C, O-C, C-O and O-C-O)
• Motion Tests (Transducer Speed, Stroke, Bounce)
• 6 Dry Contact Inputs
• Timing Accuracy: 0.05% rdg ± 0.1 ms
• Timing Windows: 1s, 10s & 20s
• 7TFT Touch Colour Display

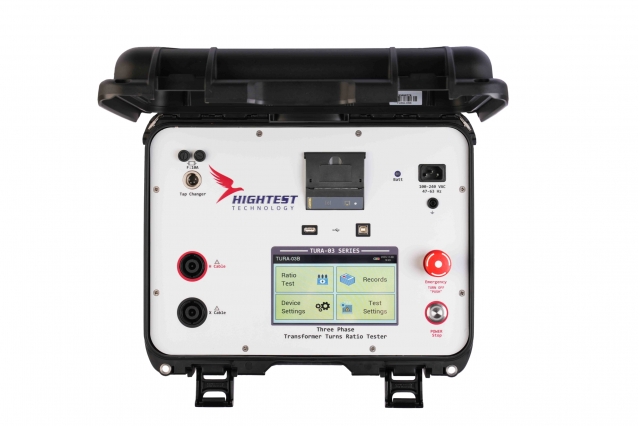

HIGHTEST TURA-03 TURN RATION TRANSFORMER TESTER TTR

• Turns Ratio Measurement (Single-phase and three-phase measurement)
• Ranges from 0.8 to 50,000 ratio measurement
• High Accuracy (0.08 %)
• 1V, 4V, 10V, 40V, 100V and 250V AC test voltages


HIGHTEST CIBRE-L6 CIRCUIT BREAKER ANLAYZER

• Contact Timing (O, C, O-C, C-O & O-C-O)
• 6 Dry Contact Inputs
• Timing Accuracy: 0.05% rdg ± 0.1 ms
• Timing Windows: 1s, 10s & 20s
• 2.25” Built-in Printer
• 4.3” TFT Touch Colour Display

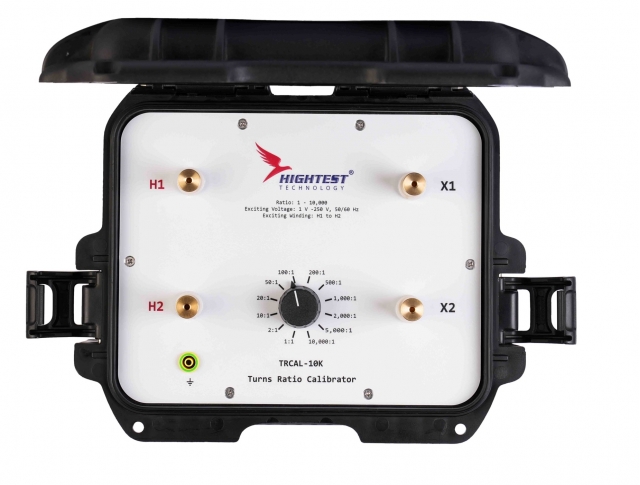

HIGHTEST TRCAL-10K TURN RATIO METER CALIBRATOR

• Ratio Range 1 to 10,000 (1:1, 2:1, 5:1, 10:1, 50:1, 100:1, 200:1, 500:1, 1,000:1, 2,000:1, 5,000:1, 10,000:1)
• Exciting Voltage Range 1 V -250 V
• Exciting Windings H1-H2 Windings

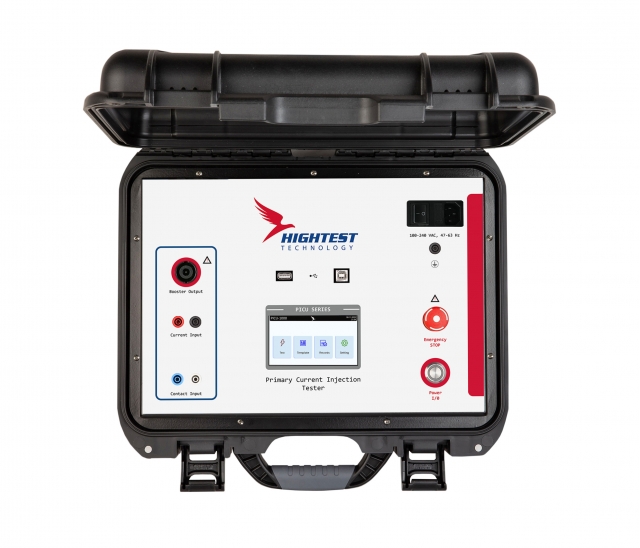

HIGHTEST PICU-1000 PRIMARY INJECTION CURENT SET 1000A

• High Current Capability Continuous output up to 1000A for primary injection applications.
• Multi-Purpose Testing Suitable for testing Protective Relays, MCCBs (Moulded Case Circuit Breakers), and CT Turns Ratio.
• Accurate & Reliable Provides precise measurement of current and operating time.
• Rugged & Portable

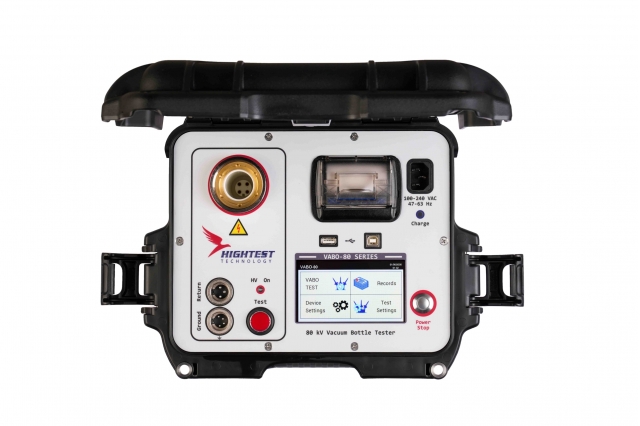

HIGHTEST VABO-80 VACUUM BOTTLE TESTER FOR TESTING CIRCUIT-BREAKER VACUUM INTERRUPTER

• Circuit Breaker Vacuum Bottle Interrupter Testing
• Electrical Safety Gloves Integrity Test
• Automatic Testing
• 10 kV to 80 kV DC with 1 kV step voltages
• High Accuracy (1.5 %)
• 100 μA, 200 μA and 300 μA leakage current preset value

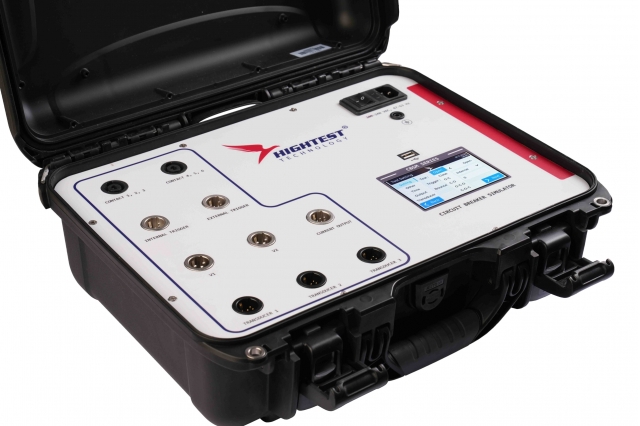

HIGHTEST CBSM

• Contact timing channels 6 contact timing channels; Accuracy: 0.01 ms
• CT timing channel 1 CT timing channel, 500 mA, Accuracy: +-0.5 ms
• Digital transducer channels 3 digital transducer channels; Accuracy: 0.02
• V1 voltage channel 20 Vrms
• V2 voltage channel 30 Vdc
• Internal trigger channel 2 A
• External trigger channel 24 Vdc

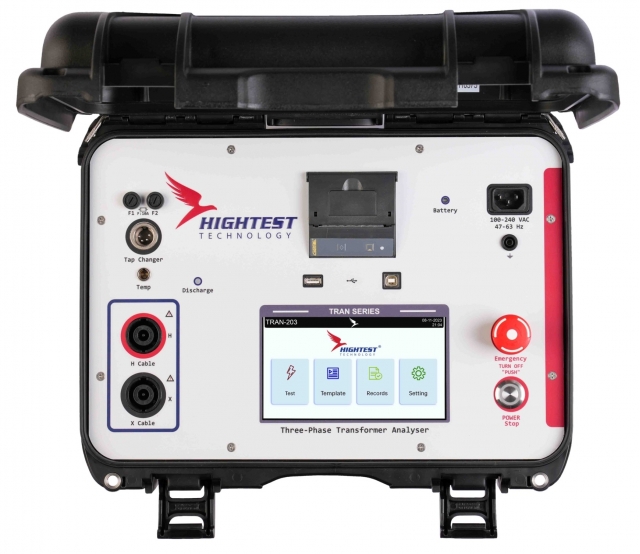

HIGHTEST TRAN-203 TRANSFORMER ANALYZER FOR TURN RATION AND WINDING RESISTANCE TESTING

• Turns ratio measurement (Single-phase & Three-phase)
• Winding resistance measurement (Single-phase & Three-phase)
• Heat run test/Temperature rise test
• Magnetic Balance Test

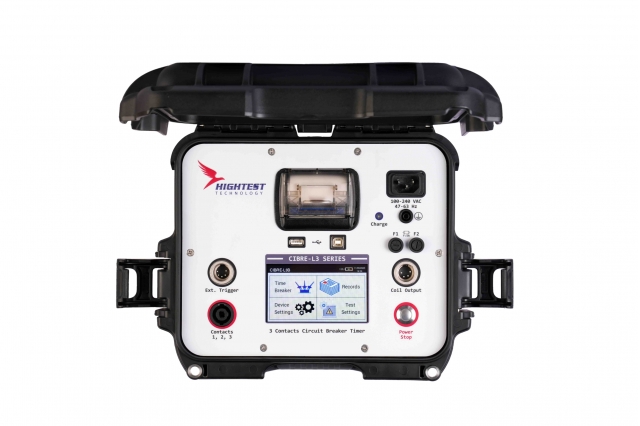

HIGHTEST CIBRE-L3 CIRCUIT BREAKER ANALYZER
