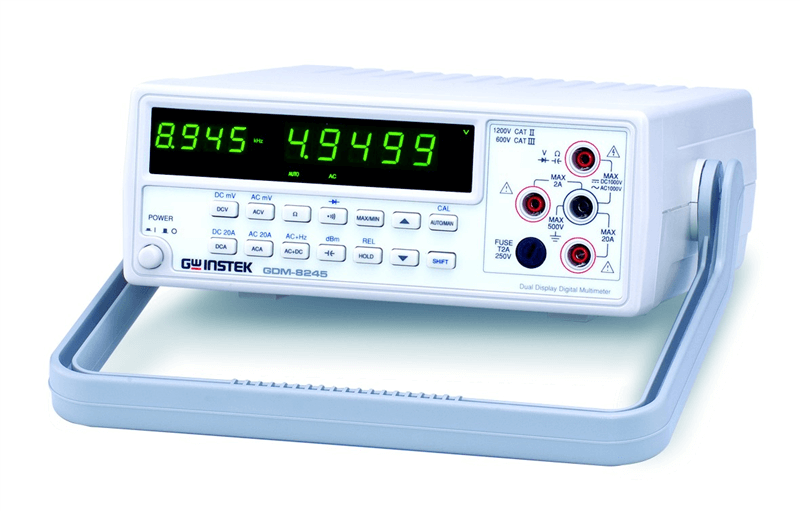

GOODWILL INSTEK GDM-8245

Code: GOODWILL INSTEK GDM-8245




Datasheet PDF, 0.38 Mb

Description

The GDM-8245 is an economical bench-top DMM equipped with a rich set of features. The GDM-8245 has similar functions to those of GDM-8246, but with slightly reduced DCV accuracy and no communication interface. The large 7 segment LED dual display features up to 50,000 counts and the ability to show two measurements at once: ACV plus frequency or dBm, DCV plus dBm or ACV ripple. The GDM-8245 carries an extensive list of measurement items - DC Voltage/Current, AC Voltage/Current with true RMS, Resistance, Capacitance, Frequency, Continuity (with beeper), Diode Test, and dBm. Additional measurement functions, such as Max/Min, Hold and Relative value. With great range, good accuracy and ability to accept up to 20A of current, the GDM-8245 is the perfect general purpose DMM.



Features:

  • 50000 Counts Display
  • Multi-Function : ACV, DCV, ACA, DCA, R, C, Hz, Continuity Beeper, Diode, Test, Max/Min, REL, Hold, dBm
  • Dual Display Indicate ACV and Hz,or DCV(ACV) and dBm
  • Manual or Auto Ranging
  • 0.03% DCV Accuracy
  • ACV Measuring Frequency Up to 50kHz
  • AC True RMS or AC + DC True RMS
