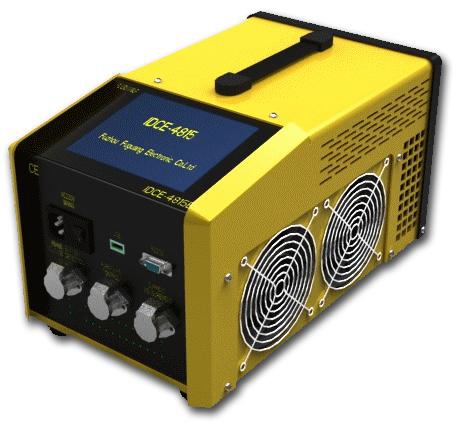

UPS Battery Discharger & Capacity Tester Fuguang IDCE-4815CT MINI

• Wide voltage range battery discharger: 10V to 300V
• 5.7 inch LCD touch screen for easy operation
• Selectable discharge mode: constant current/power/ resistance
• 4 adjustable stop points and multiple alarm
• Support RS232 real time monitoring by PC or USB
• Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring



• Total online constant current discharge
• Total online intelligent charge
• Cells voltage monitoring & recording
• The rest capacity analysis
• Support to set multiple stop thresholds
• 5.7 inch colorful LCD screen
• Smart data analysis software



• battery discharge, battery charge and battery activation
• ABE-2612CTE can set up 9 cycles of discharge/charge
• 5.7 inch colorful LCD touch screen
• battery resistance test function
• USB and RS232 port
• Intelligent software



• Online Anti-sulphurized Protection
• Online Anti-sulphurized Recovery
• No interruption to any working devices
• High energy converting efficiency, low power consumptionand heat
• No interference, output pulse ripple to actual load below 0.5%



• For 48V/24V DC battery groups discharge test
• 5.7 inch LCD touch screen for easy operation and showing various parameters
• real time
• 4 adjustable stop points and multiple alarm designs to control the discharge
• process intelligently
• Support RS232 real time monitoring by PC or USB



• Adopt wireless unit monitoring technology
• support 2V/6V/12V unit voltage monitor
• 8M internally stored program, allow saving multi-group discharge data
• Smart data analyses software
• Report paper includes single voltage, total voltage, current, capacity, data form
• Can general EXECL report automatically



• Battery Unit Number: 14units
• Sampling Interval: 6s
• Battery Voltage Range: 2V/6V/12V
• Individual Test Accuracy: 0.5%
• Current Test Range: 0~3000A
• Current Accuracy: 1%
• Data Port: USB, RS232
• Wireless design, easy and quickly



• online discharge, offline discharge, online charge, online monitor
• Intelligent dealing on commercial power abnormal
• Adopt wireless unit monitoring technology
• 5.7 inch big colored display
• Charge current auto-calculate
• Huge internally stored program
