Brand: Fuguang

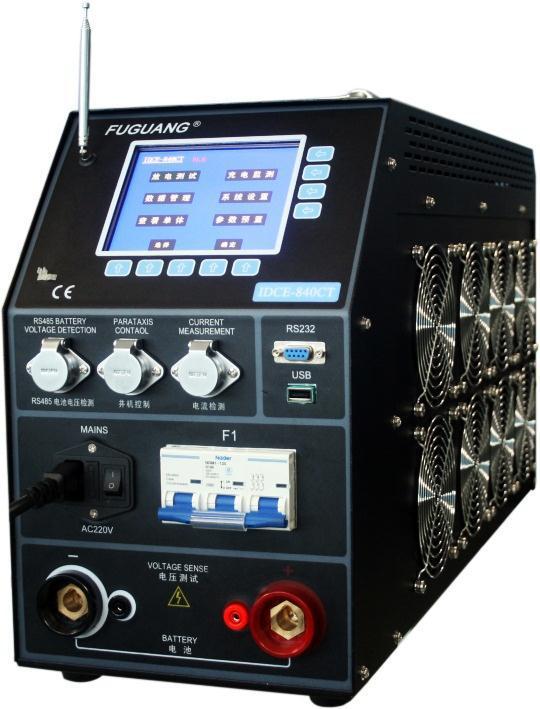

Battery Discharger & Capacity Tester Fuguang IDCE-840CT

Code: Fuguang IDCE-840CT



Datasheet PDF, 0.73 Mb


Description

  • Wide voltage range battery discharger: 10V to 300V

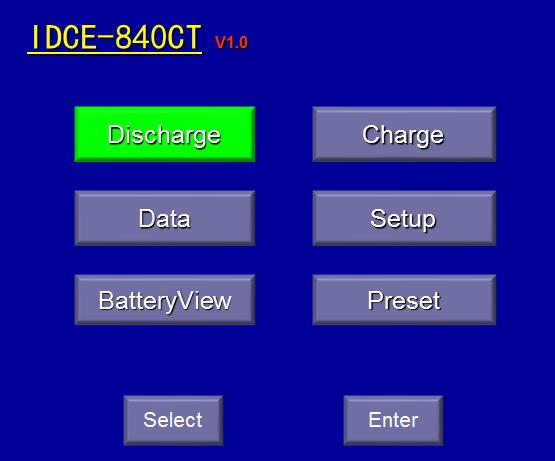

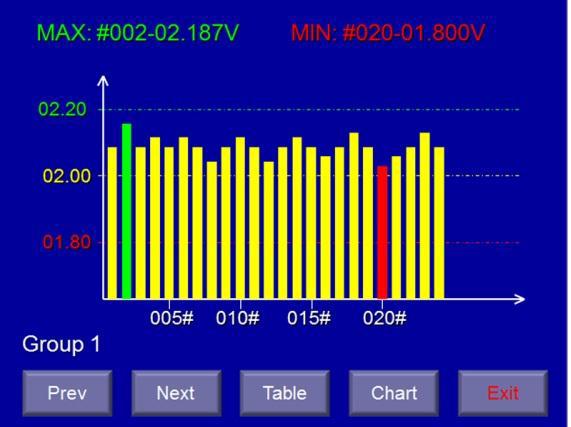

  • 5.7 inch LCD touch screen for easy operation and showing various parameters real time
  • Selectable discharge mode: constant current/power/ resistance

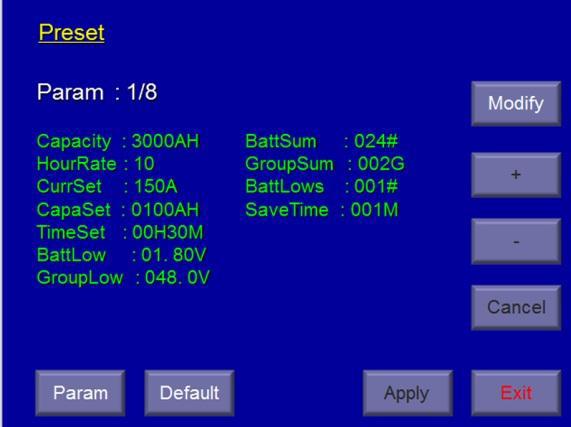

  • 4 adjustable stop points and multiple alarm designs to control the discharge process intelligently

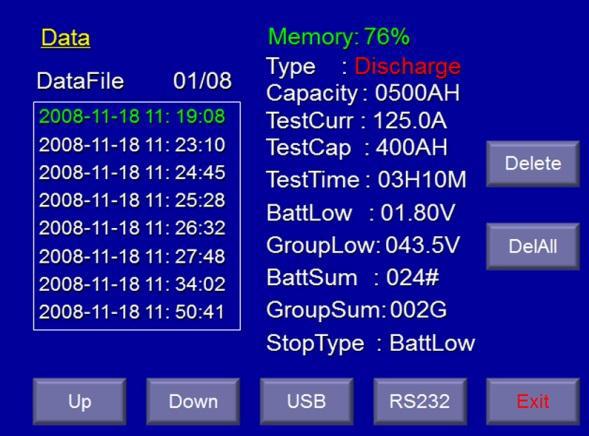

  • Support RS232 real time monitoring by PC or USB download data after discharge

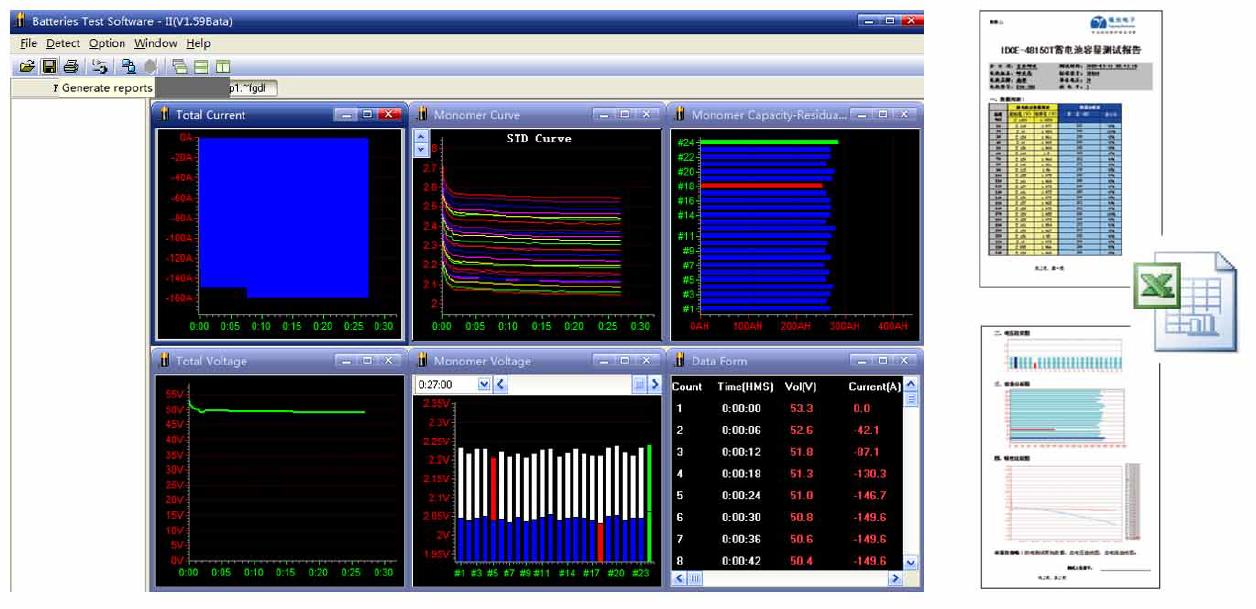

  • PC software for capacity evaluation and report generation

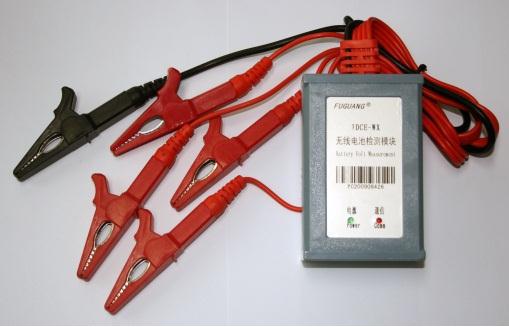

  • Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring


Standard accessories

Carry case

1x 280 x 640 x 750 mm, 13 kg

Power cable

2 x 3 m cables 50 mm2

AC power cord

1 x 3 wires x 1 mm2

Software

1 x CD-ROM

RS232 wire

1

User manual

1

USB disk

1 x 2GB

Current clamp

1 x 200Aor 600A(Optional)



Recommended options

IDCE-AS

PC analysis software

IDCE-200CC

200A current clamp

IDCE-600CC

600A current clamp

WX-2612

Wireless module for 2V/6V/12V

WX-12612

Wireless module for 1.2V/2V/6V/12V

YX-12612

cable module for 1.2V/2V/6V/12V
