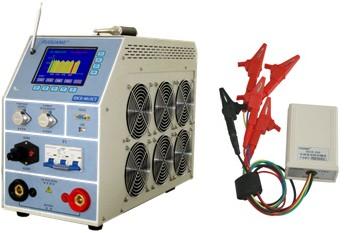

Battery Discharger & Capacity Tester Fuguang IDCE-CT

Description

• Adopt wireless unit monitoring technology, support 2V/6V/12V unit voltage monitor
• Each wireless monitor module can test four units together at the same time, compare those each module just test one unit voltage, the needed number of module allocate just a forth, much easier for wireless connection operation.
• The current continuously adjustable, automatically keep constant. The internal discharge current automatic calculating function support calculate discharge current which is needed to setup by standard battery capacity and within the needed discharge time.
• Allow to setup four kind of closing-down threshold: battery group voltage, unit current, discharge time, and discharge capacity; if closing down, the LCD will display the cause with alarm sound.
• Allow to merge a lot smart constant expansion module, meet the higher discharge current.
• Using aero metal electric heating for power consumption part, high electric heating transfer efficiency, high security, small, light.
• Charge current auto-calculate: the discharge parameter can be auto-calculated the group required discharge current by battery standard capacity and user’s required test time, and all the capacity by battery discharged will be auto-calculated into C10.

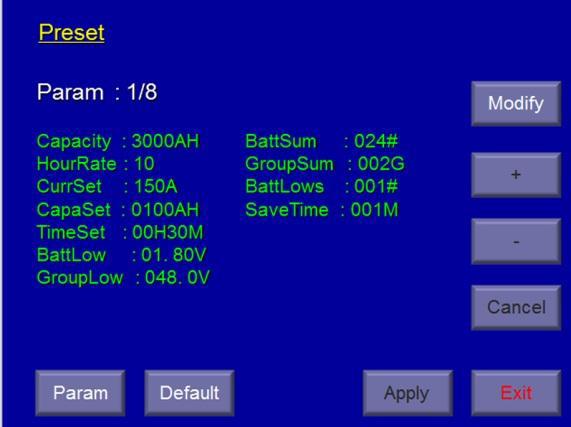

• Discharge parameter setups in advance, allow to ex-setup no more than nine kind of discharge parameter internal, which reduce to re-setup the discharge parameter in many situations that much convenient operation. Also allow to modify any ex-setup parameter any time.
• Intelligent discrimination program, the instrument can distinguish whether the unit monitor is reach the threshold or just the clip loosen automatically, which keeps test trouble-free.

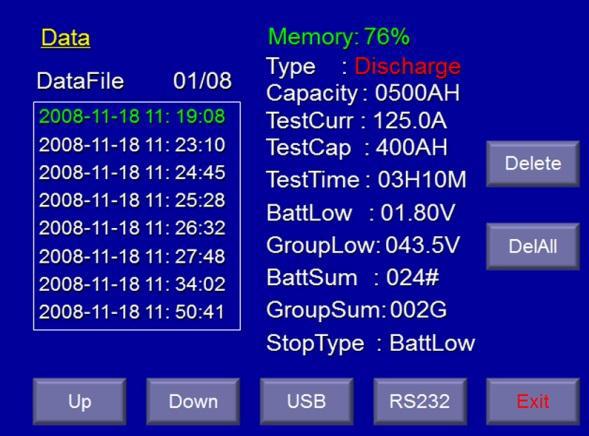

• 8M internally stored program, allow saving multi-group discharge data.
• Allow to connect PC during discharging, real-time receive the discharge data, also allow to copy the discharge data for analyses by USB to PC, and then generate report.
• Smart power supply: adopt AC & DC two ways for supply

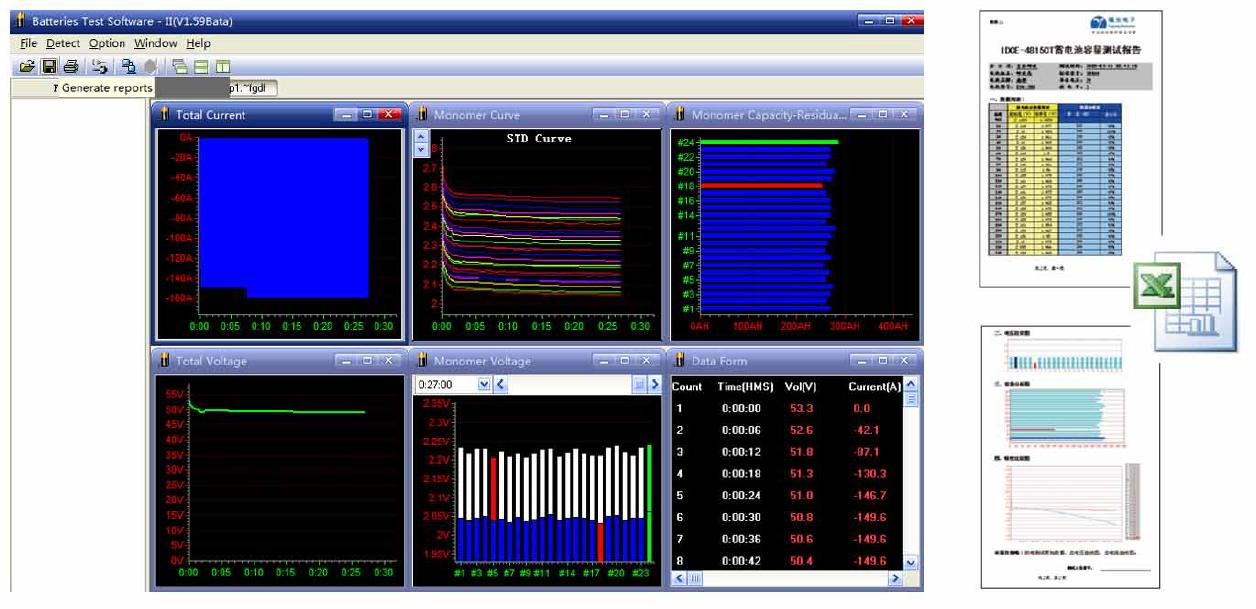

• Smart data analyses software
• Download the discharge parameter into PC by USP
• Report paper includes single voltage, total voltage, current, capacity, data form.
• Powerful capacity forecast evaluate function, be able to evaluate the group capacity within shot time

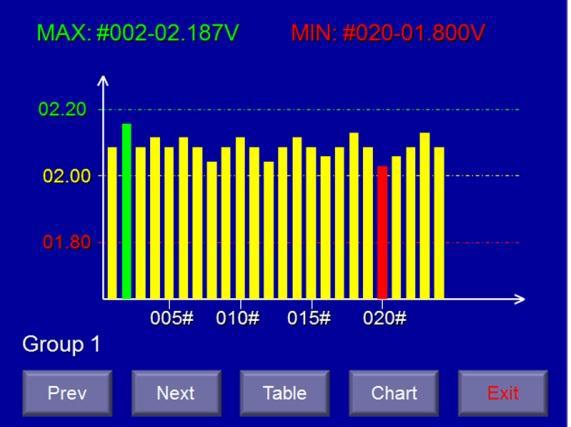

• Display the data by column, report, and curve, also can be enlarged and minified partly, for read conveniently.
• Can general EXECL report automatically, convenient for sending or upload data.
