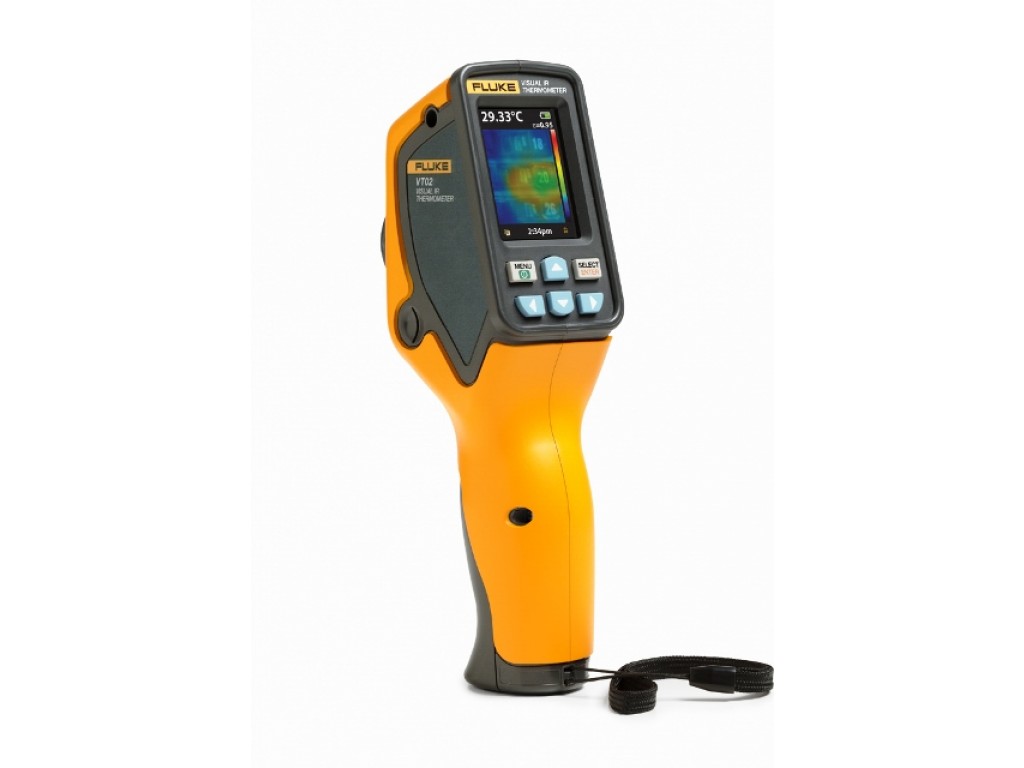

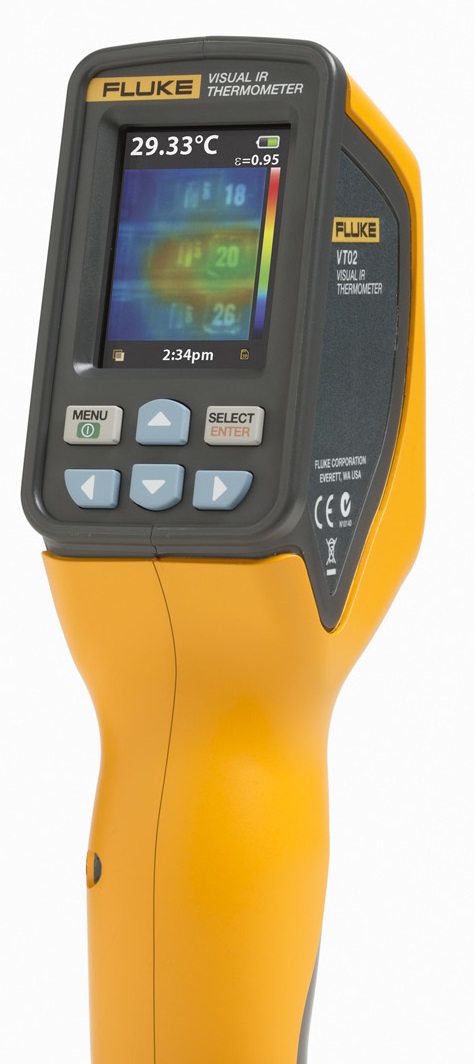

Fluke VT02 Infrared Thermometer with Integrated Camera

Code: Fluke VT02 FLK-VT02




Datasheet PDF, 2.3 Mb


Description

Measure with confidence

Because traditional infrared thermometers only measure an average area, it is often impossible to accurately identify what you are actually measuring; with the Fluke VT02 Visual Thermometer you get the visual image of exactly what you are measuring.



Detect issues instantaneously

Lose the pen, paper, and clipboard, the Fluke VT02 saves a blended infrared and visual image with every image capture instantly! In one blended picture your customers get the complete picture and can compare readings from different dates which saves them valuable time and ultimately money.

The Fluke VT02 has a NEAR/FAR feature that is not available on other products. The NEAR/FAR is exclusive to Fluke Visual IR Thermometers and allows the user to take simultaneous visual images with the thermal heat map images that are accurately aligned close in, = 23 cm ( 9 in), with the NEAR feature, as well as beyond with the FAR feature. No other product can boast this NEAR visual and thermal heat map alignment feature that allows you to get close-in and document the exact location of the issue.





Pinpoint with hot and cold markers

Quick and easy detection with hot and cold trackers allow you to pinpoint the temperature source. When you see a hot or cold spot, you can save the image with the temperature reading and pinpoint the exact location using the blending between full thermal to full visual.



Document problems with SmartView® software - a brilliant way to sell yourself

Producing a professional report with Smartview® Software is just as powerful as the VT02 tool itself. Your customers will be able to communicate the issues that they've detected or document repairs that have been fixed.



Troubleshoot efficiently

The greatest technological advancement may be how Fluke has made it so simple to capture and blend images. Compact and intuitive, the Fluke VT02's point & shoot focus free design starts finding problems right out of the box with little to no training required.

Expand diagnostic services with the Visual Infrared Thermometer. The first to find the problem is oftentimes the first in line to fix the problem. Telling someone they have a problem is not nearly as convincing as proving your point with a visual image blended with a thermal heat map. With the striking affordability of the VT02, your clients can add a high margin service and move from buying one thermal imager for their company to a business expanding tool for each associate.







Temperature

Temperature measurement range

-10 °C to +250 °C (14 °F to 482 °F)

Temperature measurement accuracy

±2°C or ±2% of reading in °C, whichever is the greater (at 25 °C nominal) as tested

On-screen emissivity correction

Yes

On-screen reflected background temperature compensation

Yes

Imaging performance

Image capture frequency

8 Hz

Detector type

Uncooled Hyperthin Pyroelectric Ceramic

Infrared spectral band

6.5 µm to 14 µm

Minimum focus distance

50 cm (19.6 in)

Field of View

20° X 20°

Image presentation

Palettes

Ironbow, Rainbow, Rainbow High Contrast, gray scale and inverted gray scale.

Level and span

Auto

Viewing options

Blending of the visual and the infrared from full infrared to full visual in 25% steps.

Hot spot and cold spot tracking

Yes

Image capture and data storage

Image capture

Image will freeze allowing review before saving.

Storage medium

4 GB Micro SD card (stores well over 10,000 individual images).

File format

.is2 format saved to SD card. When imported to included SmartView® reporting software user can create professional reports or images can be exported into multiple formats (BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF AND TIFF).

Memory review

Scroll through all saved images and view on screen.

General Specifications

Operating Temperature

-10 °C to +45 °C (14 °F to 113 °F)

Storage Temperature

-20 °C to +60 °C (-4 °F to 140 °F)

Relative humidity

10 % to 90 % non-condensing

Display

2.2 in diagonal

Controls and adjustments

Select color palette User selectable temperature scale (°F/°C) Time/date set Emissivity selection Reflected background temperature compensation

Software

SmartView® analysis and reporting software, included

Batteries

4 AA

Battery life

8 hrs

Power saving

Power down after 10 minutes of inactivity.

Electromagnetic compatibility

CE EN61326-1:2006

US FCC

CFR47: 2009 Class A. Part 15 subpart B.

Drop

MIL-PRF-288000F; Class 2 section 4.5.5.4.2; 30cm

Size (H x W x L)

21cm x 7.5cm x 5.5cm (8.3in x 3in x 2.2in)

Weight (battery included)

<300 gm (10½ oz)

Warranty

2 years

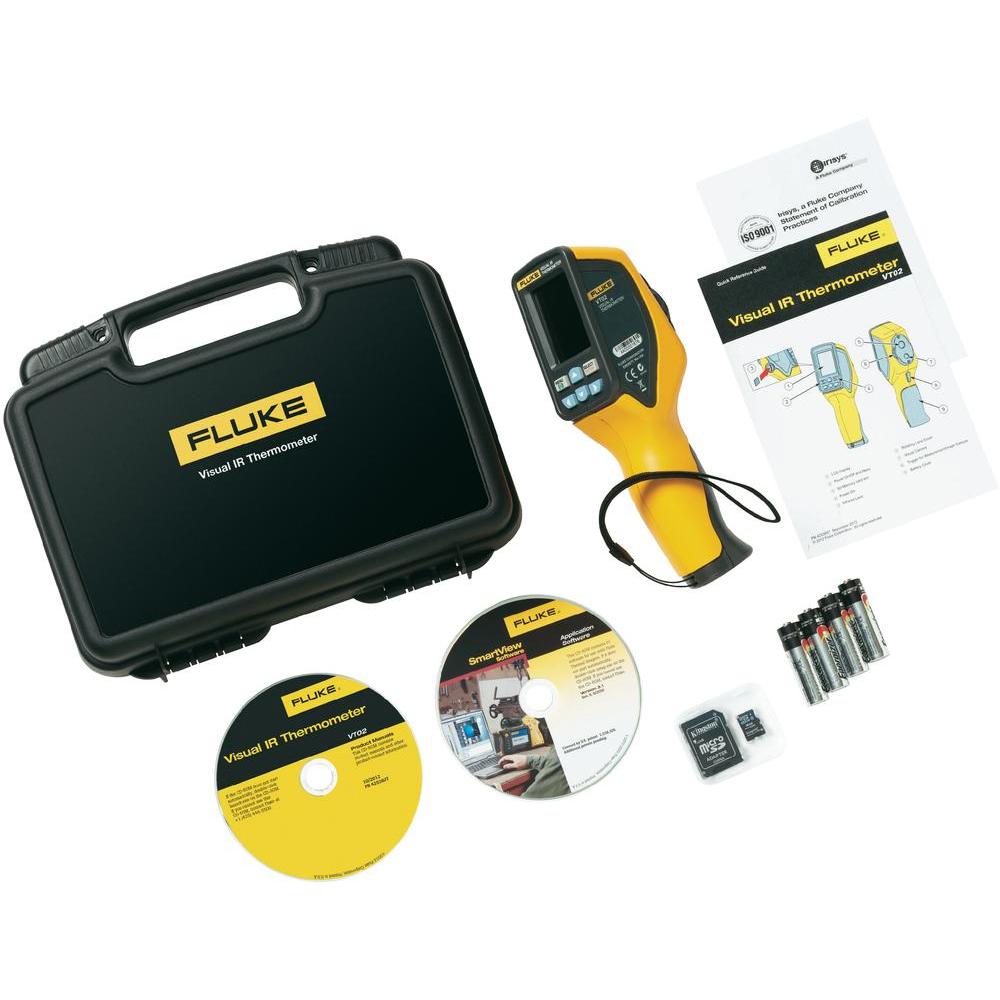

Standard accessories

  • VT02 Visual IR Thermometer
  • Hard case
  • Micro-SD card
  • Micro-SD conversion adapter to standard
  • AA Batteries (4)
  • Lanyard
  • Printed Quick Start guides (EN, FR, DE, ES, Simplified Chinese)
  • SmartView® analysis and reporting software CD
  • Manual and Quick Start Guide on CD (21 languages)


More products FLUKE

FLUKE 6303A LCR METER 1 KHZ

• 1 kHz test frequency
• 0.25% accuracy
• test signal level: 2V via 400O source

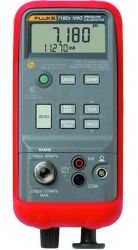

INTRINSICALLY SAFE PRESSURE CALIBRATOR FLUKE 718
