FLUKE 279 FC TRMS Digital Thermal Multimeter with termovision

Code: FLUKE 279 FC TRMS 279FC 279FC/iFlex




Datasheet PDF, 1.72 Mb


Description

See it. Save it. Share it.

Fluke 279 FC True-rms Thermal Multimeter helps you find, repair, validate, and report many electrical issues quickly so that you are confident problems are solved.



Locate the problem immediately

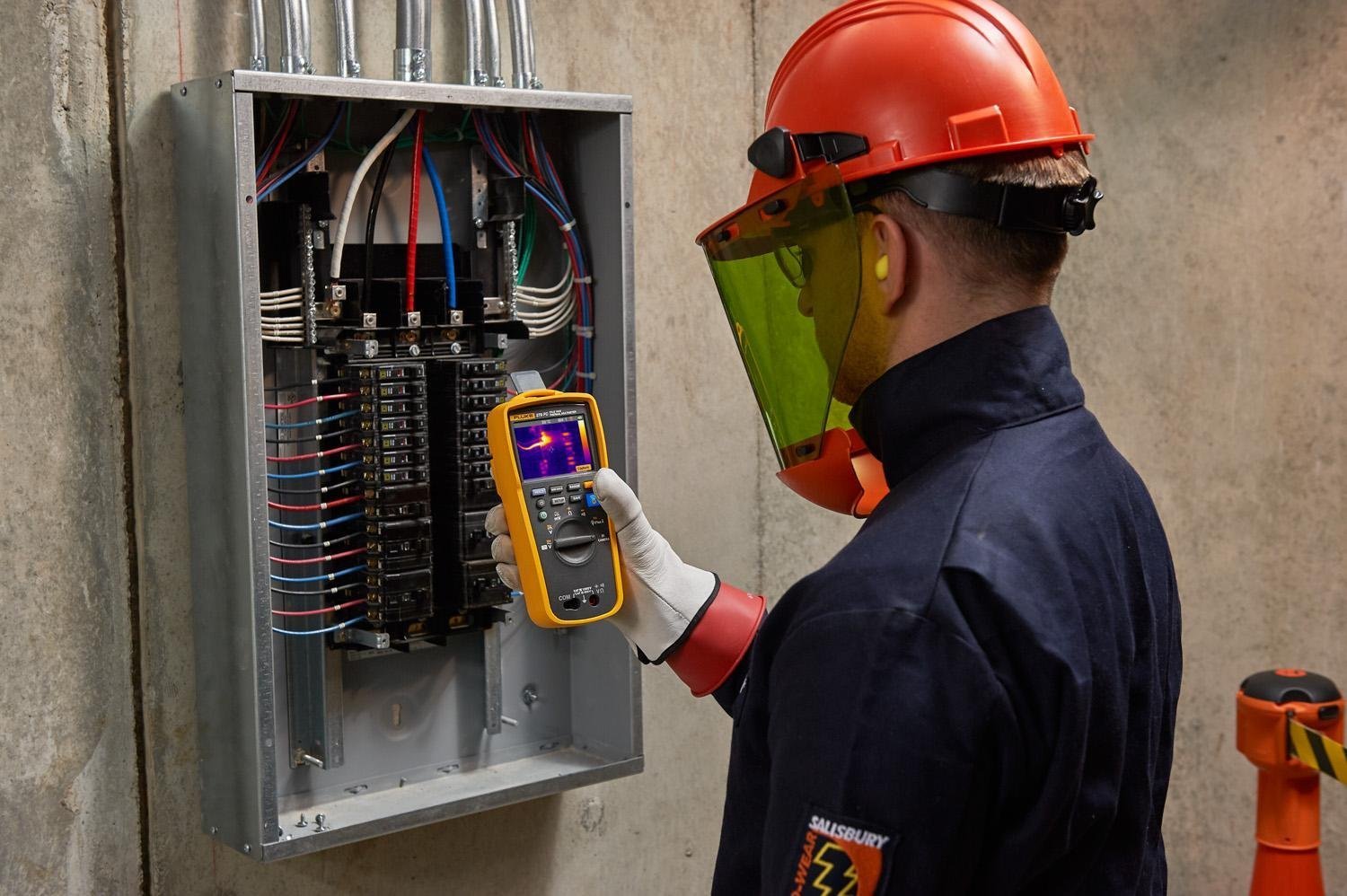

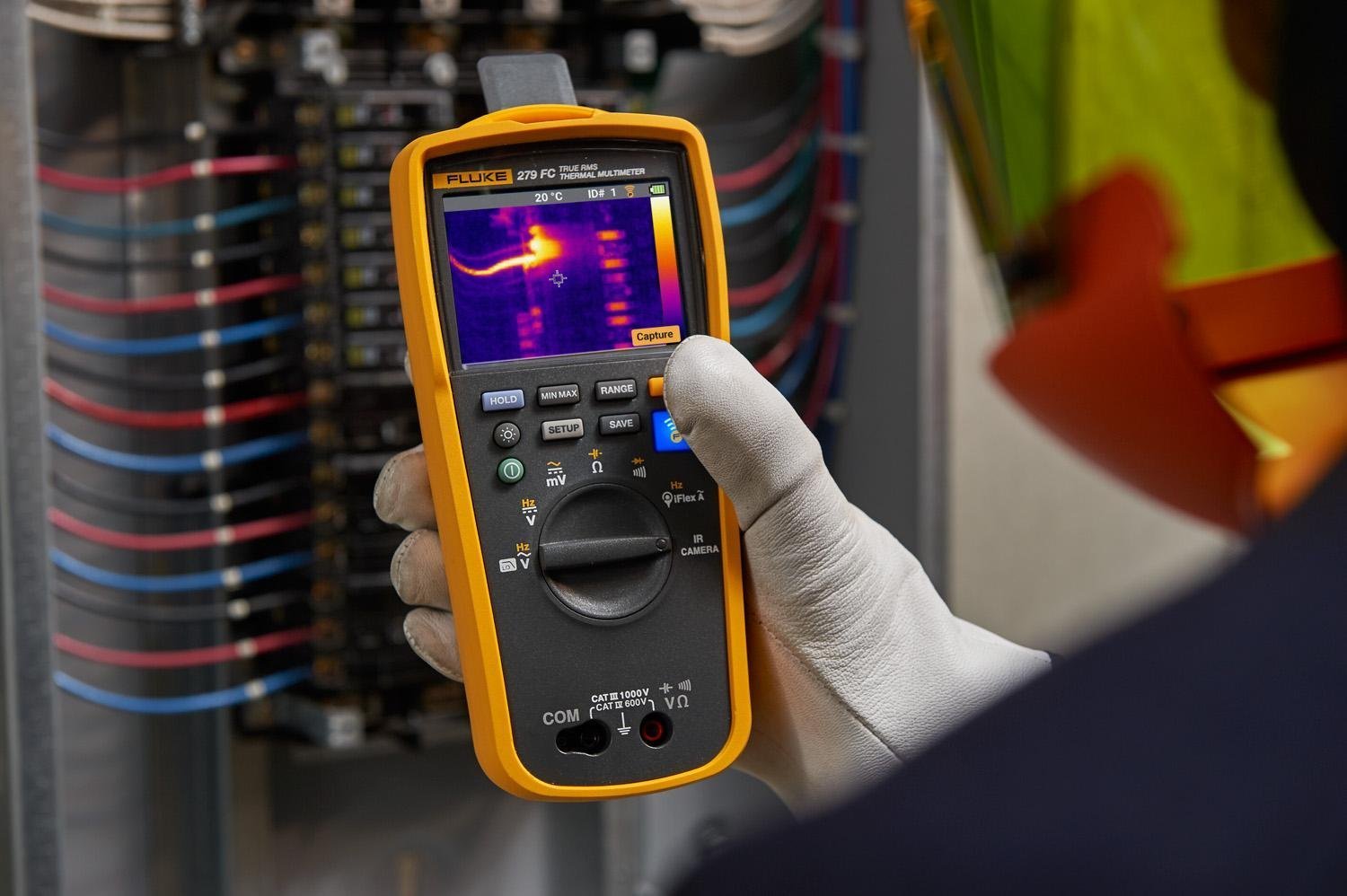

Thermal imaging multimeters are a first-line troubleshooting tool for electrical equipment that can check hot spots on high-voltage equipment and transformers, and detect heating of fuses, wires, insulators, connectors, splices and switches. Scanning with the 279 FC's thermal imager reveals many electrical issues rapidly and from a safe distance. By combining two tools into one, the thermal multimeter lightens the load and increases productivity.

Expanded functionality

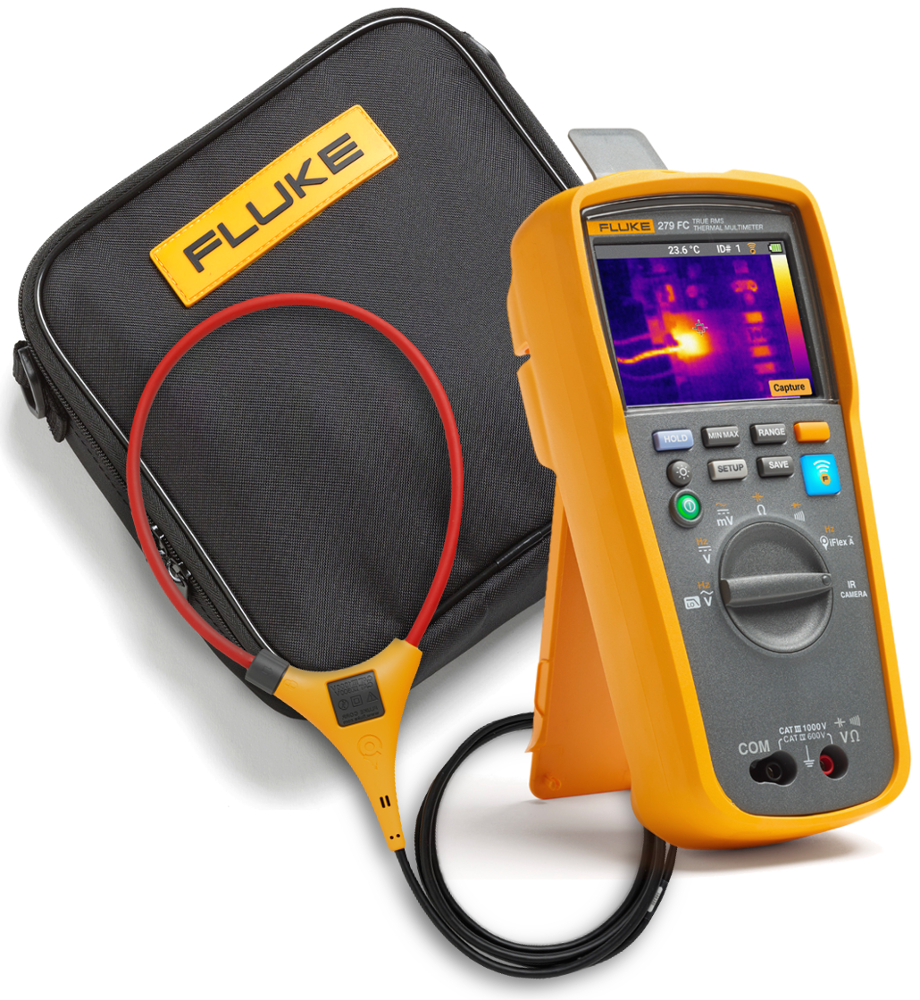

Compatible with iFlex® (a flexible current clamp) to expand your measurement capabilities and get into tight, hard to reach spaces for current measurement (up to 2500 A AC). The large full-color LCD screen makes for easier and clearer viewing of images and readings. The 10 hour+ rechargeable battery keeps you going all day long under normal conditions.

Communicate your results

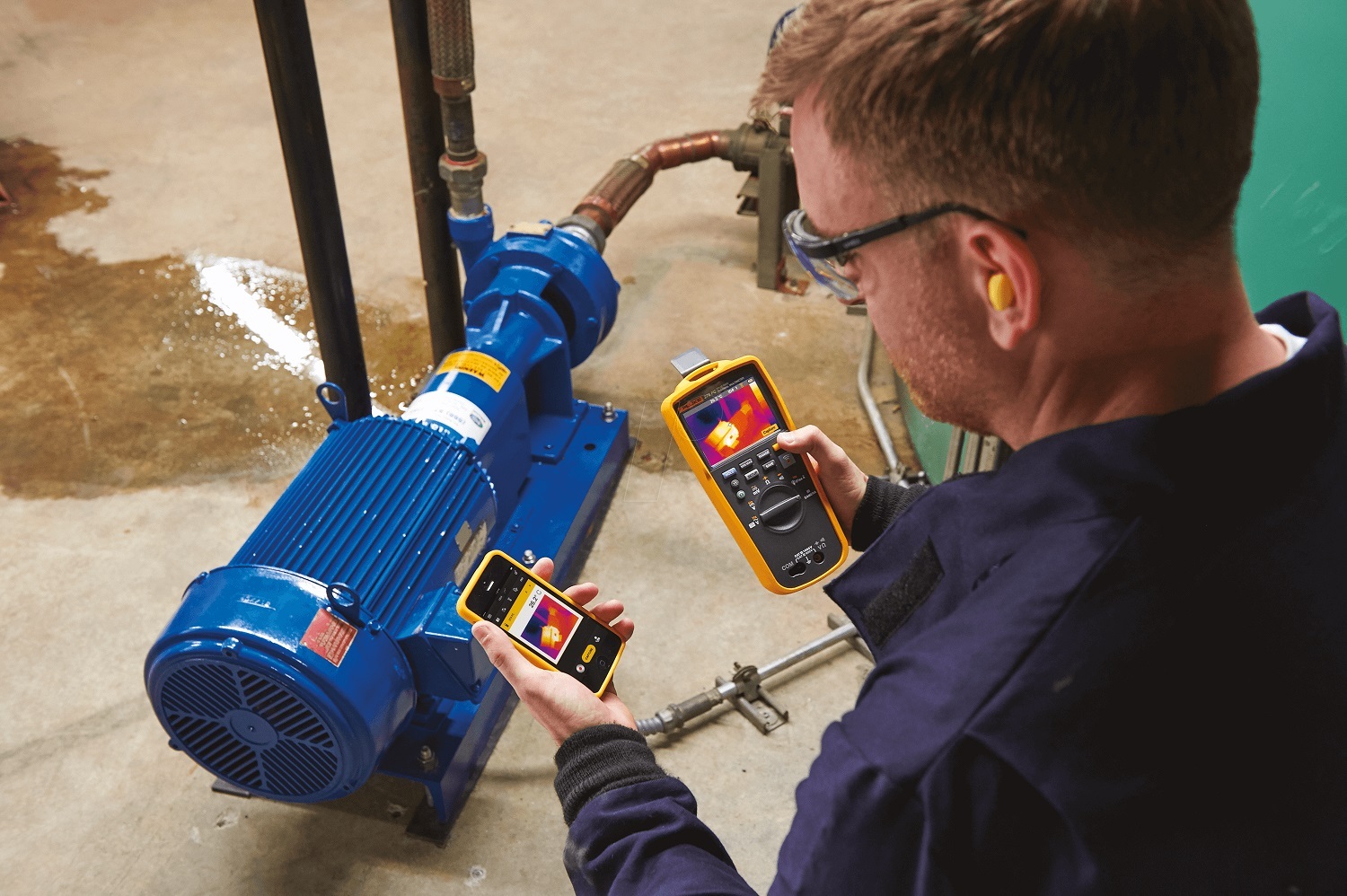

With built-in Fluke Connect®, transmit results wirelessly to a smartphone and save time on reporting to validate work is complete. Troubleshoot better by instantly trending and monitoring measurements live on your smartphone screen. Create and email reports right from the field.





  • Full-featured multimeter with built-in thermal imager
  • 15 measurement functions including: AC voltage with low-pass filter, DC voltage, Resistance, Continuity, Capacitance, Diode test, Min/Max/Avg, AC current (with iFlex), Frequency
  • Thermal imaging reveals many electrical issues quickly and safely, eliminating the need for time-consuming testing and validation
  • Two-in-one tool is designed to increase productivity - no need to go back to the truck or office to retrieve a shared camera or wait for the thermographer- do more in less time!
  • iFlex expands your measurement capabilities - get into tight, hard to reach spaces for current measurement (up to 2500 A AC)
  • Save measurements and images while communicating wirelessly with a smart phone up to 20 feet / 6.1 m away (no obstructions)
  • Image resolution-80 x 60
  • 3.5 in /8.89 cm color LCD screen
  • Rechargeable lithium ion battery allows for a for a full work day (10+ hours) under normal conditions
  • Assembled in the USA
  • Three year standard warranty
  • Auto power off to save battery power
  • CAT III 1000 V, CAT IV 600 V measurement category
  • Optional accessories: Fluke i2500-10 or i2500- 18 iFlex® Flexible Current Probes, Fluke BC500TDMM AC Power charger and Fluke BP500 Lithium-ion Battery 3000 mAh
  • Designed for durability, built to withstand a 3 m (9.8 ft) drop, double insulated with raised rubber holster for increased protection

Fluke Connect

Fluke Connect connects your meter to your phone through Bluetooth to help you get more done faster and safer

  • Save measurements and images while communicating wirelessly with a smart phone up to 20 feet / 6.1 m away (no obstructions)
  • Troubleshoot better by instantly trending and monitoring measurements live on your phone screen
  • Create and email reports right from the field. Report not enough? Fluke Connect has ShareLive video calls that stream live video and measurements in the same screen

Measurement capability

  • 1000 V ac and dc voltage measurement
  • Up to 2500 A ac current measurement (with optional iFlex)
  • Temperature measurement from -10 °C to 200 °C (14 °F to 392 °F)
  • Resistance measurement to 50 MO
  • Continuity
  • Diode Test
  • Min and max recording to capture variations automatically
  • Frequency
  • 9999 µF capacitance measurement
  • True-rms voltage and current for accurate measurements on non-linear signals

Other features

  • CAT IV 600 V , CAT III 1000 V measurement category
  • Rechargeable lithium ion battery and charger
  • Three-year warranty
  • Hanging strap (optional) allows you to conveniently hang the meter while using the probes
  • Soft carrying case (optional)


Standard accessories

odel Name

Description

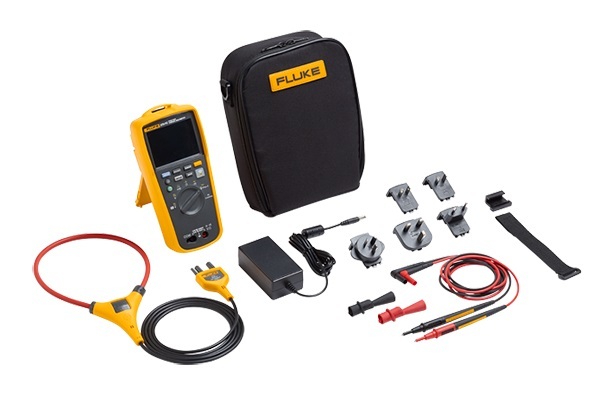

279 FC/iFlex TRMS

279 FC/iFlex TRMS Thermal Multimeter
Includes:

  • 279 FC TRMS Thermal Multimeter
  • (1 pair) TL175 test leads
  • 45.72 cm (18 in) iFlex flexible current probe
  • Rechargeable lithium ion battery and charger
  • Soft carrying case
  • Hanging strap

279 FC TRMS

279 FC TRMS Thermal Multimeter
Includes:

  • 279 FC TRMS Thermal Multimeter
  • (1 pair) TL75 test leads
  • Rechargeable lithium ion battery and charger


Recommended options

Current Clamps

i2500-10

i2500-10 iFlex® Flexible Current Probes

i2500-18

i2500-18 iFlex® Flexible Current Probes



Batteries, Chargers & Adapters

Fluke BC500

AC Power Charger

Fluke BP500

Lithium-ion Battery 3000 mAh
