Brand: FLUKE BIOMEDICAL

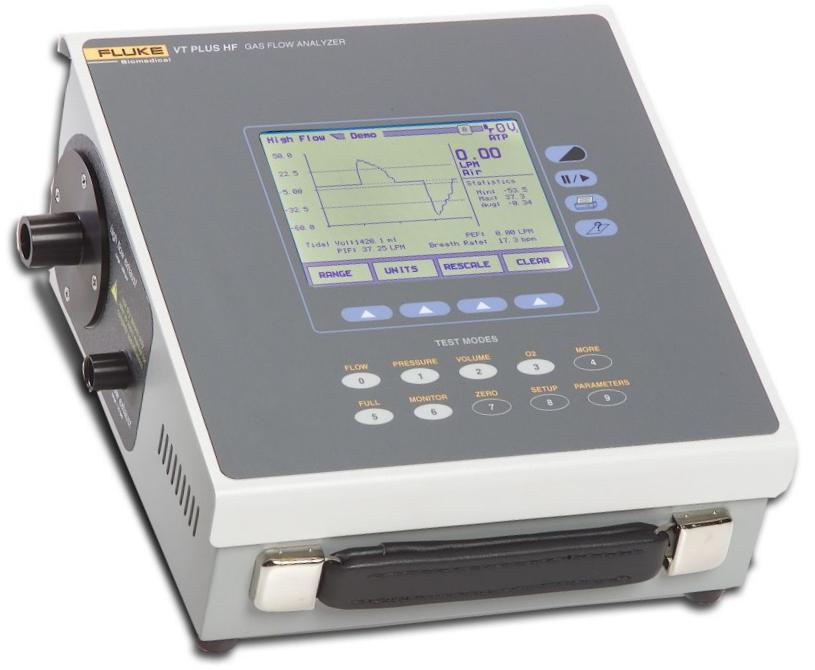

Air Gas Flow Analyzer Fluke Biomedical VT PLUS HF

Code: Fluke Biomedical VT PLUS HF




Datasheet PDF, 0.41 Mb


Description

  • Bi-directional flow, pressure, volume, and oxygen concentration, and pressure measurements
  • Low- and high-pressure, and flow measurement capability
  • Special HF mode-up to 900 BPM (15 Hz)
  • RS-232 and printer ports

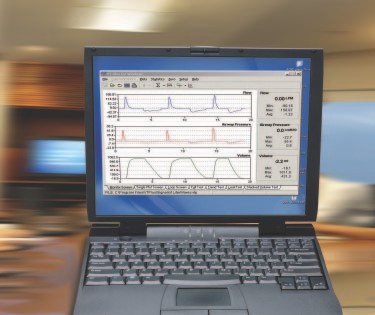

  • Included Windows-compatible graphics software
  • All 21ventilator parameters displayed at once on one screen
  • Operation by user-friendly VT PLUS HF command mode or special RT-200 command mode
  • Minimum, maximum, average, absolute, and graph for all parameters
  • Multiple special-function tests for efficient troubleshooting



Optional Features

  • Operation with a variety of precision test lungs available from Fluke Biomedical to complete a fully NIST-traceable ventilator testing system


Standard accessories

  • Operator's manual
  • VT for Windows PC Software (8830200FG)
  • Serial cable (75034)
  • Tilt stand (1HD0011)
  • Power cord (country specific)

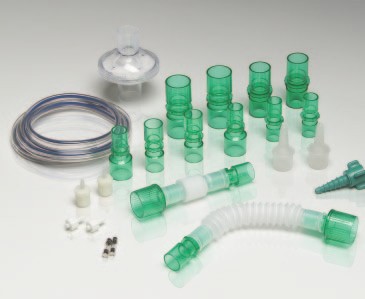

  • Accessory kit (to include the following 16 accessories) (VT-PLUS-7001)
  •  Filter, external (bacterial) (one each)
  • Filter, external (60mm/low flow) (one each)
  • Filter, external (pulmonary function) (one each)
  • Adapter, DISS O2 nut and nipple with 1/4" I.D. hose barb (one each)
  • Tubing adapter, directional (15mm OD x 15mm OD) (two each)
  • Tubing adapter (22mm OD x 22mm ID) (two each)
  • Tubing adapter (22mm OD x 22mm OD) (two each)
  • Tubing adapter (15mm OD x 22mm OD) (two each)
  • Tubing adapter (15mm OD x 15mm OD) (two each)
  • Tubing adapter (15mm ID x 15mm OD) (two each)
  • Tubing adapter, narrow bore (two each)
  • Barb (luer lock - male to 1/89 ID tubing) (two each)
  • Tubing adapter (1/4 NPT male to 1/8 ID tubing barb fitting) (two each)
  • Tubing adapter (luer lock 1/16 to bulkhead connection) (two each)
  • Fuse (500 mA)
  • Tubing 1/8" 4' long (two each)
