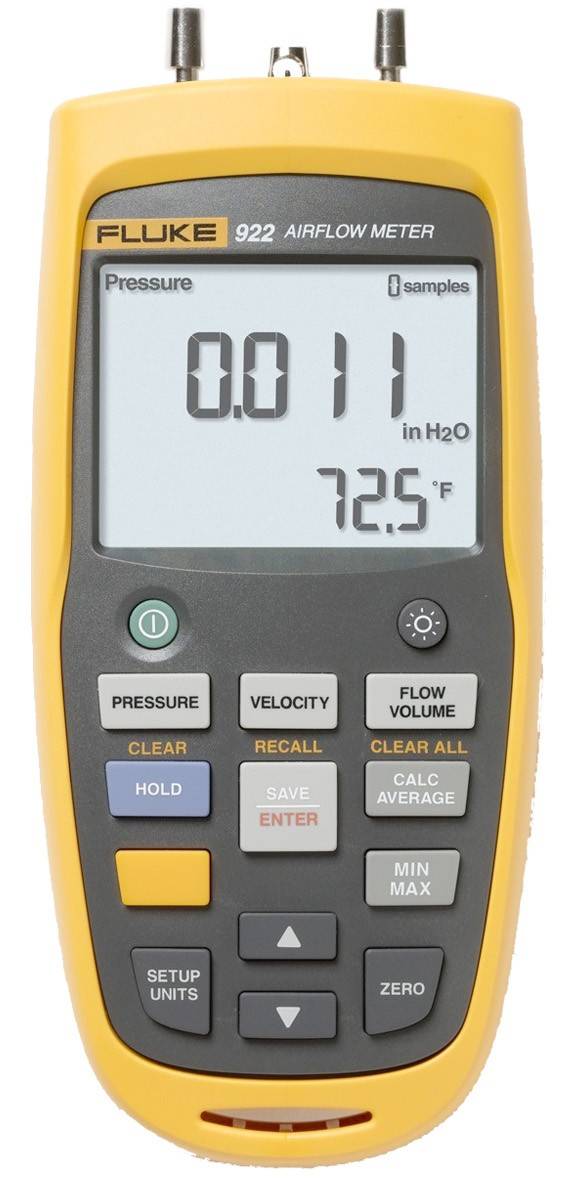

Air Flow Meter Fluke 922

Code: Fluke 922, Fluke 922/Kit




Datasheet PDF, 0.35 Mb


Description

Analyze airflow. Easily. The 922 Micromanometer.

Today’s HVAC technicians want a simple solution for diagnosing ventilation issues. Differential pressure measurements only tell part of the story. Technicians also want to measure air velocity and flow, without having to resort to expensive, difficult to use, specialist tools. The Fluke 922 makes airflow measurements easy by combining three tools: differential pressure, airflow, and velocity into a single, rugged meter.



Use the Fluke 922 micromanometer to:

  • Measure pressure drops across key HVAC equipment to drive peak performance and extend equipment life
  • Match ventilation to occupant loads
  • Monitor indoor vs. outdoor pressure relationships and manage the building envelope
  • Promote indoor comfort and quality

Perform duct traversals for accurate airflow readings



Fluke 922 was designed and built for how (and where) you do your job, with performance, ruggedness and ease of use, setting the Fluke 922 apart from the competition. The bright white display and ruggedized holster and wrist strap let you take the Fluke 922 into less than ideal environments. The color-coded hoses help you keep track of where your readings are coming from. The simple, intuitive interface means you can measure pressure, velocity, or airflow at the push of a button. The Fluke 922 helps you analyze airflow. Easily.



  • Powerful meter provides differential and static pressure, air velocity and flow readings
  • Convenient colored hoses help proper interpretation of pressure readings
  • Easy to use without sacrificing performance
  • Bright, backlit display for clear viewing in all environments
  • User-defined duct shape and size for maximum airflow accuracy
  • Resolution down to 0.001 in H2O
  • 99 point data storage capacity
  • Min/Max/Average/Hold functions for easy data analysis
  • Auto power off saves battery life


Standard accessories

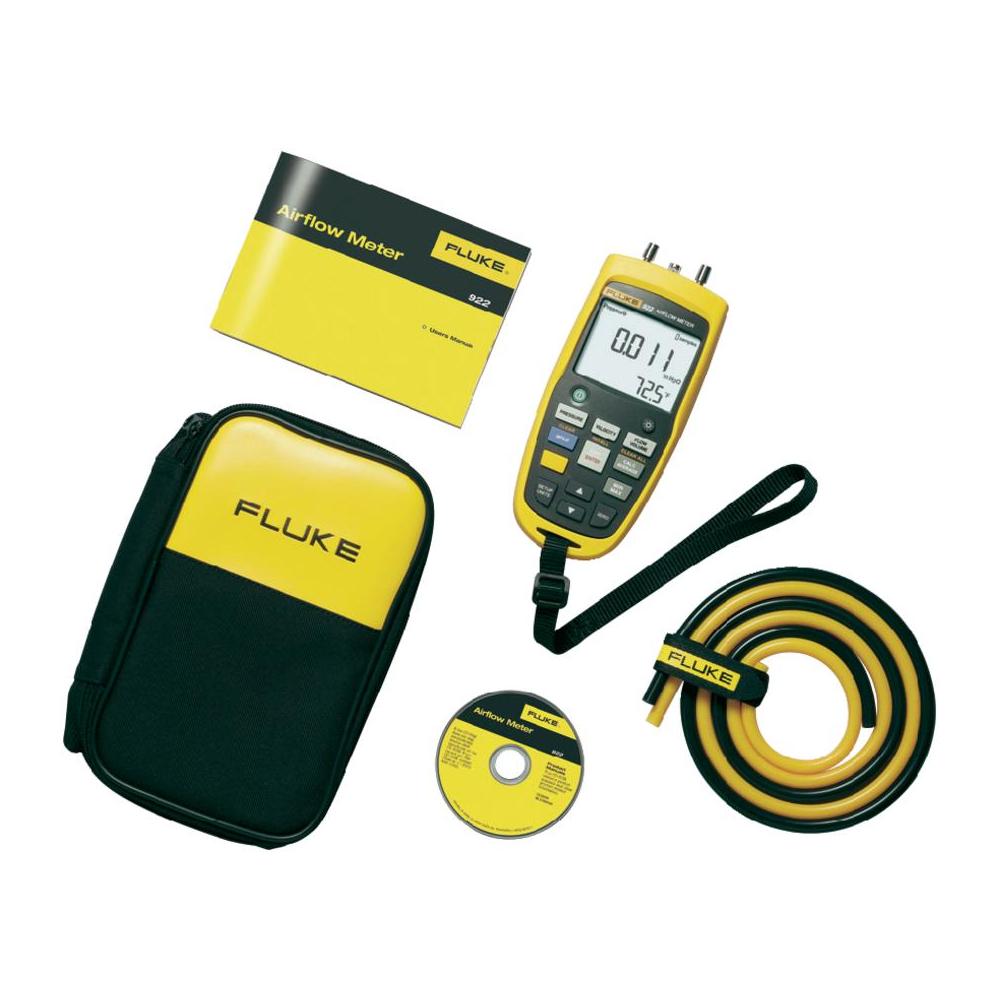

Fluke 922:

  • Fluke 922 Airflow Meter
  • Two Rubber Hoses
  • Four AA Batteries 1.5 V Alkaline
  • Users Manual
  • Soft Carrying Case

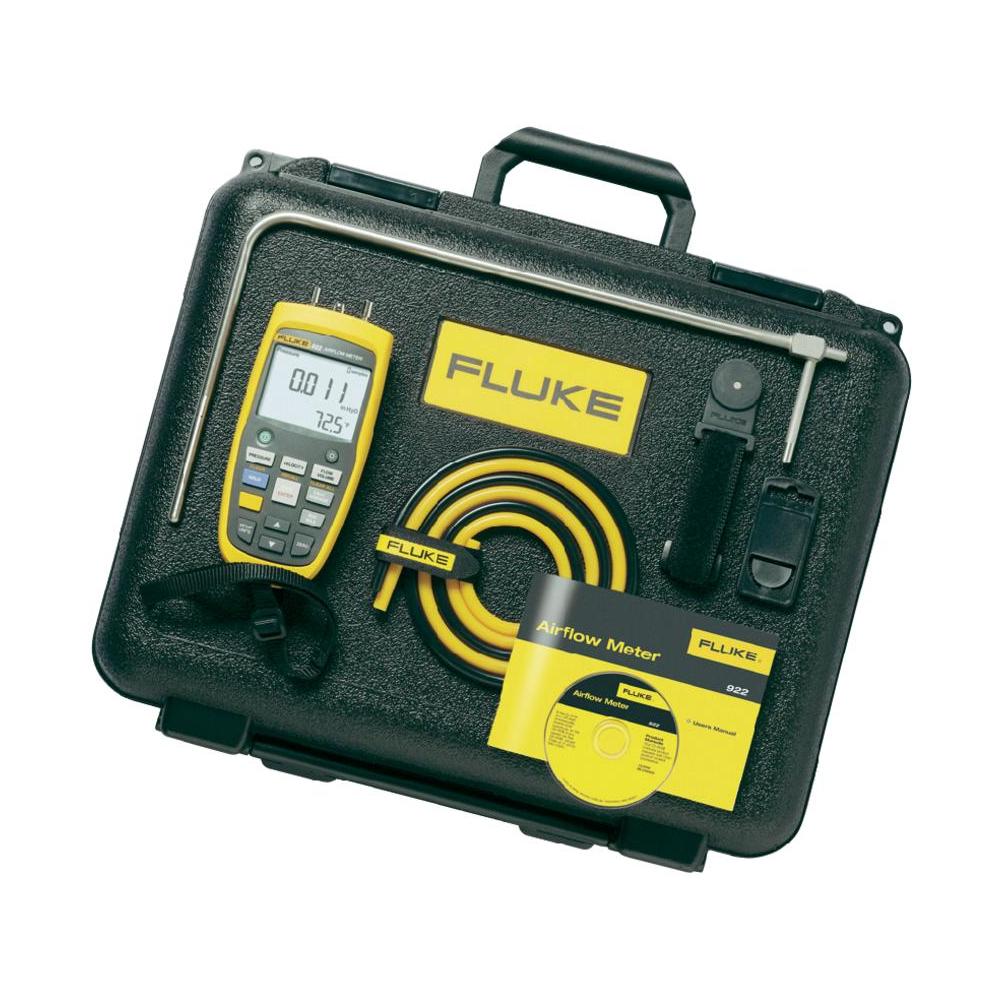

Fluke 922/Kit:

  • Fluke 922 Airflow Meter
  • 12 inch pitot tube
  • Two Rubber Hoses
  • TPak Magnetic Strip
  • TPak Strap, 9 inches
  • TPak Latch Tab
  • Four AA Batteries 1.5 V Alkaline
  • Users Manual
  • Hard Carrying Case
