Extech MN47 12 Function Compact MultiMeter + NCV

Code: Extech MN47




Datasheet PDF, 0.34 Mb


Description

Averaging, autoranging DMM with 4,000 count large LCD display and temperature function

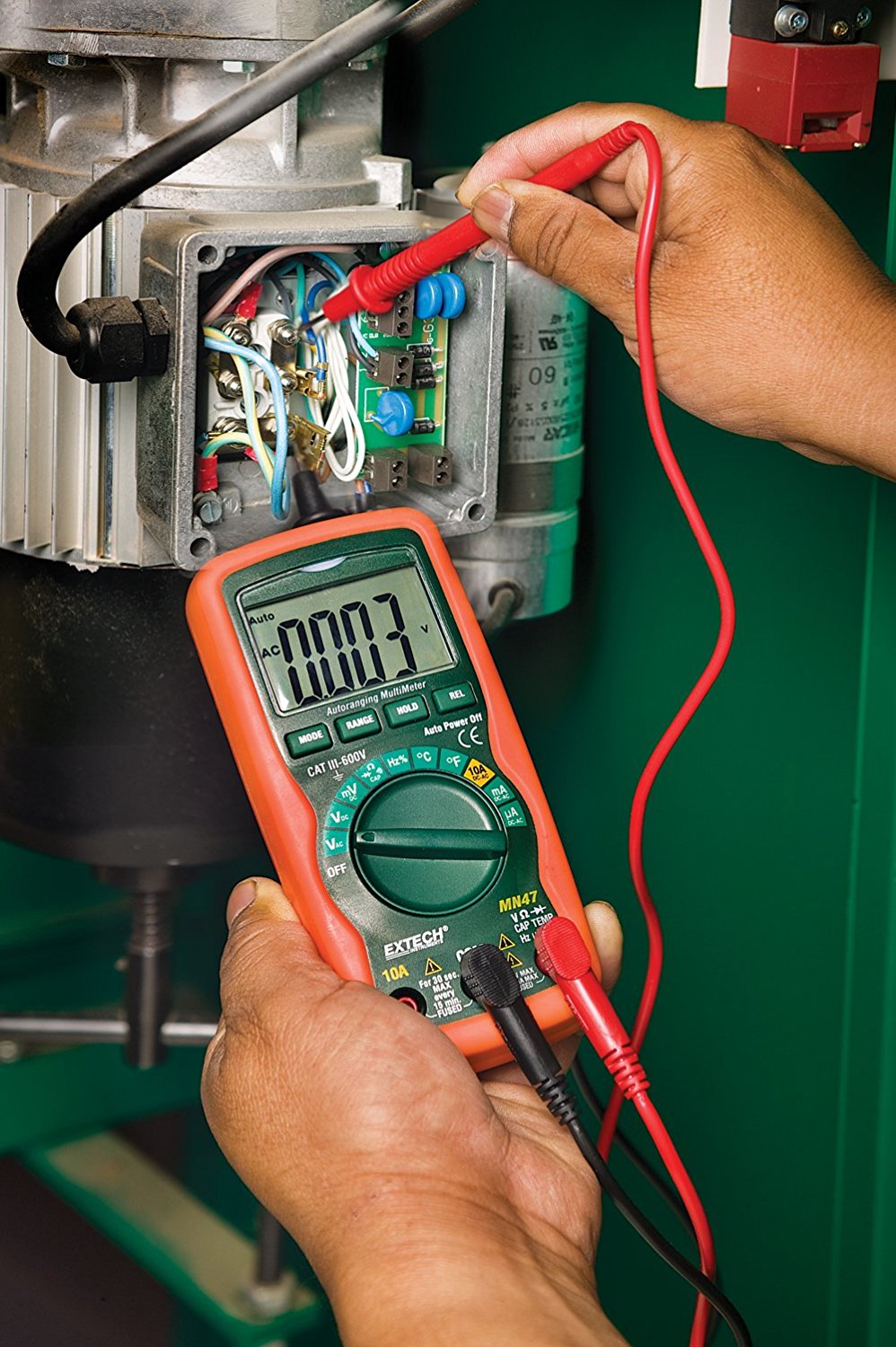

The compact, manual-ranging MN47 Digital Mini Multimeter is equipped with the extensive capabilities a tradesman or technician can use every day while also perfect for a hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. In addition to its electronic and electrical testing functions, the MN47 adds value with a built-in non-contact voltage detector. You won't have to search for a voltage pen in order to quickly and safely check for voltage prior to attaching the multimeter's test leads to the device under test. A bright red LED alerts you to the presence of voltage. Complete with test leads, bead wire Type K probe, 9V battery and carrying case.



Features:

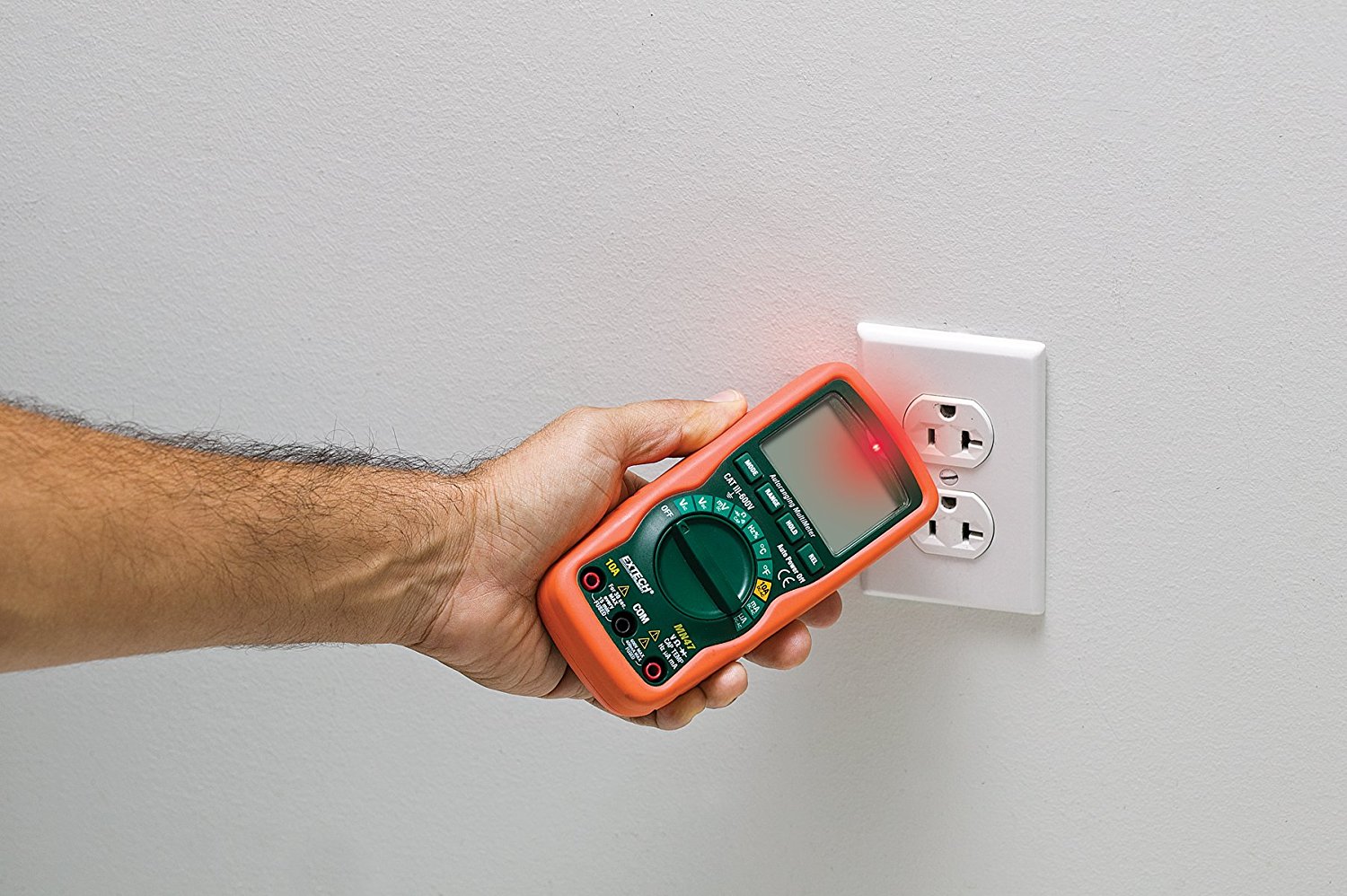

  • Built-in Non-contact Voltage Detector (from 100 to 600VAC)
  • AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Type-K Temperature, Duty Cycle, Continuity / Diode
  • Autoranging with manual override
  • 4000 count high-contrast LCD display
  • Relative and Data Hold functions

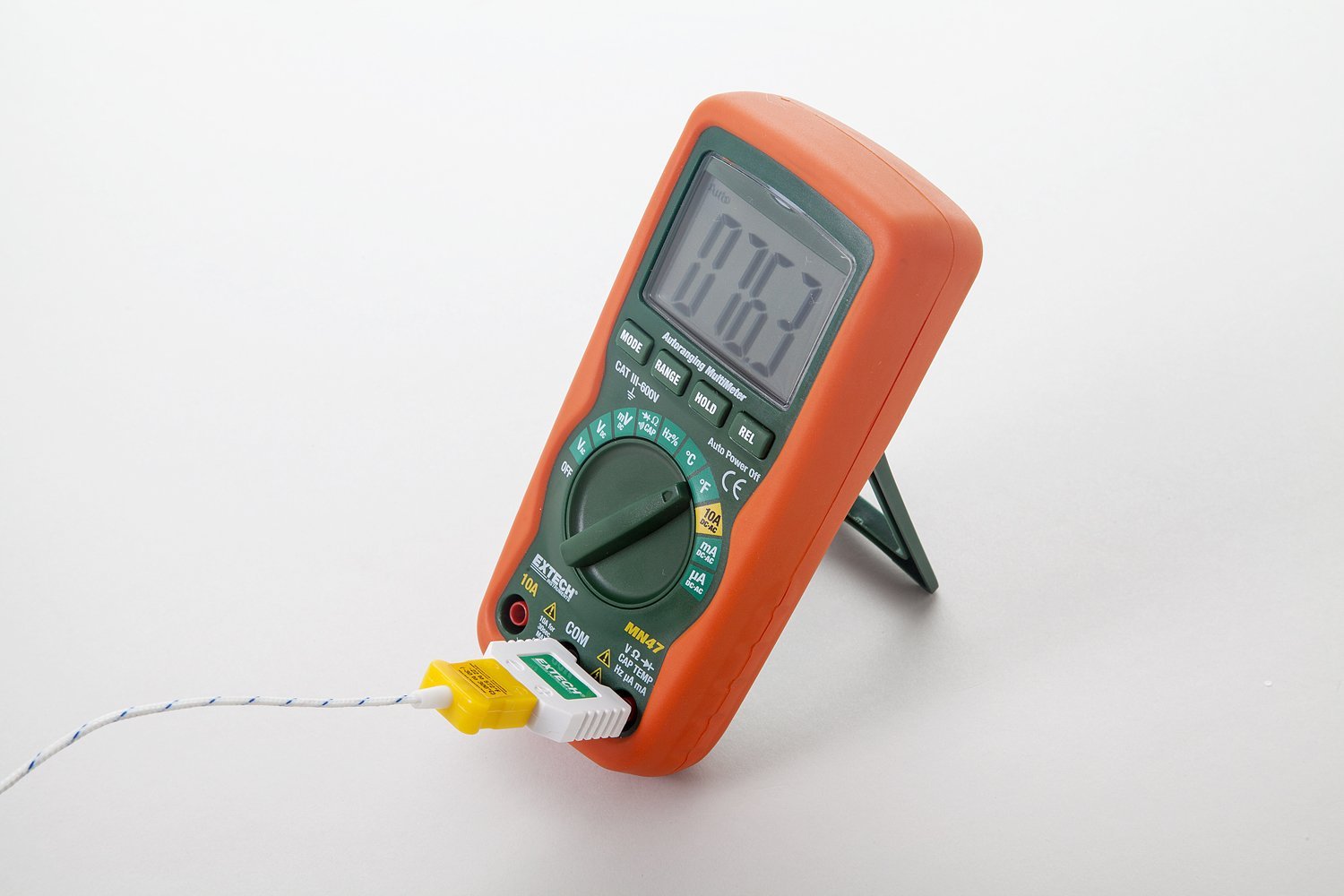

  • Complete with test leads, bead wire Type K probe, 9V battery and carrying case
