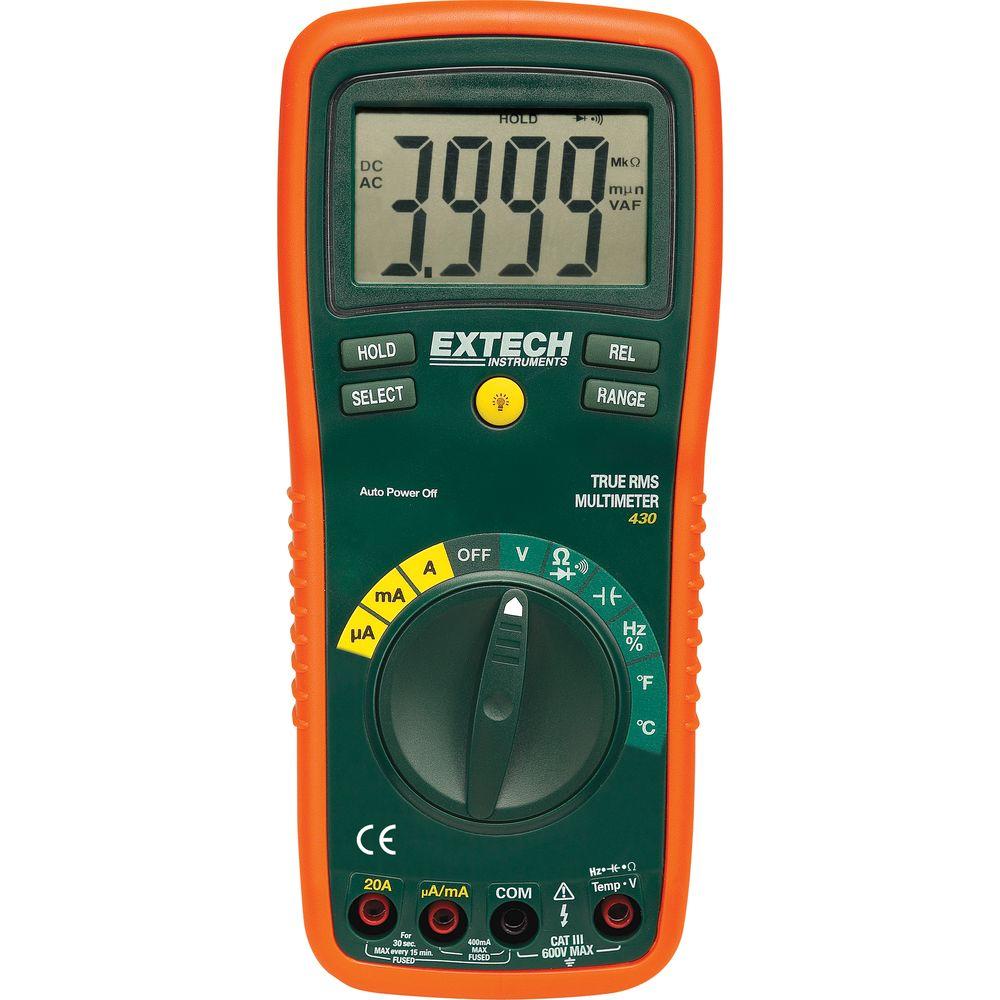

Extech EX430 11 Function True RMS Professional MultiMeter

Code: Extech EX430




Datasheet PDF, 0.34 Mb


Description

True RMS, autoranging DMM with large digit LCD display and temperature function

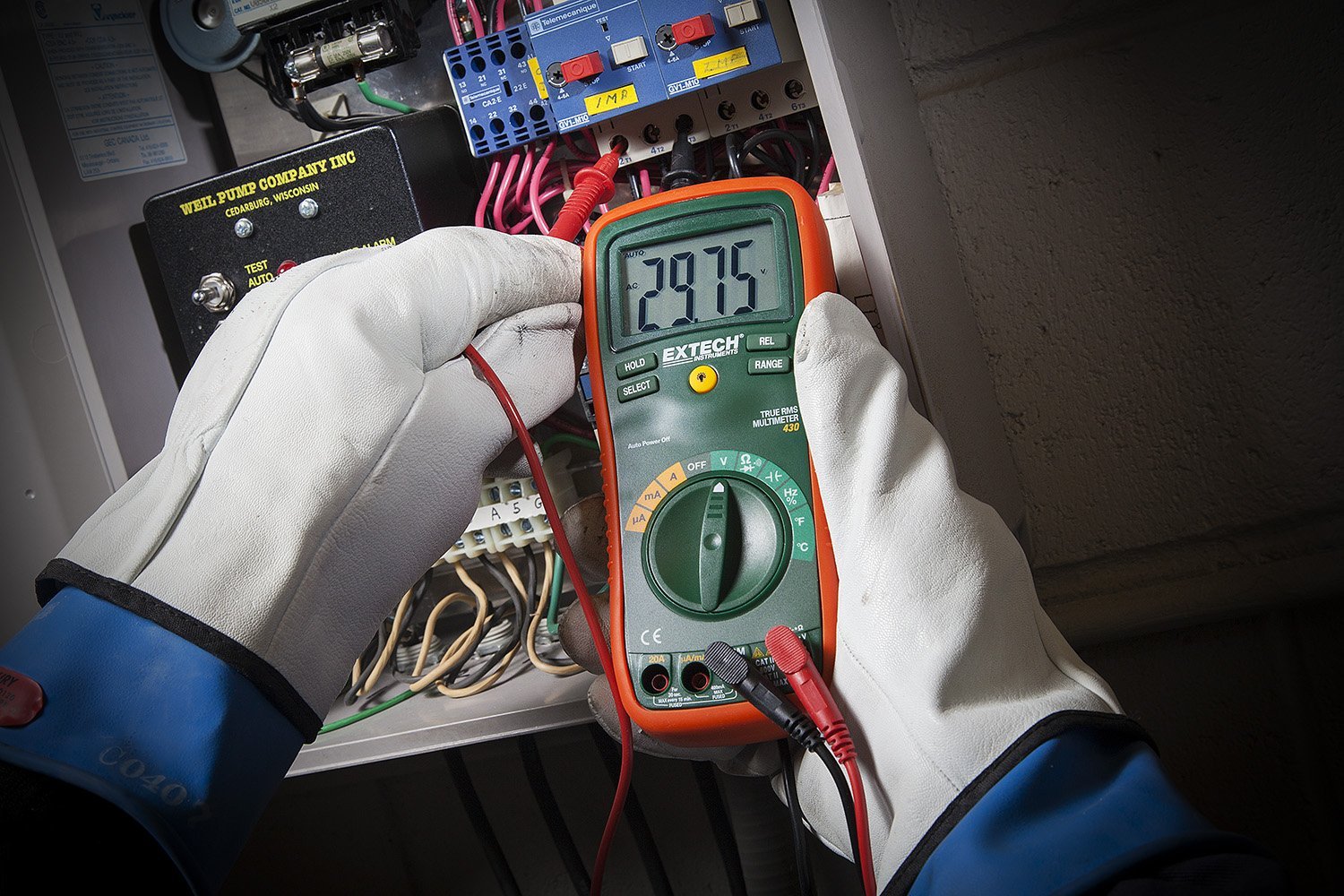

The Extech EX430 True RMS Autoranging Multimeter (with K Type, Capacitance, Frequency, and Duty Cycle) is a professional grade True RMS multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600V, AC and DC current to 20A, resistance to 40M, continuity and diode test. Also includes a Type K thermometer function for contact or air temperature measurements from -4 to 1832°F (-20 to 750°C). Advanced functions include Capacitance, Frequency and Duty Cycle. The meter comes complete with test leads, Type K temperature probe, 9V battery, protective holster, adjustable tilt stand and Velcro hanging strap. Cat lll 600V, CE and UL listed.



Features:

  • True RMS DMM with 11 functions and 0.3% basic accuracy
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Diode/Continuity, Duty Cycle
  • Input fuse protection and mis-connection warning
  • 20A max Current
  • Type K temperature measurements
  • Data hold, Relative, Auto power off
  • Large-digit backlit LCD

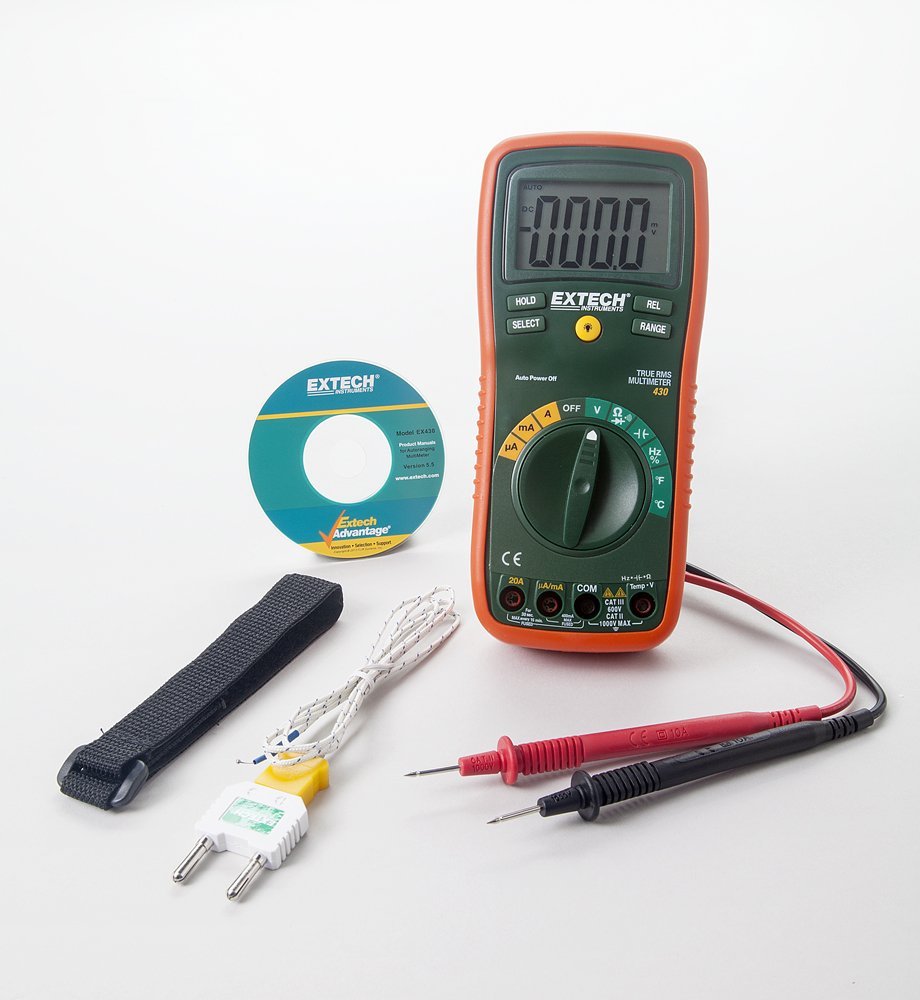

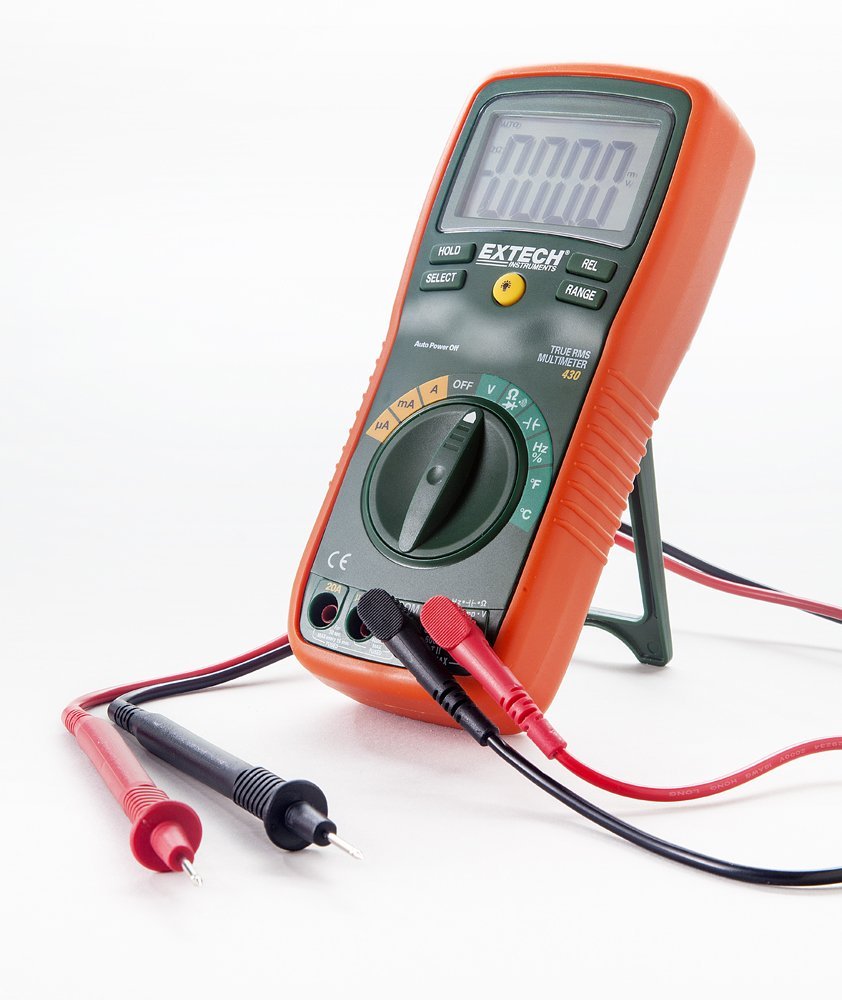

  • Complete with CAT III test leads, tilt stand, protective holster, velcro hanging strap, Type K bead wire temp probe and 9V battery
