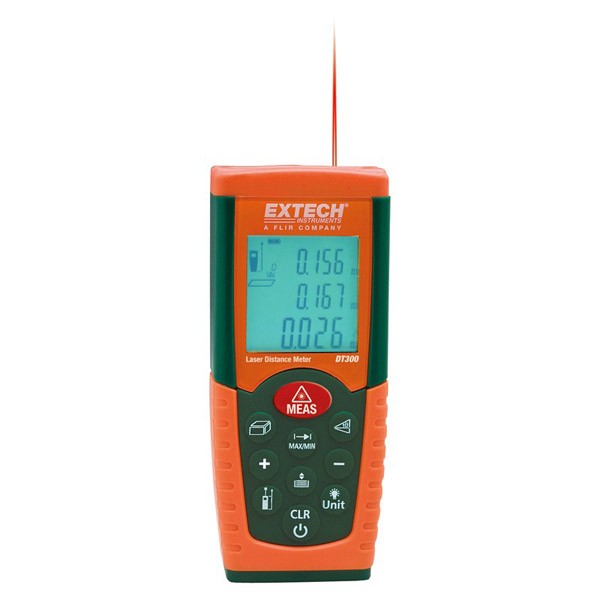

Extech DT300 Laser Distance Meter

Code: Extech DT300




Datasheet PDF, 0.37 Mb


Description

Laser measurements up to 197ft (60m)

The easy-to-use DT300 Laser Distance Meter accurately measures from 2" to 197' and can calculate area and volume. The integrated Pythagoras theorem also allows for the user to take indirect measurements. Other features include continuous measurement function with Min/Max distance tracking updates every 0.5 seconds, addition/subtraction, and front or rear edge reference. The DT300 has a double molded housing (IP54), low battery indicator, auto power-off function and comes complete with a carrying case and 2 AAA batteries.



·         Measures from 2" to 197' (0.05 to 60m)

·         Laser measurement accurate to 0.06 inches at 32 feet

·         Historical Storage recalls the previous 20 records (measurements or calculated results)

·         Automatically calculates Area and Volume

·         Indirect measurement using Pythagorean theorem

·         Continuous measurement function with Min/Max distance tracking updates every 0.5 seconds

·         Addition/Subtraction, Front or rear edge reference

·         Low battery indicator, Auto power off

·         Complete with carrying case and 2 AAA batteries
