Gaussmeter Teslameter for measure magnetic field with Hall probe Brockhaus BGM-101

Code: Brockhaus BGM-101



Datasheet PDF, 0.31 Mb


Description

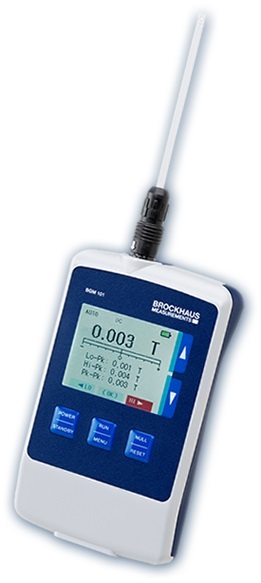

  • Hand-held device for determining magnetic field strength
  • High accuracy of 0,5 % and repeatability
  • Latest LiPo battery technology (USB charging)
  • Easy to operate with intuitive touch screen operation
  • Compact & ergonomic design

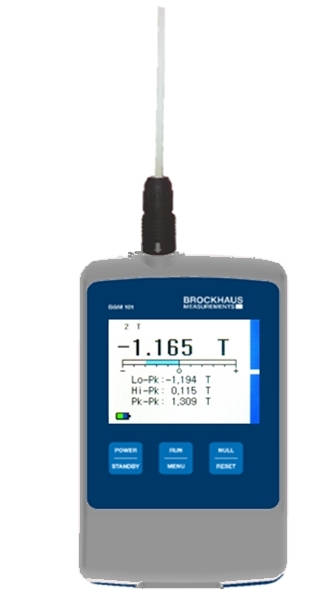

  • Multicolour touch TFT 320 x 240 px
  • 4 measuring ranges and Auto range
  • From DC to 10 kHz AC fields (TRUE RMS)
  • Automatic probe detection
  • Display in Gauss, Tesla, Oersted or A / m
  • Bargraph visualization
  • Fast Peak hold detection
  • Digital band filter for pulse measurement
  • Functions: Max / Min hold, Alarm,
  • Relative, Auto zero, Data storage,
  • Data transfer to PC via USB

Operating principle

The Gaussmeter enables a precise and user-friendly magnet field measurement by means of Hall sensors. The Operation of the Gaussmeter is via a multicolour touch display and individually programmable display settings.

The Gaussmeter is supplied with a LiPo battery pack which ensures long-term operation.

The battery pack can be charged either by USB or power adapter.

Data transfer is via USB interface thus enabling further data processing of the magnet field measurement on a PC.

Special attention has been given to extremely thin and flexible Hall probes which allowmagnetic field measurements even in the tightest of spaces.

Technical data: BGM 101

Measuring mode: measuring Hall voltage

Measuring range: 4 mT, 40 mT, 400 mT, 2 T, AUTO

Measuring frequency: DC to 10 kHz

Measuring accuracy: 0.5 % for DC and AC

Selection of measuring range: automatic or manual

Display: 320 x 240 px multicolour touch TFT

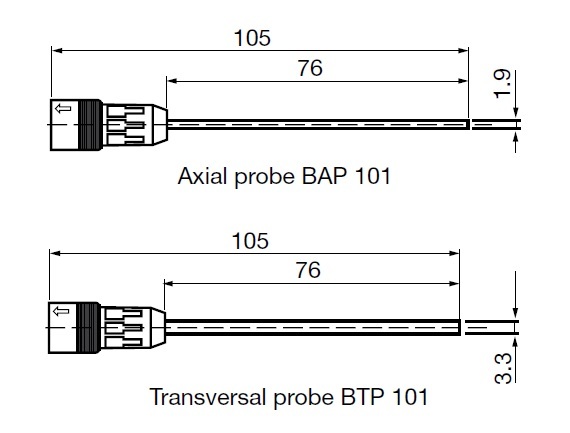

Probe type: transversal (BTP-101) axial (BAP-101)

Temperature range: 0°C - 50°C

Weight: 185g

Dimensions: L 120 mm x W 72 mm x H 25 mm

Power supply: LiPo battery 2500 mAh (power supply or USB)




Standard accessories

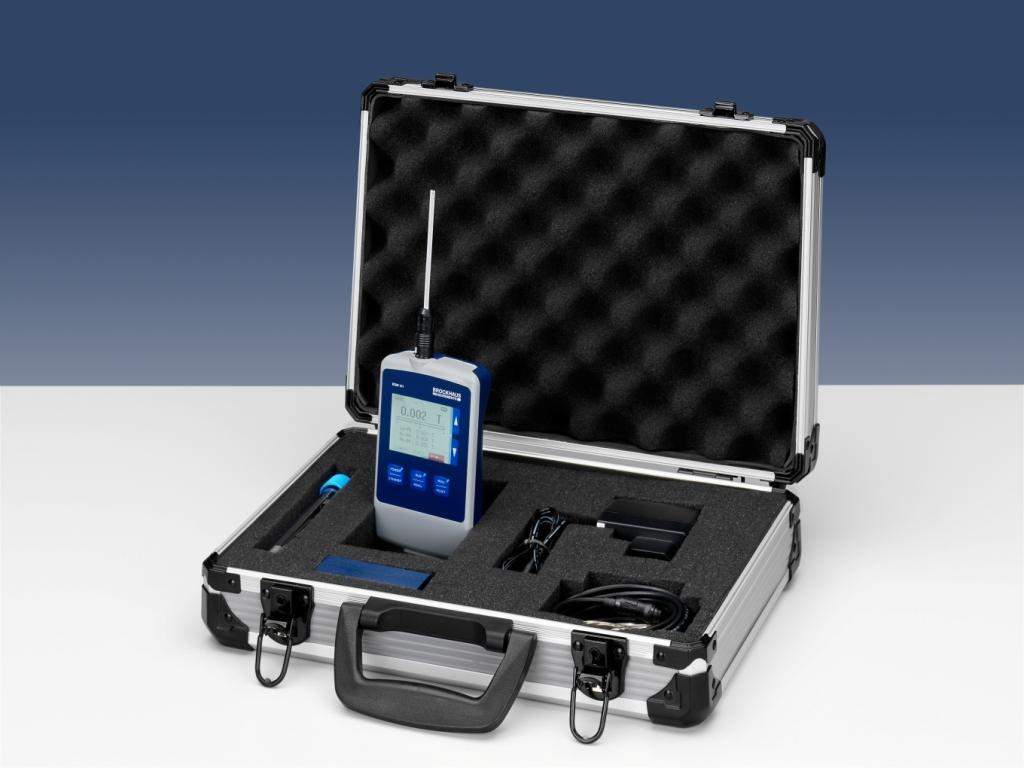

GAU-005000 Gaussmeter package complete

1 x gauss-meter BGM 101

1 x zero field chamber BZC-101

1 x hard case (aluminium) for Gaussmeter BGM-101

1 x 220 V battery charger

1 x USB cable

1 x transversal- or axial hall probe

1 x manual ( PDF on CD ROM)



GAU-005001 Gaussmeter package basic

1 x gauss-meter BGM 101

1 x 220 V battery charger

1 x USB cable

1 x transversal- or axial hall probe

1 x manual ( PDF on CD ROM)



Recommended options

GAU-005002 Zero field chamber BZC-101

GAU-005004 Additional axial probe BAP-101

GAU-005005 Additional transversal probe BTP-101

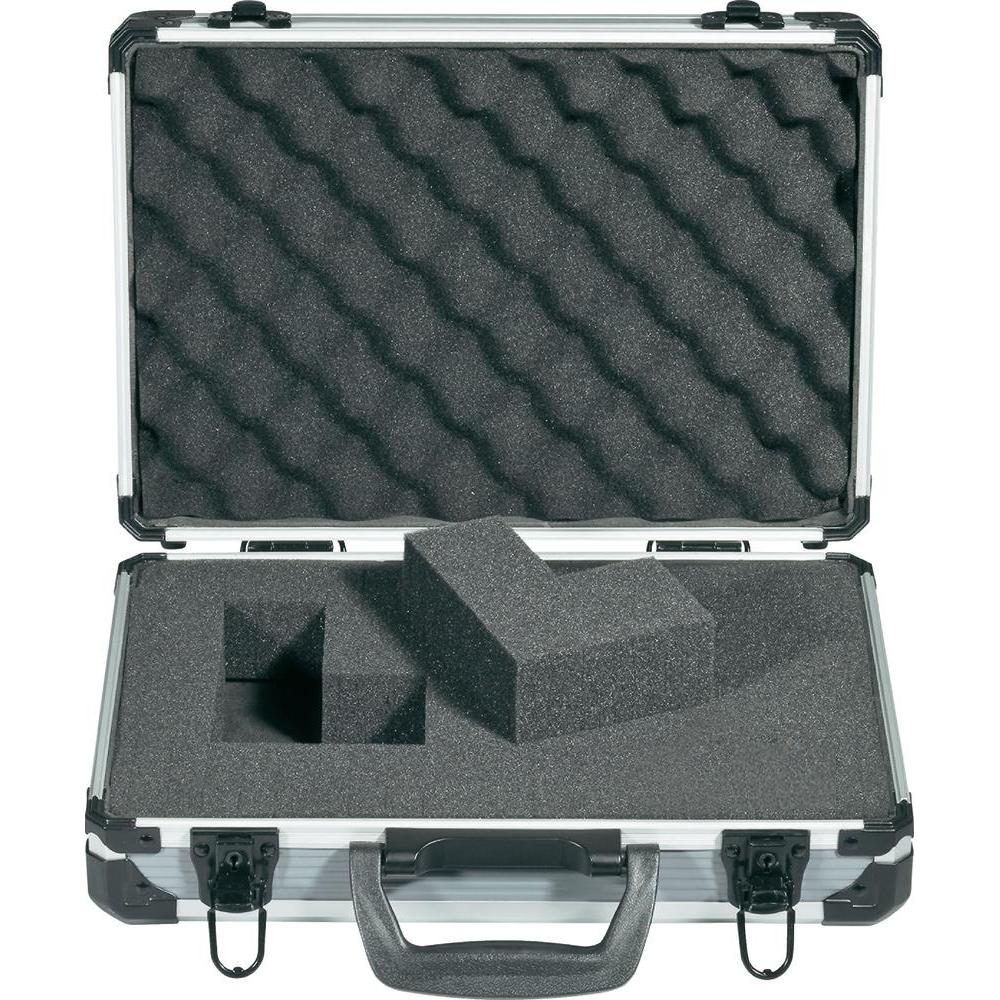

GAU-005003 Aluminum hard case

GAU-005006 Probe extension cable (1 m) BPC-101


Hall probes overview Gaussmeter



Axial Probes

Model

L

D

A

Stem Material

Corrected accuracy (%) of reading

Temperature coefficient (maximum) zero

Temperature coefficient (maximum) calibration

MMA-2502-VH

2 " ± 0.063"

0.25" ± 0.006''

0.010"

Aluminum

± 0.25 % to 30 kG

± 0.09 G/°C

- 0.04 %/°C

MNA-1904-VH

4' ± 0.125"

0.187" ± 0.005''

0.005''

Fiberglass
epoxy

MMA-2502-VG

2" ± 0.063''

0.25" ± 0.006''

0.010"

Aluminum

± 0.15 % to 30 kG

± 0.13 G/°C

- 0.005 %/°C

MNA-1904-VG

4' ± 0.125"

0.187" ± 0.005''

0.005"

Fiberglass
epoxy



Transverse Probes

Model

L

D

A

Stem Material

Frequency Range

Corrected accuracy (%) of reading

Temperature coefficient (maximum) zero

Temperature coefficient (maximum) calibration

MMT-6J04-VH

4"± 0.125"

0.061" max

0.180"

Aluminum

DC

± 0.25 % to 30 kG

± 0.09 G/°C

- 0.04 %/°C

MNT-4E04-VH

0.045" max

0.150''

Rigid glass epoxy

DC and 10 Hz to 400 Hz

MMT-6J04-VG

0.061" max

0.180"

Aluminum

DC

± 0.15 % to 30 kG

± 0.13 G/°C

- 0.005 %/°C

MNT-4E04-VG

0.045" max

0.180"

Rigid glass epoxy

DC and 10 Hz to 400 Hz



Flexible Transverse Probes

Model

W

T

Active Area

Stem Material

Frequency Range

Corrected accuracy (%) of reading

Temperature coefficient (maximum) zero

Temperature coefficient (maximum) calibration

MFT-3E03-VH

0.135" max

0.025" max

0.040" dia (approx)

Flexible
Tubing

DC and 10 Hz to 400 Hz

± 0.25 % to 30 kG

± 0.09 G/°C

- 0.04 %/°C

MFT-3E03-VG

± 0.15 % to 30 kG

± 0.13 G/°C

- 0.005 %/°C
