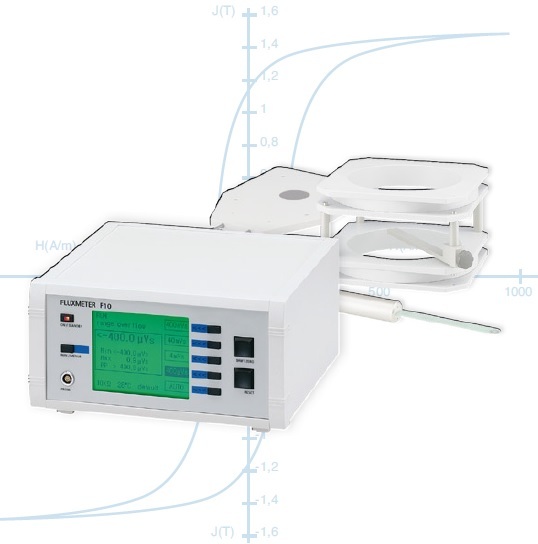

Fluxmeter for measuring all magnetic quality parameters Brockhaus F10

Code: Brockhaus F10

Datasheet

PDF, 0.15 Mb

Description

Magnetic flux
Magnetic flux density
Magnetic field strength
Magnetic moment
Magnetic potential
Polarization
Analogue voltage integrator for measuring all quality-related magnetic parameters
Integrated calibration device
Automatic probe identification
Selection of measuring units
Integrated comparator
Self-testing function
Peak value memory
Analogue output
Well-structured user interface
Illuminated graphic display
Demonstration software for PC connection

Measuring all magnetic properties of magnetic material relevant to quality control.

Applications in e.g. research and development, automatic process control, quality control, and at incoming inspection.

When the flux density is changed a voltage is induced proportional to the change in flux. The Fluxmeter F 10 integrates this voltage and indicates the voltage integral.

The self-calibrating function of the instrument ensures that the measurements are always accurate. Display of the measured values in a selection of scales: e.g. Tesla, A /m or Vs.

In this way optimal use is made of the possible applications.

User-friendly features:

Drift compensation
Digital display filter
Conversion of measuring scales
Self-calibration Window comparator
Percentage display
Physical probe parameters saved in memory
Automatic probe identification
Choice of manual or automatic range
Remote control via digital interfaces

Technical data:
Measuring mode:	free of drift integrator with 24-bit A / D-conversion
Measuring ranges:	400 µVs, 4, 40, 400 mVs
Resolution:	maximum 0,1 µVs
Selection of range:	automatic or manual
Accuracy:	0,2 % after self-calibration
Measuring rate:	50 measurements / sec
Internal calibration:	voltage- / time reference
Drift:	<± 1 µV s / min
Input resistance:	1 kOhm, 10 kOhm ± 0,1 %
Connections:	thermal low voltage mini-sockets on the front and back panel
Display:	LCD 100 x 80mm, 4-digit display of measured value, bar graph display
Digital output:	low / high / in / run
Digital input:	reset / hold / range / drift zero
Interfaces:	RS-232 C, USB optional
Analogue outputs:1x galvanically isolated, ± 10 V 1x configurable (average value, min. / max., peak / peak, ± 10 V)
Peak value memory:	digital recording at intervals of 20 ms, analogue recording for high-speed pulses (optional)
Dimensions:	120 x 250 x 250 mm (height x width x depth)
Mains supply:	105- 125 V AC/ 210 - 250 V AC, 50 / 60 Hz

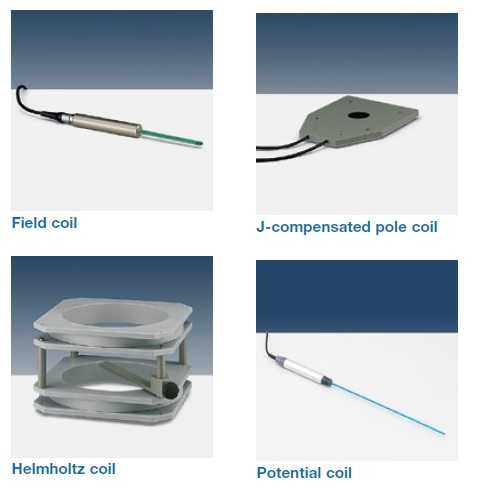

Recommended options
