BAUR Syscompact 2000 Mobile cable fault location system

Code: BAUR Syscompact 2000




Datasheet PDF, 0.36 Mb

Description

The Syscompact 2000 is a multifunctional cable fault location system designed for modular 19" rack technology. The integrated surge and test generator is used for cable and sheath testing as well as for precise location of high-resistive and intermittent faults. The SYSCOMPACT 2000 is preferably used in low- and medium-voltage networks for fault location up to a cable lengths of 65 km.



Features:

  • Fast and reliable
  • Precise, dependable cable fault location
  • High performance high voltage unit
  • Integrated proven cable fault pre-location methods


More products BAUR

BAUR UL 30 AUDIO FREQUENCY SYSTEM

• Output energy up to 50 VA
• Automatic or manual impedance adjustment
• Charging unit and rechargeable battery integrated; battery or mains operation
• Continuous or cyclical output



BAUR LIONA ONLINE PD SPOT TESTER

• Automatic PD detection during normal mains operation (without switching off the cable route)
• With DeCIFerĀ® technology: PD identification based on 500 million measurement results
• Precise online PD mapping with PD transponder



BAUR DPA 75 C OIL BREAKDOWN VOLTAGE TESTER

• Compact and robust device for portable use onsite
• Test voltages from 0 to 75 kVrms
• Repeatable breakdown measurements in mineral, silicone and plant oils
• Reliable measurement results due to its short switch-off time (< 10 ½s)



BAUR FRIDA VLF TESTING AND DIAGNOSTICS UNIT

• Precise and non-destructive determination of the cable condition
• Easy and quick test setup
• Automatic testing and diagnostic sequences
• Compact dimensions and lightweight



BAUR PHG 70 TD PD / PHG 80 TD PD VLF TEST AND DIAGNOSTICS SYSTEM

• Compact, enclosed design in 19½ format
• Variable installation option with separate control and voltage unit
• Variable connection options to cable stations of different models



BAUR SHIRLA CABLE SHEATH TESTING AND FAULT LOCATION SYSTEM

• Cable and cable sheath testing up to 10 kVC
• Resistance measurement
• Cable and cable sheath fault pre-location with precision measuring bridge
• Adjustable cable sections that can be defined with length, conductor cross-section and material respectively and can be considered in the distance calculation



BAUR TDR 500/510 TIME DOMAIN REFLECTOMETER

• Configurable for various measurement ranges and cable types
• Standard-compliant, safe measurements on live cables through the measurement category CAT IV / 600 V
• Ideal for fault location in the area of telecommunication, video technology, data and security technology

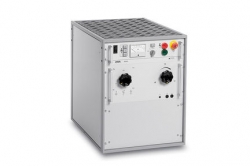

BAUR SSG SERIES SURGE VOLTAGE GENERATOR
