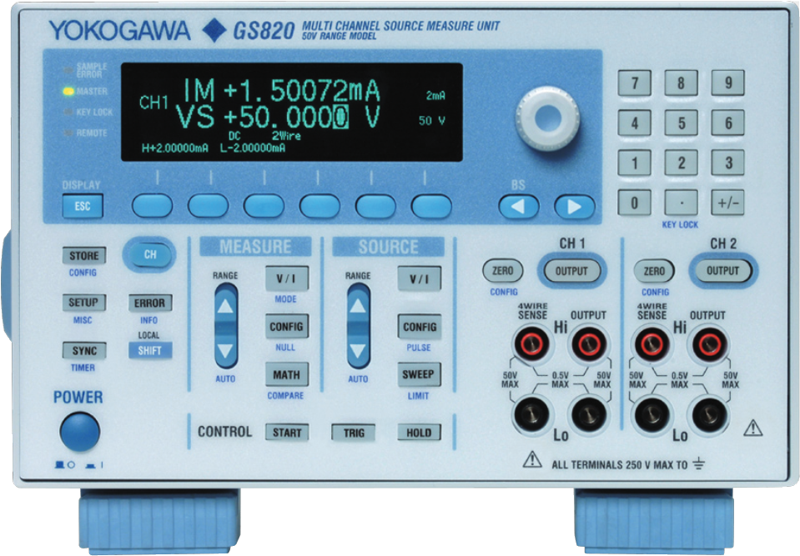

YOKOGAWA GS820 Multi Channel Source Measure Unit

Cod: YOKOGAWA GS820 Multi Channel Source Measure Unit




Brosura produs PDF, 2.97 Mb

Descriere

The GS820 is equipped with two analog channels with each channel consisting of a constant voltage source VS, a constant current source IS, a voltmeter VM, and an ammeter IM. The two source measure channels are isolated.



Four-quadrant operation consisting of source operation (current source) and sink operation (current sink) is available with ranges up to 7 V and 3.2 A or 18 V and 1.2 A. The output and measurement resolutions are 5.5 digits.



Features:

  • 1 pA resolution at extremely small current range 200 nA
  • Generate arbitrary waveforms consisting of up to 100,000 points at 100 µs intervals
  • Channel expansion through master-slave synchronization link
  • Fast test speeds
  • 16-bit digital I/O (model 765602/12)
