Trusa verificare relee de protectie Testyle TE5812
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Testyle TE5812




Brosura produs PDF, 0.21 Mb

Descriere

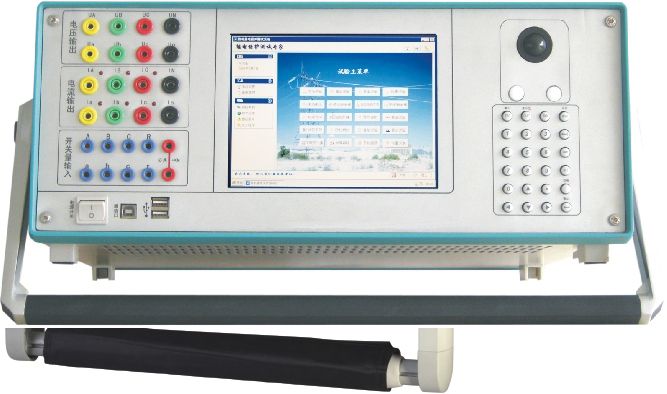

TE5812 Microprocessor-based Protective Relay Tester can output high-precision six-phase AC/DC voltage, current source, applicable to any microprocessor relay protection testing; uses Windows XP user interface, large color display directly, touch mouse, makes test easier.In accordance with IEC standards IEC 60255-11 2008(Ed.2.0) Measuring relays and protection equipment-Part 11.



(1)Six-phase current, six-phase voltage simultaneous output.
(2) Control board, with DSP + FPGA structure, 16-bit DAC output, can produce 2000 high-density sine wave on the fundamental points of every cycle. As a domestic tester, it represents the highest level, greatly improved waveform quality and increase the accuracy.
(3) Standalone operation, built-in high-performance industrial computer, dominant frequency 300 ~ 600MHZ, 128M memory, 12G hard disk drive, running Windows XP operating system, panel with advanced stainless steel keyboard and touch mouse, 8.4 inches TFT true color LCD.
(4) This device can test a variety of relay protection and automatic safety devices, and can simulate complex transient, permanent, transitional fault for the full group equipment tests, also can save real time test data, display vector graph, drawing all kinds of curves and online print reports.





 Power supply

  AC220V±10%; 50Hz 10A

Executive Standard

 IEC 60255-11_2008(Ed.2.0) Measuring relays and protection equipment-Part 11

 AC Current Source

  Amplitude range: 6×(0-30A)Accuracy: 0.2%

  Maximum six-phase current parallel output: 180A

  Permit value for long-term work of phase current: 10A

  Power: 300VA/phase

  Maximum power for six-phase parallel:900VA

  Maximum allowed working hours for Six-phase parallel output:10s

  Frequency range: 0--1000Hz;Accuracy: 0.001Hz

  Harmonic times: 2-20 orders ; Phase: 0--360° ;Accuracy: 0.1°

 DC Voltage Source

 Phase voltage output amplitude: 0--±150V ;Accuracy: 0.2%

  Line voltage output amplitude: 0--±300V

 Time Measurement Range

  Range: 1ms~9999s

  Measurement accuracy: 1ms

 DC Current Source

  Amplitude: 30A/phase

  Power: 300VA/phase

  Accuracy: 0.2%

 AC Voltage Source

 Amplitude range: 6 ×(0--125V) ; Accuracy: 0.2%

  Line voltage range: 0--250V

 Phase voltage /line voltage output power: 75VA/100VA

  Frequency range: 0--1000Hz ;Accuracy: 0.001Hz

  Harmonic times:2-20 times
