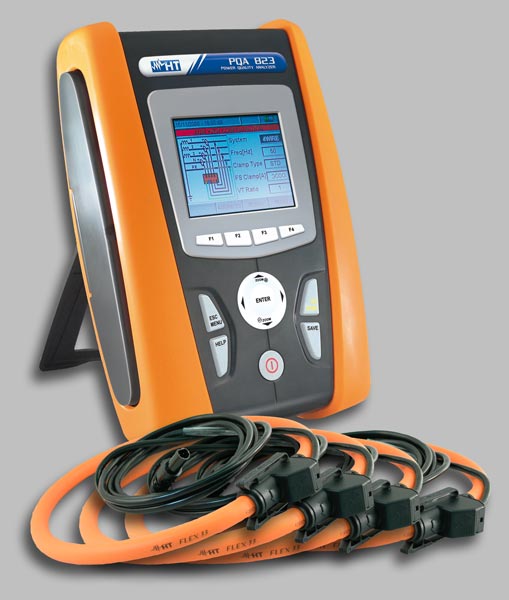

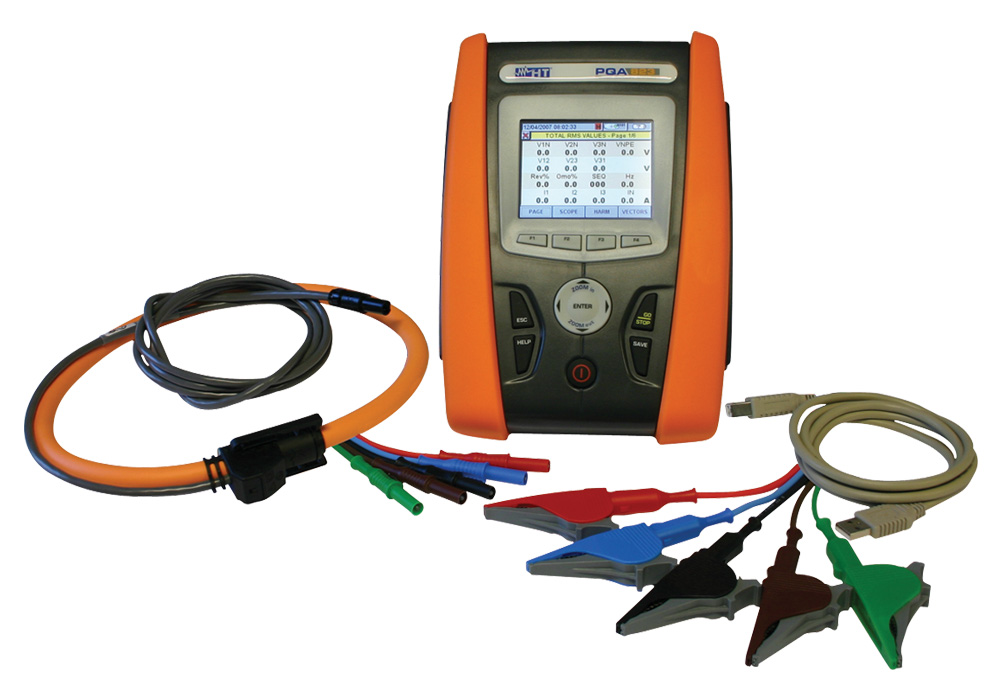

Analizor calitate putere si energie electrica retea trifazata HT Italia PQA823/ PQA824
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: HT Italia PQA823/ PQA824




Brosura produs PDF, 2.78 Mb


Descriere

  • TRMS P-N, P-P, P-PE voltage measures (5 inputs)
  • TRMS current on phases and neutral (4inputs)
  • Fast voltage transients with 5µs resolution(PQA824 only)
  • Active, reactive and apparent powers measures
  • Active, reactive and apparent energies measures
  • Power factors measure
  • Frequency measure
  • Max 251 selected parameters at the same time
  • Integrated period selectable from 1s to 60min
  • Harmonic analysis of voltage and current up to 49th component
  • Voltage anomalies (sags, swells) with 10ms resolution
  • Numerical and graphical (waveforms) visualization
  • Histogram visualization of harmonic analysis

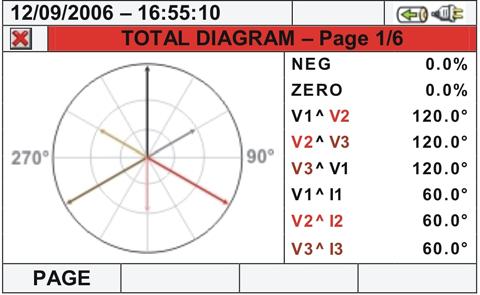

  • Vectorial diagram of voltages and currents
  • Flicker analysis (Pst, Plt) in compliance to EN50160
  • Voltage unbalance in compliance to EN 50160
  • Inrush currents measures
  • 5 predefined recordings of parameters

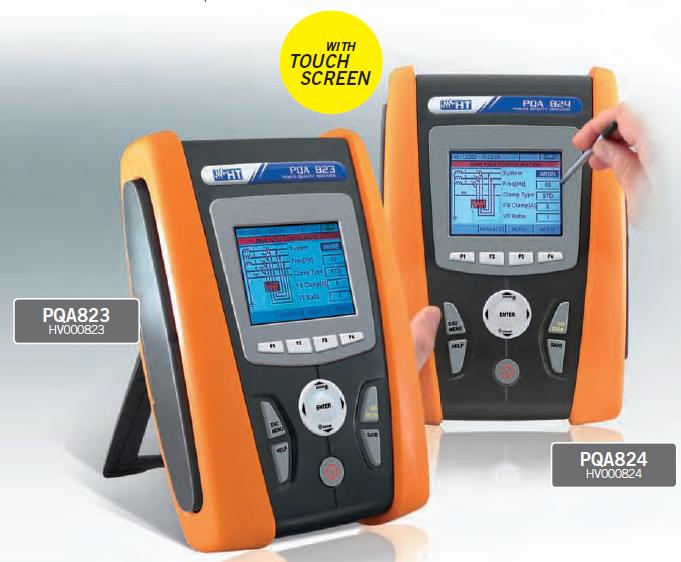

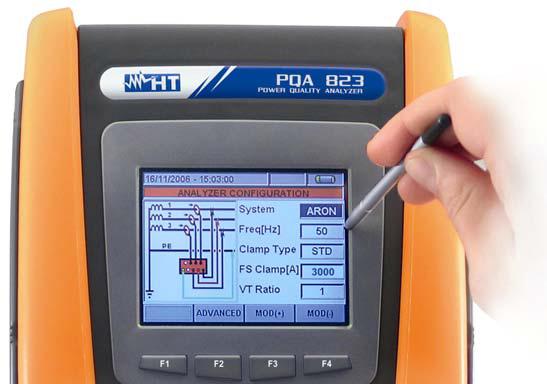

  • TFT colour display with "touch screen"
  • 15Mbytes internal memory for recordings saving
  • Using of external compact flash and USB pen drives
  • USB interface for PC connection

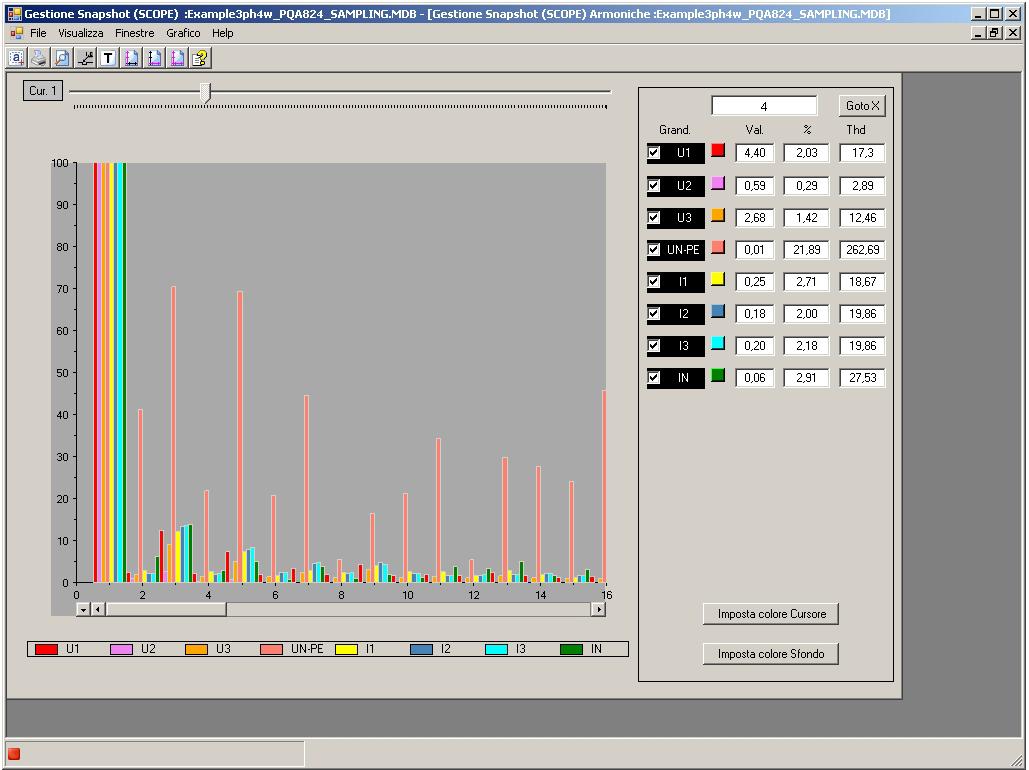

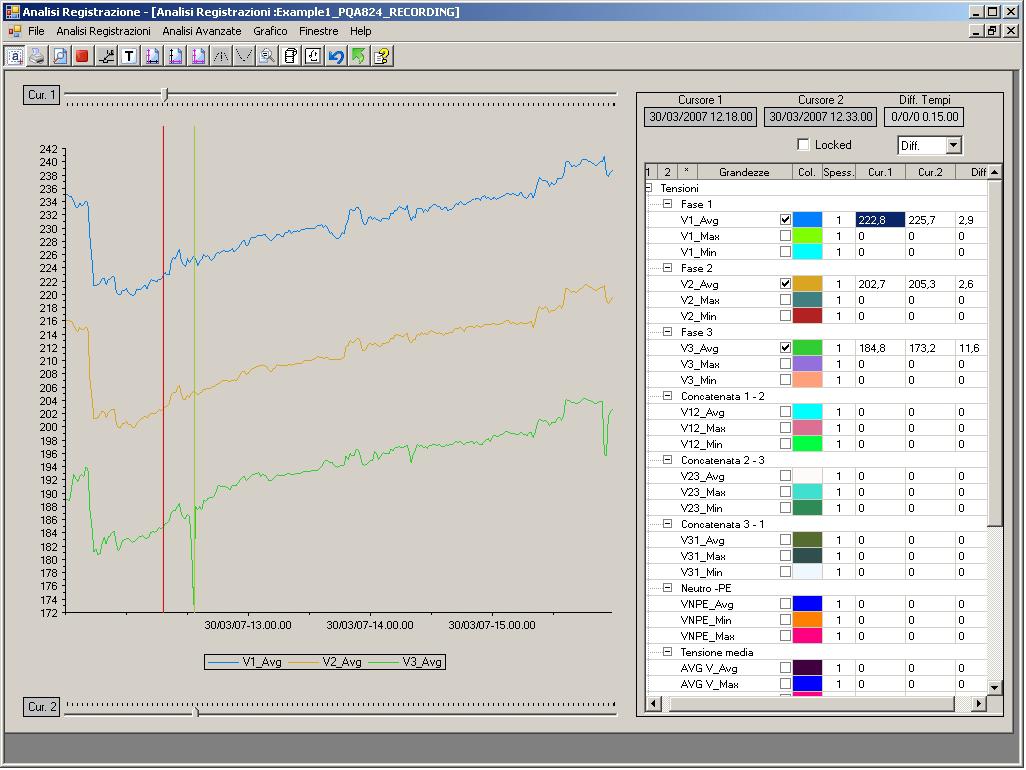

  • Windows software for recordings analysis
  • Rechargeable Li-Ion battery and external AC/D adapter
  • Contextual help selectable on each screen
  • Virtual keyboard at display


Accesorii standard

  • KIT800: set of 5 cables with alligator clip

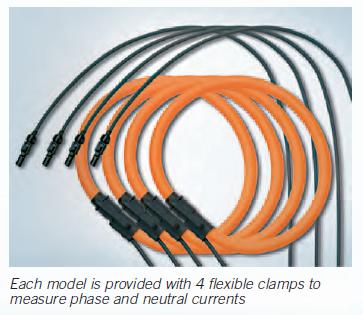

  • HTFLEX33D: flexible clamp 3000A AC, diameter 174mm, 4 pecs
  • A0055: external adapter 100/240V 50Hz
  • TOPVIEW2007: Windows software + USB cable C2007
  • BORSA2051N: carrying bag
  • PT400: Pen for touch screen display
  • Rechargeable battery Li-ION (fitted on meter)
  • User manual on CD-ROM
  • Quick reference guide
  • Calibration certificate ISO9000


Optiuni recomandate

  • HP30C2: transducer clamp 200-2000A/1V AC, diameter 70mm
  • HT96U: transducer clamp 1-100-1000A/1V AC, diameter 54mm
  • HT97U: transducer clamp 10-100-1000A/1V AC, diameter 54mm
  • HT903: accessory 3 x 1-5A / 1V for CT's external connection
  • A0056: 110V 50/60Hz external adapter
  • CF800: compact flash card 1GB
  • MCR800: compact flash card reader
