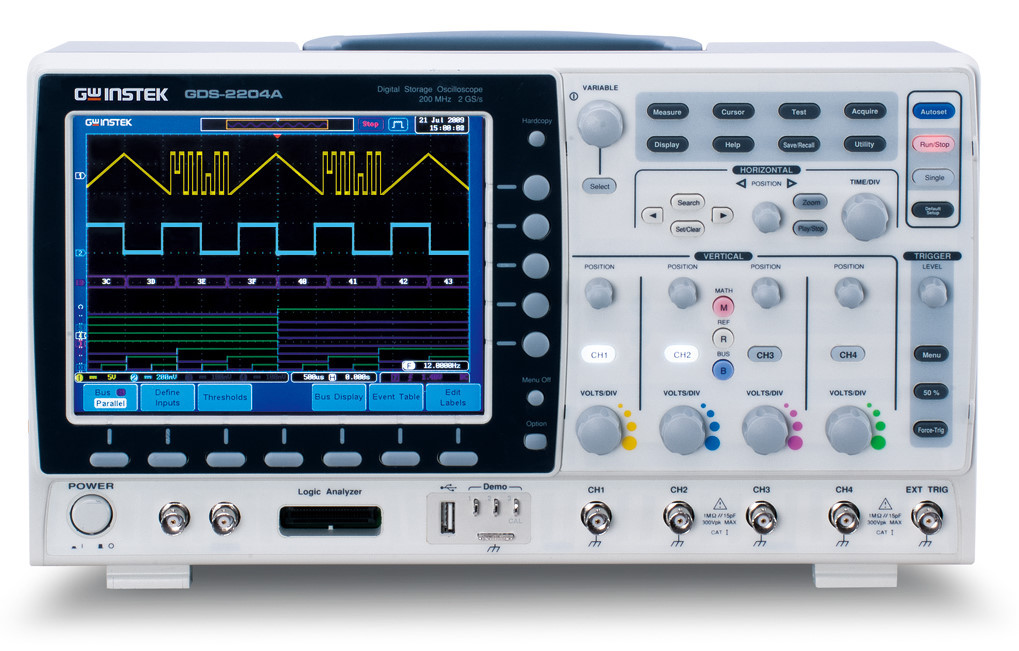

GDS-2072A 70MHz ,2-channel ,Visual Persistence DSO
GDS-2074A 70MHz ,4-channel ,Visual Persistence DSO
GDS-2102A 100MHz ,2-channel ,Visual Persistence DSO
GDS-2104A 100MHz ,4-channel ,Visual Persistence DSO
GDS-2202A 200MHz ,2-channel ,Visual Persistence DSO
GDS-2204A 200MHz ,4-channel ,Visual Persistence DSO
GDS-2302A 300MHz ,2-channel ,Visual Persistence DSO
GDS-2304A 300MHz ,4-channel ,Visual Persistence DSO

300MHz/200MHz/100MHz/70MHz Bandwidth ,2 or 4 Input Channel
2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
2MegaPoints Record Length
1mV /div to 10V/div of Vertical Range
1ns/div to 100s/div of Time Base Range
80,000 wfm/s of Waveform Update Rate
8 inch 800600 High Resolution TFT LCD Display
Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length
Zoom Window and Play/Pause can Rapidly Navigate the Waveforms
36 Automatic Measurement Functions Offers Various Measurement Selections
Optional 8 or 16 digital channel with Logic analyzer(MSO)
Optional Function Generator
Flexible Remote Control Connectivity(Standard:USB ;Option:LAN/GPIB)
Upgradable CAN/LIN bus analysis ,Advanced Logic ,Datalog ,DVM and H-expansion functionalities

2GSa/s Real-time Sampling Rate and up to 300MHz Bandwidth

GDS-2000A Series Digital Storage Oscilloscope offers 2 and 4-channel configurations and wide bandwidth selections, including 300MHz, 200MHz, 100MHz and 70MHz. Each model provides 2GSa/s maximum real-time sampling rate and 100GSa/s high-speed equivalent-time sampling rate. Equipped with an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, the GDS-2000A Series is able to faithfully demonstrate waveforms of complicated and obscure signals.

2Mega Point Record Length, Waveform Search and Segmented Memory Functions

The GDS-2000A Series provides 2Mega point record length, and Waveform Search and Segmented Memory functions as standard features. The events of interest can be captured and saved into the Segmented Memory, which can be divided into 2048 sections, for observation, while the irrelevant waveforms can be ignored. Consequently, the overall efficiency of memory usage can be enhanced. Under Waveform Search mode, after the input signal is triggered, the GDS-2000A Series is able to Search and Mark the waveform sections, which comply with user-defined search condition and threshold level within the whole memory. Meanwhile, with Zoom window and Play/Pause button to scroll through whole displayed waveform, the user can rapidly navigate all the waveforms in an efficient way.

Accesorii standard

Quick start guide*1 ,User manual CD*1 ,Power Cord*1

GTP-070A-4:70MHz(10:1/1:1) Switchable passive probe for GDS-2072A/2074A(One per channel)
GTP-150A-2:150MHz(10:1/1:1) Switchable passive probe for GDS-2102A/2104A(One per channel)
GTP-250A-2:250MHz(10:1/1:1) Switchable passive probe for GDS-2202A/2204A(One per channel)
GTP-350A-2:350MHz(10:1/1:1) Switchable passive probe for GDS-2302A/2304A(One per channel)

Option Accessories

GTL-08LA:8-channel Logic Analyzer probe
GTL-16LA:16-channel Logic Analyzer probe
GLA-08:8-channel Logic Analyzer Card
GLA-16:16-channel Logic Analyzer Card

Optiuni recomandate

Options

DS2-LAN Ethernet & SVGA output
DS2-GPIB GPIB Interface
DS2-FGN DDS Function Generator
DS2-08LA 8-Channel Logic Analyzer (Includes 8-channel Logic analyzer card(GLA-08) and 8 channel Logic analyser probe(GTL-08LA)
DS2-16LA 16-Channel Logic Analyzer(Includes 16-channel Logic analyzer card(GLA-16) and 16 channel Logic analyser probe(GTL-16LA)
