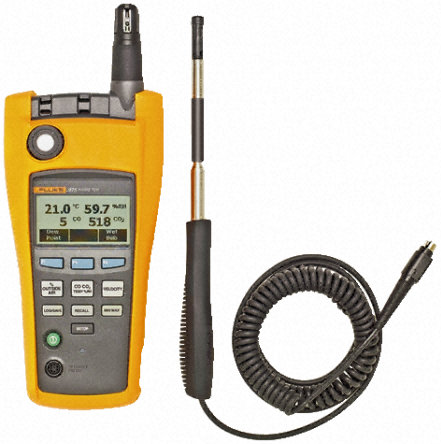

Tester multifunctional Temperatura, Umiditate, Viteza aer, CO, CO2 Fluke 975

Cod: Fluke 975 AirMeter




Brosura produs PDF, 0.42 Mb

Descriere

  • Temperature -20 °C to 50 °C (-5 °F to 122 °F)
  • Velocity 0.25 m/sec to 15 m/sec
  • Relative Humidity 10 % to 90 % RH, non-condensing
  • CO2 0 to 5000 ppm
  • CO 0 to 500 ppm



  • Respond to comfort-related calls from occupants.
  • Verify the operation of building HVAC control systems.
  • Determine whether adequate ventilation exists.
  • Monitor air flow and velocity.
  • Test for dangerous carbon monoxide leaks.
  • Perform duct traversals.
  • Optimize HVAC systems to manage energy costs



  • Simultaneously measures, logs, and displays temperature, humidity, CO2, and CO on a bright, backlit LCD display
  • One-touch air flow and velocity with available probe*
  • Wet bulb and dew point temperature
  • % of outside air calculation
  • CO2 and CO field calibration feature
  • Self-test function at startup
  • Auto-backlight
  • Automatically compensates for barometric pressure changes
  • Min/Max/Average on all measured and calculated readings
  • Multi-language user interface
  • Metric or standard units
  • Audible and visual threshold alarms
  • Extensive discrete or continuous data logging capacity, downloadable to PC via USB interface
  • Keypad lock for security
  • Included FlukeView Forms® software


Accesorii standard

Fluke 975V      AirMeter™ with Velocity

Fluke 975         AirMeter™





  • A4 alkaline batteries (3)
  • Users Manual
  • Calibration Cap
  • FlukeView Forms Software
  • Power Adapter
  • International Power Plugs
  • Air Velocity Probe (Fluke 975V only)
