Cod: Flir SC8000
Descriere

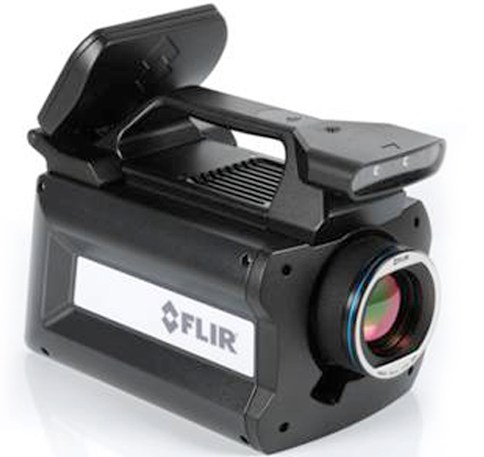

FLIR SC8000 / SC6000 Series
For the most demanding R&D professional
Thermal images of up to 1280 x 1024 pixels (FLIR SC8400) will show you the smallest of details and assure excellent measurement accuracy.
The FLIR SC8000 / SC6000 Series thermal imaging cameras are designed to provide the best thermal measurement performance together with the most advanced connectivity. They are ideal for Scientists and R&D professionals that are working on the most demanding applications. All FLIR’s knowledge is concentrated in this full featured, yet compact camera, providing ultra-sensitive and accurate measurements. State-of-the-art connectivity and ease of use allow the user to concentrate on the experiment and not on the camera.
Best possible image quality
The FLIR SC8400 is equipped with a cooled Indium Antimonide detector that produces crisp thermal images of 1280 x 1024 pixels. It allows seeing the smallest of details and offers 4 times more thermal data than the standard 640 x 512 pixels images.
Users that do not need this amount of pixels can choose for the FLIR SC6000 Series. It provides thermal images of 640 x 512 pixels.
High sensitivity
The FLIR SC8000 / SC6000 Series detect temperature differences smaller than 25mK (18mK typically). With the "lock-in" process temperatures differences as small as 1mK will become clearly visible.
Auto exposure
The camera automatically adjusts its temperature range to best fit the thermal scene.
Outstanding measurement accuracy
High accuracy of +/- 1ºC or +/- 1% produces sensitive thermal images. The FLIR SC8000 / SC6000 Series can measure temperatures up to +3,000º C
Ultra high frame rate with windowing
The FLIR SC8000 Series have an adjustable frame rate of up to 100 Hz full frame. The FLIR SC6000 Series have an adjustable frame rate of up to 125 Hz. The FLIR SC8000 / SC6000 Series can deliver images up to a speed of 3,000 Hz. Windowing allows a subset of the total image to be selectively read out with user adjustable window size. The sub-sample windows can be arbitrarily chosen and are easily defined.
CLUT™ Detector working domain improvement
Increase the useful range of detector by removing residual non linearities. This unique industry first FLIR processing, extends the working domain of the camera to its limits.
CNUC™ Calibration
CNUC is a proprietary calibration process that provides beautiful imagery and measurement stability. CNUCTM allows for flexible integration time adjustments without the need to perform non-uniformity corrections. CNUCTM calibration also produces accurate measurement stability regardless of camera exposure to ambient temperature variations.
Hypercal™
Ensures the best measurement range with the highest sensitivity. Simply set the desired lower and upper temperature limits and the camera will automatically adjust to the appropriate integration (exposure) time.
Superframing
"Superframing" allows the acquisition of thermal data from up to four user-defined temperature ranges simultaneously, then merges those streams into a single real-time data stream that spans all four temperature ranges, effectively extending dynamic range from 14-bit to 16-bit.
Visual camera with LEDs
The visual image can be used as a reference against the thermal image. LED light assures clear visual images even in dark environments.
Wifi
Transfer images and control the camera wirelessly via a smart phone (iPhone) or tablet PC (iPad).
Wide range of interchangeable lenses
The FLIR SC8000 / SC6000 Series come with an advanced high performance optical design with lens recognition and automatic measurement adjustments. The SC6000 Series also feature a high performance Ultrasonic Motor USL (Ultrasonic Smart Lens) mechanism for fast and smooth remote focusing. It is also possible to manually adjust the focus directly on the camera.
A temperature probe is integrated in the lens for improved measurement accuracy and drift compensation.
A wide range of lenses and various extension rings are available.
Motorized filter wheel
The FLIR SC8000 / SC6000 Series contain a 4 slots motorized filter wheel with automatic filter recognition and measurement parameter adjustment. The removable filter holders contain an integrated temperature probe for improved measurement accuracy.
Connectivity
The FLIR SC8000 / SC6000 Series offer a wide range of connectivity options:
Camera Link medium for full bandwidth data acquisition
Gigabit Ethernet for simple connectivity
Standard BNC connectors for often used features such as Detector Sync, Acquisition trigger, analog lockin input, Composite video output
MicroSD-card slot
DVI-output compatible with 1080p
An extension port with advanced features and connections is available
6 digital Inputs/Outputs to interface with other equipment
Analog linear temperature output providing real time feedback of the observed scene temperature (full image or region of interest)
Extra analog inputs for external sensors acquisition, tagged within the image
IRIG-B / 1 PPS connection for external time stamping
Function generator with adjustable waveform, frequency and amplitude
Removable Touchscreen LCD
The detachable touchscreen LCD provides you with on-site image feedback and camera configuration parameters. You can easily adjust the camera to your needs. One touch on the screen controls the acquisition on the computer.
The LCD touchscreen can be removed from the camera when the FLIR SC8000 / SC6000 Series needs to be installed in a hard to reach position. Just position your camera and control it from a distance.
Configuration management
Save your camera configuration to the SD-Card when loaning your camera to your colleague. Once back, just insert your SD-card and get the camera up and running with exactly your configuration. Stop wasting time to reconfigure your thermal measurement system.
Global Status LED
Located on the top of the camera, the global status LED provides you with instant system status, including ResearchIR status. When green, no doubt your experiment with be fully acquired. The back panel LEDs instantly inform you about the camera status.
The FLIR SC7000 Orion Series are infrared multispectral imagers capable of producing IR sub-band images at video rates within the SW-MWIR or LWIR region. Infrared radiation from the scene under investigation is collected through a front lens, designed to offer minimal aberration across the full IR wavelength range.
Configurable filter wheel setup to match different type of analysis
The Orion integrates a high speed 2x4 position filter wheel. It is inserted between the lens and the focal plane. The rotation of this filter wheel is driven synchronously with the FPA clocking, such that a single image snap shot is obtained for each particular filter position.
Versatile system with traditional thermal imaging camera mode
The Orion SC7000 is capable of capturing up to 400 frames per second in 320 x 240 pixels, each high quality image being captured in snap-shot mode. The integration time is variable by software and can be different for each filter. An image is captured for each given position of the filter wheel, providing true multispectral imaging. The Orion SC7000 Series can also be used as a normal IR camera at full speed by removing or stopping the filter wheel. In addition to image acquisition, ALTAIR software also processes the acquired image data.
FLIR SC8000 / FLIR SC6000
Model description
|
|
SC8400 |
SC6550 |
|
Imaging performance | ||
|
Resolution |
1280 x 1024 |
640 x 512 |
|
Frame rate |
100 Hz |
125 Hz |
|
Motorized focus mechanism |
no |
yes |
|
Well Capacity |
5.8 M electrons |
6.5 M electrons |
|
Digital Data Streaming |
Simultaneous Gigabit Ethernet and Camera Link Medium |
Simul. GigE and Camera Link Base |
|
Focus |
Manual |
USL mechanism or manual |
|
| ||
|
Optics | ||
|
Avalable optics |
28mm - 38° x 31° |
12mm - 44° x 36° - USL Motorized |
General
|
Detector | ||||||||||
|
Detector Type |
Indium Antimonide (InSb) | |||||||||
|
Spectral Range |
1.5 - 5.1 µm | |||||||||
|
Detector Pitch |
15 µm | |||||||||
|
NETD |
<25 mk (20 mk Typical) | |||||||||
|
Operability |
>99.5% | |||||||||
|
Sensor Cooling |
Closed Cycle Rotary | |||||||||
|
| ||||||||||
|
Electronics / Imaging | ||||||||||
|
Readout |
Snapshot Digital | |||||||||
|
Readout Modes |
Asynchronous Integrate While Read; Asynchronous Integrate Then Read | |||||||||
|
Synchronization Modes |
IRIG-B; Sync In, Trigger In | |||||||||
|
Image Time Stamp |
Internal IRIG-B Decoder Clock / TSPI Accurate Time Stamp | |||||||||
|
Integration Time |
500 ns to Full Frame rate, with auto exposure | |||||||||
|
Subwindow Mode |
User-Defined | |||||||||
|
|
14-bit , 16 bits with TRE | |||||||||
|
Analog Video |
NTSC, PAL | |||||||||
|
HD Video |
DVI 1080p / 720p | |||||||||
|
Command and Control |
Gigabit Ethernet, Camera Link Medium, Detachable LCD Display, WiFi | |||||||||
|
| ||||||||||
|
Measurement | ||||||||||
|
|
+5°C to +300°C | |||||||||
|
Optional |
Up to +3,000°C | |||||||||
|
Accuracy |
±1°C or ±1% of | |||||||||
|
Calibration |
Custom calibration on request | |||||||||
|
| ||||||||||
|
Optics | ||||||||||
|
Camera f/# |
2.0 | |||||||||
|
Filtering |
4× Position Motorized, with drift compensation and automatic identification | |||||||||
|
| ||||||||||
|
Image Presentation | ||||||||||
|
On-Camera Display |
Detachable Touchscreen LCD Display (800 × 480) | |||||||||
|
Analog Palettes |
Selectable 8-bit | |||||||||
|
Automatic Gain Control |
Manual, Linear, ROI | |||||||||
|
Analog Overlay |
Temperature Measurement & Scale | |||||||||
|
Image Analysis |
On-Camera Temperature Analysis | |||||||||
|
Visible Image |
5 Megapixel from Integrated Visible Camera | |||||||||
|
General | ||||||||||
|
Accesorii standard SC8400 Advanced Package: SC8400, 50 mm Lens, Temperature Calibration, Multi-IT, Triggering, IRIG-B, ResearchIR Max Software Alte produse FLIR
