Camera termala securitate retea cu senzor multiplu Flir Seria PT
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Flir PT-Series




Descriere

FLIR PT-Series



Network-Ready Pan-Tilt, Multi-Sensor Thermal Security Cameras PT-Series thermal security cameras let you see intruders and other threats to your facility’s security clearly in total darkness and in bad weather. The PT-Series precision pan/tilt mechanism gives operators accurate pointing control while providing fully programmable scan patterns, radar slew-to-cue, and slew-to-alarm functionality.Fully enabled for control and operation over digital and serial networks, PT-Series thermal cameras are available in 160 × 120, 320 × 240, and high-resolution 640 × 480 formats, providing up to sixteen times the image clarity and longer threat detection range performance than lower resolution thermal cameras. Multi-sensor configurations also include a day/night 36× zoom color CCD camera on the same pan/tilt package.



  • The user can choose for a version equipped with an uncooled Vanadium Oxide (VOx) microbolometer producing crisp images of 640 x 480 pixels. Users that do not need this image quality can choose for a 320 x 240 pixels version. Models with a 160 x 120 pixels detector are also available. More pixels allow the user to see more detail and to detect more and smaller objects. Advanced internal camera software delivers a crisp image without the need for user adjustments. It provides high quality thermal imaging in any night- or daytime environmental conditions.
  • All PT-Series thermal imaging cameras are installed on a precision pan/tilt mechanism. It allows the user to rotate the camera 360° continuously and to tilt it +90° or -90°. This drastically increases situational awareness. The Pan/Tilt has 128 preset postions. Ideal if you want to scan an area continuously.
  • The PT-Series can be connected by the integrator to a radar system. If the radar detects an object, the PT-Series will automatically turn in the right direction and give you a visual image so that you can instantly see what the blip on the radar screen really means.
  • All versions are equipped with a long range daylight/low light camera. The video output of the thermal imaging and daylight/low light camera are simultaneously available. The daylight camera offers an 36x optical zoom.
  • The PT-Series provide high contrast imagery optimized to get the most out of video analytics software. Digital Detail Enhancement ensures clear, properly contrasted thermal images in all weather conditions.
  • Equipped with a 100 mm lens, the PT-606 is designed for mid-range security and surveillance applications. The PT-606 has a 6° field of view. With the PT-606 you will be able to detect a man-sized target at a distance of over 2.4 km.
  • Equipped with an "athermal lens", all PT-Series are able to maintain focus no matter what the environmental temperature is. There is no need for user adjustments.
  • The PT-Series are extremely rugged systems. Their vital core is well protected, IP66 requirements, against dust and water ingress.
  • Exchangeable camera cassettes allow for quick upgrade or repair of sensors and optics. There is no need to send your camera back to the factory if you want to upgrade to better image quality or more range performance. This can easily be done in the field.
  • The PT-Series can be integrated in any existing TCP/IP network and controlled over a PC. No additional cables are required. Using this configuration, you can monitor all activity over the network, even when you are thousands of kilometers away.
  • Simply connect the PT-Series over RS-232, RS-422 or RS-485 to a remote control panel. Pelco D or Bosch commands are used for common functions. A video cable can be connected to any existing multi-function display that accepts composite video.
  • Multiple channels of streaming digital video are available in H.264, MPEG-4, or M-JPEG formats. Simultaneous digital and composite video output is possible.
  • Each PT-Series camera comes with a single sensor copy of FLIR Sensors Manager. This intuitive software allows users to manage and control a PT-Series camera in a TCP/IP network.





Imaging performance

Thermal:



Detector type

Focal Plane Array (FPA), uncooled Vanadium Oxide microbolometer

Spectral range

7.5 to 13µm

Thermal sensitivity

<50mK f/1.0

Image frequency

25 Hz or 7.5Hz

Focus

Focus free, athermal lens

Image processing

Automatic Gain Control (AGC), Digital Detail Enhancement (DDE)

Visual:



Built-in digital video

1/4" Exview HAD CCD

Effective pixels

380.000

Standard lens performance

FOV: 57.8° (H) to 1.7° (H) f=3.4mm (wide) to 122.4 mm (tele), F1.6 to F4.5

Optical zoom

36x

Electronic zoom

12x





PAN- TILT

Az Range; Az velocity

360° continuous, 0.1 to 70°/sec max.

El Range; El velocity

+/- 90°, 0.1 to 30°/sec. Max.

Programmable presets

128





System features

Automatic heater

Clears ice from windows





Image presentation

Video output

PAL thermal and visible - NTSC thermal and visible

Video over Ethernet

Two independent channels of streaming MPEG-4, H.264, or M-JPEG





Power

Requirements

24 VAC (21-30 VAC)
24 VDC (21-30 VDC)

Consumption

24 VAC:85 VA nominal, 295 VA max w/heater
24 VDC:65 W nominal, 195 W max w/heater





Environmental specification

Operating temperature range

-40°C to +55°C

Storage temperature range

-50ºC to +85ºC

Encapsulation

IP66

Shock

IEC 60068-2-27

Vibration

Mil-Std-810F





Physical characteristics

Camera Weight

22 kg

Camera Size (L x W x H)

348 mm × 467 mm × 326 mm

Shipping weight (camera + packaging)

27 kg

Shipping size (camera + packaging) (L x W x H)

589 mm x 492 mm x 386 mm





Interfaces

TCP/IP

Yes

RS-422

Yes

RS-232

Yes

Pelco D

Yes

Bosch

Yes





Standard package

Thermal imaging camera, operator manual, FLIR Sensors Manager single sensor CD







PT-Series: version specific specifications

Sensor resolution

160 x 120

320 x 240

640 x 480

Name/Focal lenght/ Field of view

PT-124: 9 mm lens - FOV: 24°(H) × 20°(V)
PT-117: 13 mm lens - FOV: 17°(H) × 14°(V)
PT-112: 19 mm lens - FOV: 12°(H) × 10°(V)

PT-348: 9 mm lens - FOV: 48°(H) x 39°(V)
PT-334: 13 mm lens - FOV: 34°(H) x 28°(V)
PT-324: 19 mm lens - FOV: 24°(H) x 19°(V)
PT-313: 35 mm lens - FOV: 13°(H) x 10°(V)
PT-307: 65 mm lens - FOV: 7°(H) x 5°(V)
PT-304: 100 mm lens - FOV: 4.6°(H) x 3.7°(V)

PT-645: 13 mm lens - FOV: 45°(H) × 37° (V)
PT-625: 25 mm lens - FOV: 25° (H) × 20°(V)

PT-618: 35 mm lens - FOV: 18° (H) × 14°(V)
PT-612: 50 mm lens - FOV: 12° (H) × 10°(V)
PT-610: 65 mm lens - FOV: 10° (H) × 8°(V)

PT-606: 100 mm lens - FOV: 6.2° (H) × 5°(V)

Electronic zoom

2x

2x and 4x

2x and 4x



Accesorii standard

  • Thermal imaging camera
  • operator manual
  • FLIR Sensors Manager single sensor CD


Alte produse FLIR

FLIR SCOUT PRO III II CAMERA MONOCULAR INFRAROSU CU TERMOVIZIUNE PENTRU SUPRAVEGHERE FRONTIERA, PATRULA MARINA

• Monoclu cu imagistică termică pentru profesioniștii din domeniul aplicării legii
• Flir Scout Pro III este construit pentru profesioniștii care au nevoie de rază de acțiune și claritate în cele mai solicitante medii
• Cu o rază de detecție de până la 1500 de metri,
• câmp vizual de 12° și un obiectiv cu focalizare manuală de 50 mm
• imagistică termică de precizie pentru supravegherea frontierelor, patrulele marine și monitorizarea zonelor extinse



FLIR GX320 G620 GX620 CAMERA INSPECTIE OPTICA EMISII GAZE HIDROCARBURI METAN COMPUSI ORGANICI VOLATILI VOC PETROL

• FLIR Gx320, G620 și Gx620 sunt camere inovatoare de imagistică optică a gazelor (OGI)
• concepute pentru a detecta emisiile de hidrocarburi, metan (CH₄) și alte compuși organici volatili (COV) din mai multe etape ale lanțului de aprovizionare cu petrol și gaze, precum și din alte piețe industriale



FLIR I64 CAMERA TERMOVIZIUNE INFRAROSU 480X640PXL

• Cameră de termoviziune cu funcție de aplicație
• Rezoluție termică de 480 × 640
• <40 mK NETD



FLIR K2 CAMERA TERMALA PENTRU POMPIERI

• Robustă. Fiabilă. Salvează vieți.



FLIR TG298 CAMERA TERMOVIZIUNE PORTABILA

• Rezoluție termică 160 × 120
• -25°C până la 1080°C (-13°F până la 1976°F)
• Interpretează imaginile cu MSX®, care îmbunătățește imaginile termice cu detalii vizuale clare



FLIR G306 CAMERA INSPECTIE OPTICA GAZE HEXAFLUORIT SF6 AMONIAC NH3 ETILENA C2H4

• FLIR G306 este o cameră inovatoare de imagistică a gazelor (OGI)
• utilizată pentru a vizualiza hexafluorură de sulf (SF₆), amoniac (NH₃), etilenă (C₂H₄) și alte scurgeri de gaze industriale în diverse medii.



FLIR TG165-X CAMERA INFRAROSU

• Rezoluție termică 80 × 60
• -25°C până la 300°C (-13°F până la 572°F)
• Interpretați imaginile cu MSX®, care îmbunătățește imaginile termice cu detalii vizuale clare

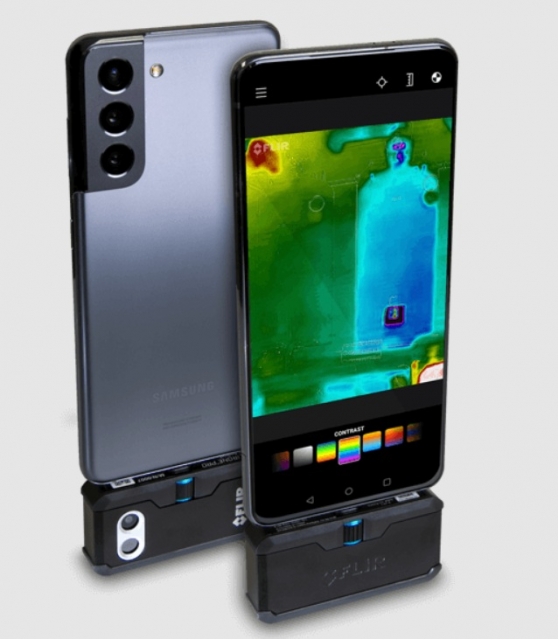

CAMERA TERMOVIZIUNE INFRAROSU PENTRU TELEFON MOBIL FLIR ONE ANDROID IPHONE
