Camera termala pentru conducatori transport auto Flir PathfindIR
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Flir PathfindIR




Brosura produs PDF, 0.69 Mb


Descriere

PathfindIR™

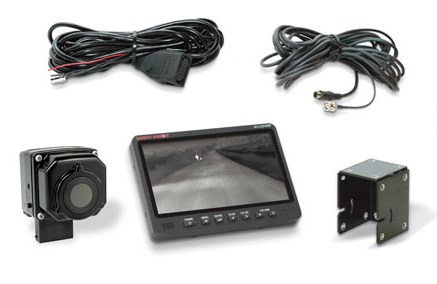

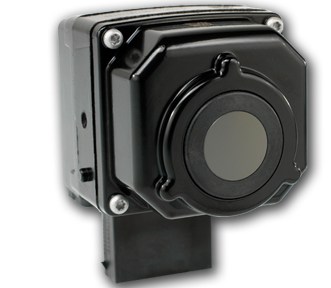

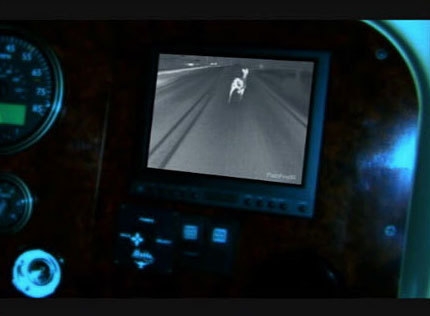

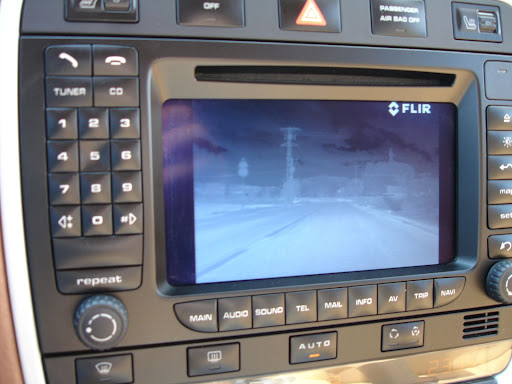

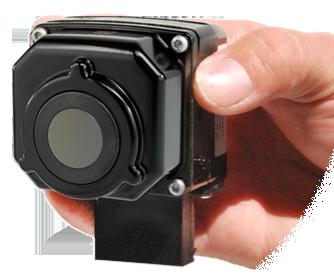

The FLIR Systems PathFindIR is a compact thermal imaging camera that significantly reduces the hazards of night time driving. Automotive Night Vision Systems enable drivers to detect and monitor potential hazards on or near the road, allowing more time to react to any potential danger. PathFindIR Thermal imager helps the user recognize pedestrians, animals, or objects in total darkness, smoke, rain and snow. The PathFindIR module can be integrated into military vehicle designs, or adapted for aftermarket commercial vehicle applications. The PathFindIR is available in 25 Hz PAL / 30 Hz NTSC or 8.3 Hz PAL / 7.5 Hz NTSC.



  • The PathFindIR incorporates an uncooled 320 x 240 pixels microbolometer. This maintenance free system delivers crisp video images which can be displayed on virtually any display that accepts composite video.
  • The PathFindIR is equipped with an 19 mm wide angle lens. It give you an extremely wide field of view (36°), resulting in excellent situational awareness.
  • The PathFindIR is extremely rugged. Its  vital core is well protected against humidity and water. The PathFindIR can be cleaned with a hose just like any other equipment. The PathFindIR operates between -40°C and +80°C.
  • The PathFindIR is extremely compact (5.8 x 5.7 x 7.2 cm) and weighs only 360 grams. This allows for easy integration in any vehicle. The PathFindIR can easily be installed behind a vehicle grill or in any other compact location.
  • A 6 meter long cable is available for routing the PathFindIR’s power and video interface into a passenger compartment. On one side the cable connects to the PathFindIR. On the other end it has 2 wires that can be terminated, as required by the user, for hooking into the vehicle power bus and a video cable that is terminated with a BNC connector. It can be adapted to the video input connections on most standard monitors.



PathfindIR™ Technical Specifications



IMAGING PERFORMANCE

Detector type

Focal Plane Array (FPA), uncooled microbolometer 324 x 256 pixels

Spectral range

8 to 14µm

Field of view

36° (H) x 27° (V) with 19 mm lens

Spatial resolution (IFOV)

2 mrad

Thermal sensitivity

100 mK at +25°C

Image frequency*

8.3 Hz PAL or 7.5 Hz NTSC *

Focus

Automatic (25 m to infinity)

Image processing

Digital Detail Enhancement (DDE)





SYSTEM FEATURES

Time to image

< 2 seconds

Automatic Heater

When window temperature is below +4°C





IMAGE PRESENTATION

Video output

RS170 EIA/NTSC or CCIR/PAL composite video, 75O

Connector types

BNC, with optional pigtail cable





POWER

Requirements

6 - 16 V DC

Consumption

2 W quiescent, 6 W max (with window heater on)





ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

-40°C to +80°C

Storage temperature range

-57°C to +105°C (Extended storage time above +40°C is not recommended due to reduction in service life)

Humidity

6,500 hours at 81%rh at +25°C and salt spray per IEC 60068-2-11Ka

Sand/dust

Mil-Std810

Icing

Heater will defrost 2 mm of ice within 15 minutes at -30°C and wind speed of 100 km/h

Encapsulation

Hermetically sealed enclosure

Shock

5 30g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per IEC 60068-2-27Ea

Vibration

IEC 60068-2-64





PHYSICAL CHARACTERISTICS

Camera Weight

360 grams

Camera Size

57.4 mm x 56.1 mm x 71.4 mm excluding connector which protrudes an additional 28.7 mm

* 30 Hz NTSC or 25 Hz PAL available. Subject to approval of the US Department of Commerce for use outside the USA.

CAUTION:  PathFindIR is designed for the automotive 12 V DC power environment and conforms to ISO 7637-2 requirements for transients and disturbances on the typical automotive power system.  If the PathFindIR is installed in applications other



Alte produse FLIR

FLIR G609 CAMERA TERMICA INSPECTIE CAZANE SI CUPTOARE INDUSTRIALE TEMEPRATURI RIDICATE

• FLIR G609 este concepută pentru a eficientiza inspecțiile în aplicațiile industriale cu cuptoare la temperaturi ridicate
• Aceste camere cu infraroșu sunt ideale pentru monitorizarea tuturor tipurilor de cuptoare, încălzitoare și cazane, în special în industria chimică, petrochimică și utilități.



FLIR T540 CAMERA TERMALA INFRAROSU

• Rezoluție termică 464 × 348
• Măsoară temperaturi de până la 1500°C (2732°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval



FLIR K2 CAMERA TERMALA PENTRU POMPIERI

• Robustă. Fiabilă. Salvează vieți.



FLIR SI1-LD CAMERA ACUSTICA SCAPARI GAZE AER COMPRIMAT

• Detectează automat scurgerile de aer comprimat și de vid de la o distanță de până la 130 de metri (427 de picioare).
• Tehnologia de suprimare a zgomotului asigură utilizarea neîntreruptă în medii industriale zgomotoase

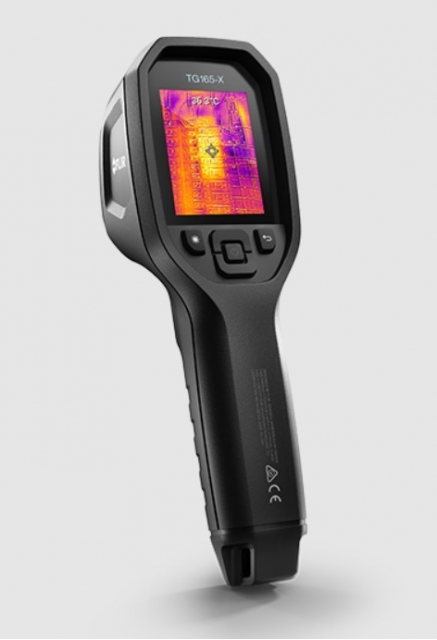

FLIR TG165-X CAMERA INFRAROSU

• Rezoluție termică 80 × 60
• -25°C până la 300°C (-13°F până la 572°F)
• Interpretați imaginile cu MSX®, care îmbunătățește imaginile termice cu detalii vizuale clare

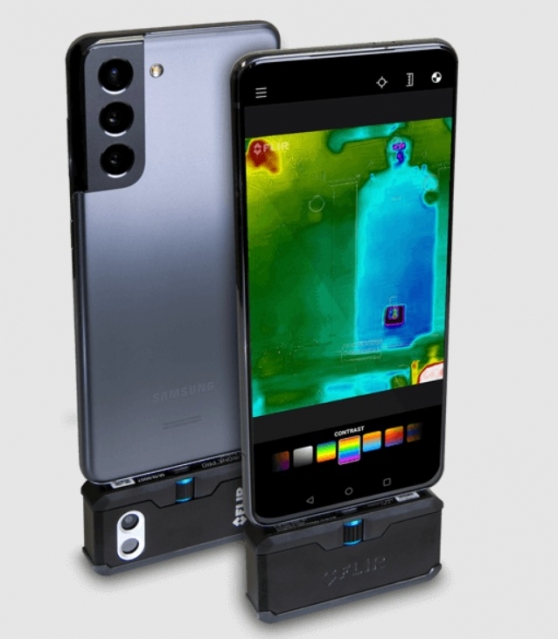

FLIR ONE PRO CAMERA INFRAROSU PENTRU TELEFON

• Rezoluție nativă 160 × 120, super rezoluție 480 × 360
• Măsurați temperaturi de până la 400°C (752°F)
• Conector Flir OneFit cu înălțime reglabilă



FLIR E86 CAMERA INFRARED 464X348

• Imagistică termică 464 × 348
• Măsoară temperaturi de până la 550°C (1022°F)
• Focalizare automată asistată de laser



FLIR G343 CAMERA TERMOVIZIUNE INSPECTIE SCURGERI DIOXID DE CARBON CO2

• FLIR G343 este o cameră inovatoare de imagistică a gazelor (OGI)
• utilizată pentru a vizualiza posibile scurgeri de dioxid de carbon (CO₂) în sisteme complexe, inclusiv sisteme de recuperare îmbunătățită a petrolului, sisteme de captare a carbonului și generatoare de energie răcite cu hidrogen.

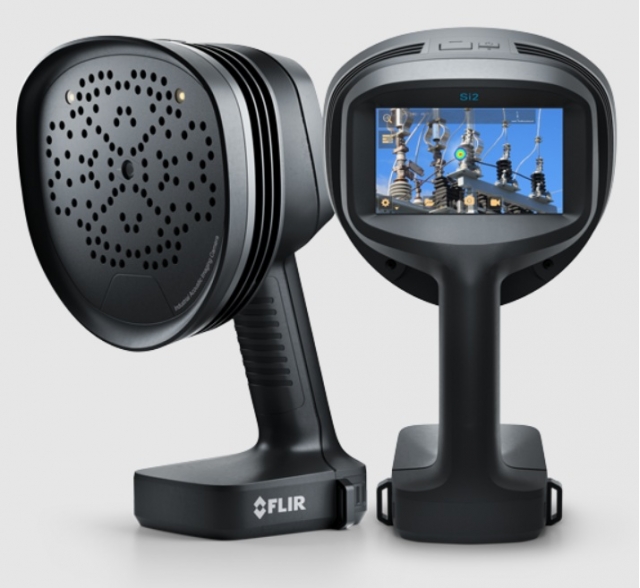

FLIR SI2-LD CAMERA ACUSTICA DETECTIE SCAPARI AER SI DEFECTE MECANICE RULMENTI
