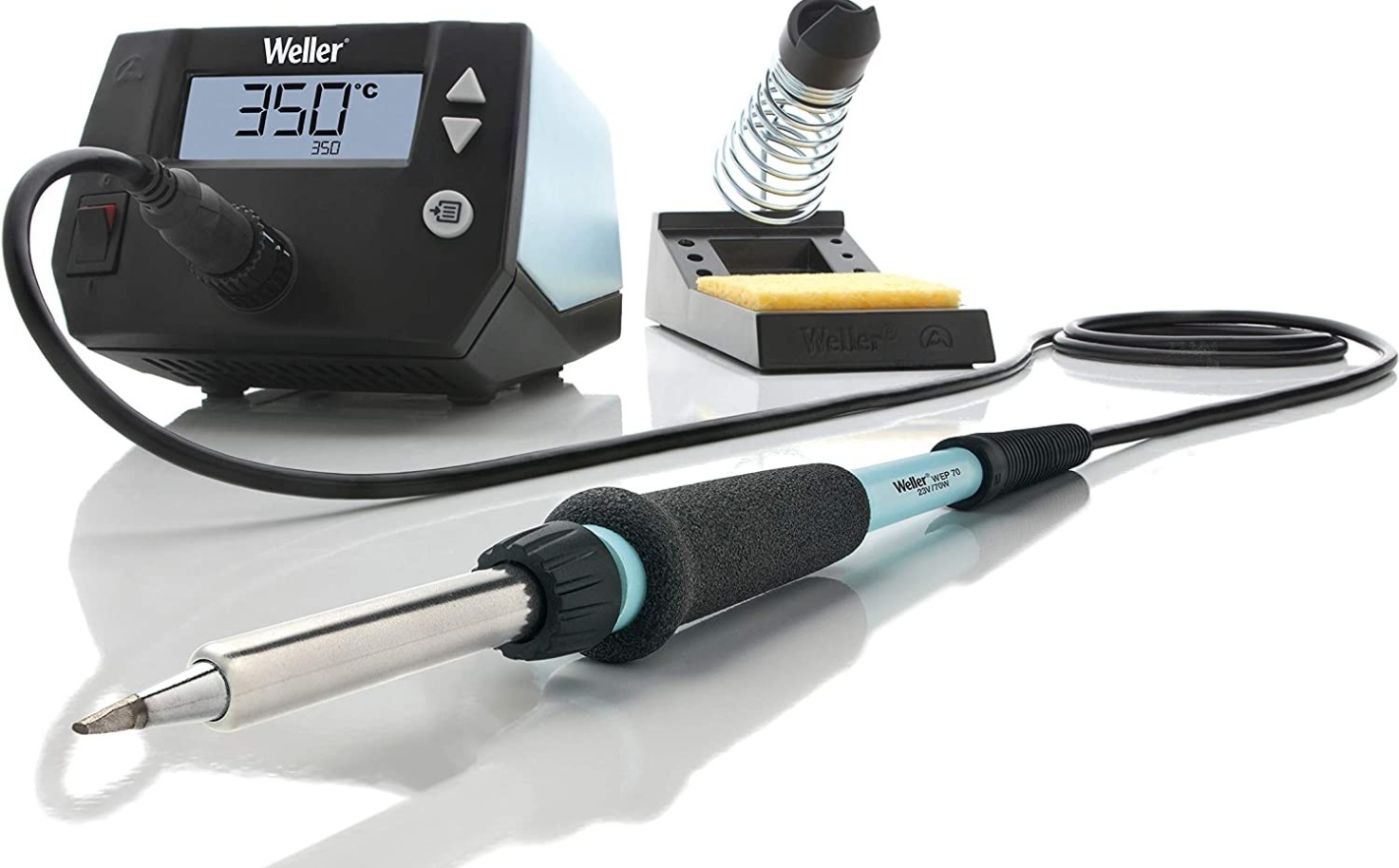

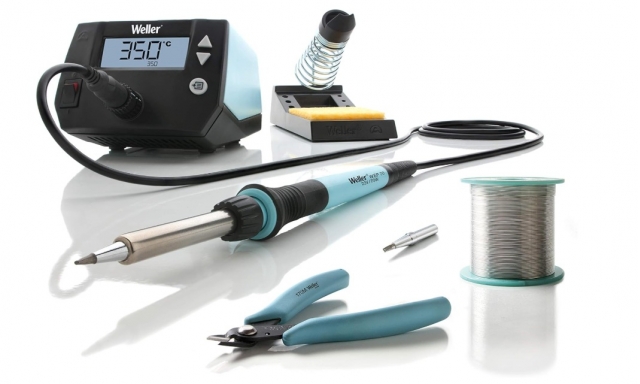

WELLER WE1010 Soldering Sation Set T0053298699

Code: WE1010 4003019439973 T0053298699




Datasheet PDF, 0.33 Mb

Description

WE1010 Set 230V
Item No.: T0053298699
1-Channel Power Unit, digital, 85 W

Product features
Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70

70 W solder iron with ergonomic handle and providing toolless tip change

ESD safe station, iron and heat-resistant silicon cable for safe handling

Using ET soldering tips

Standby mode and auto setback conserves energy, protects equipment

Password-protected to preserve settings

Replacement for 4ETH, 4ETK, 4ETO, 4ETS necessary. For WEP 70 4ETHL, 4ETKL, 4EKOL and 4ETSL must be used.

Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool.

Technical data
Height98mm
Length150mm
Dimensions L x W x H150.0 x 120.0 x 98.0mm
Approximate Heating Time (50–350 °C/120–660 °F)28 sec
ESD SafeYes
Number of Channels1
Power85 W
Temperature Accuracy °C± 5°C
Temperature Accuracy °F± 9°F
Temperature Range (Depends on Tool)Adjustable from 100°C - 450°C (200°F - 850°F)
Temperature Range °C100 - 450 °C
Temperature Range °F200 - 850 °F
Temperature Stability °C± 6°C
Temperature Stability °F± 10°F
Tip TypeET
UPC4003019439973
Voltage230V
Weight (Catalog)1.40 kg
Product FamilyWE Line Soldering Stations


Standard accessories

Accessories
The Weller WE1010 will be delivered including

Soldering station WE 1
Soldering iron WEP70
Soldering iron stand PH70
Sponge
Soldering iron tip (ETA, 1.6 mm)
Power cord


More products WELLER

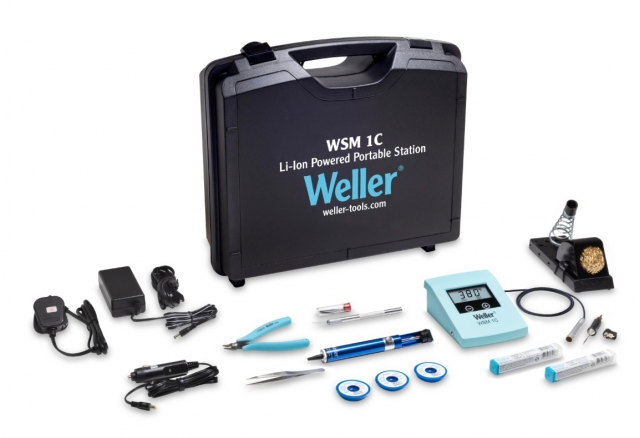

WELLER WSM1C T0053293390 MOBILE PORTABLE SOLDERING REPAIR KIT WITH BATTERY

• Mobile repair Kit with portable rechargeable battery soldering station
• The WSM1C is developed especially for users who need a portable, mobile and small soldering station for professional applications
• Powered by a rechargeable battery, the WSM1C soldering station can be easily operated outside laboratories or production lines, right where the job is.

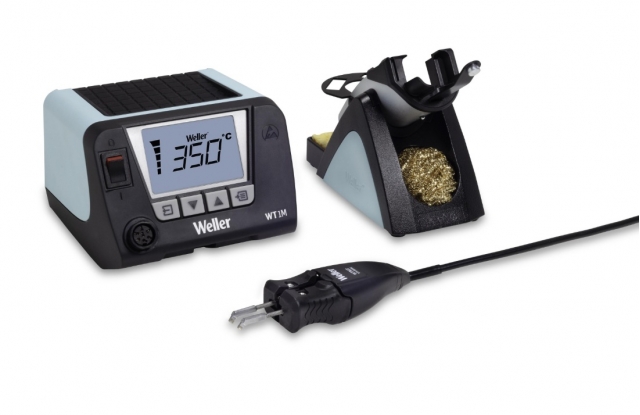

WELLER WT1012M T0053460699 REWORK KIT 95W FOR MICO NANO PICO SOLDERING

• This kit is designed for micro and nano / pico rework soldering tasks.
• 1 Channel Rework Kit, 95 W, 230 V



WELLER WS81 SOLDERING STATION T0053250699N

• Power 80 Watt
• Temperature 150 - 450 °C
• Temperature precision ± 9 °C
• Temperature stability ± 5 °C

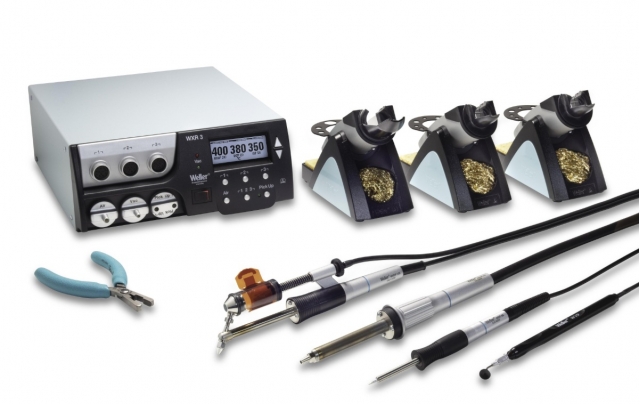

WELLER WXR3030 T0053501699N 3-CHANNEL 420W REWORK STATION

• Power unit WXR 3, 3 channels with WXHAP 200 Hot air iron, WXDP 120 Desoldering iron and WXP 65 Soldering iron

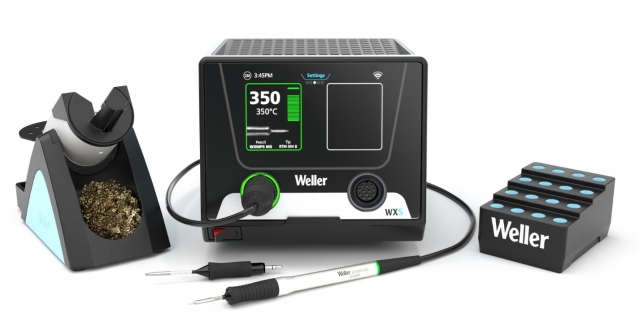

WELLER WXS2010 T0053454699 SOLDERING REWORG STATION 300W FOR MICRO NANO PICO APPLICATIONS

• Nano (Pico)/Micro Soldering Kit For every purpose
• A new soldering kit
• Optimized soldering set with 2 soldering tips for all pico (nano) and micro tasks in the electronics, medical and aerospace industries.

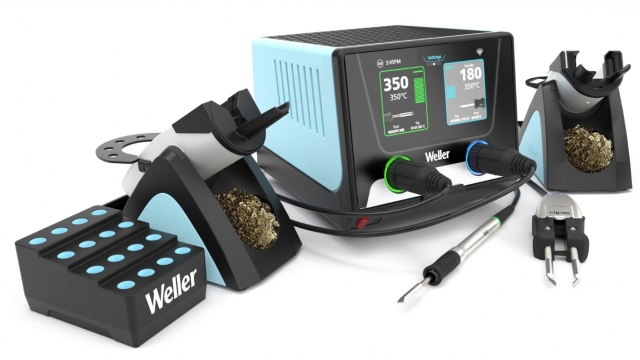

WELLER WXS2022 T0053458699 HEAVY DUTY SOLDERING STATION 150W

• Heavy Duty Rework Kit
• Weller's active tip technology (cartridge) provides optimized heat transfer with a maximum power of 150W, 24V.

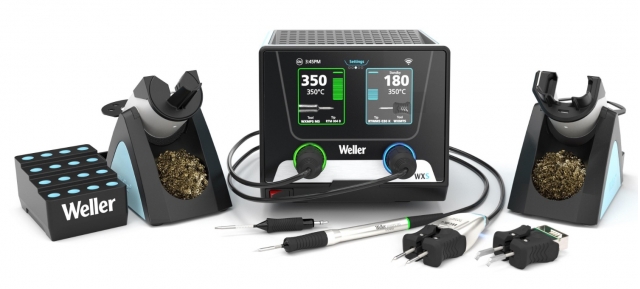

WELLER WXS2021 T0053457699 PICO MICRO SOLDERING SET

• Pico (Nano)/Micro Rework Kit For every purpose.
• Optimized rework system for all Pico (Nano) and Micro tasks in the electronics, medical, automotive and aerospace industry
• The set offers 1 soldering iron with 2 soldering tips from the smallest to bigger soldering application, as well as a desoldering tweezers with pico and micro tips.

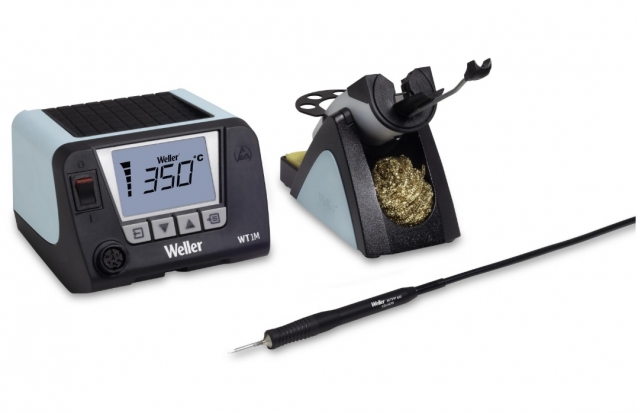

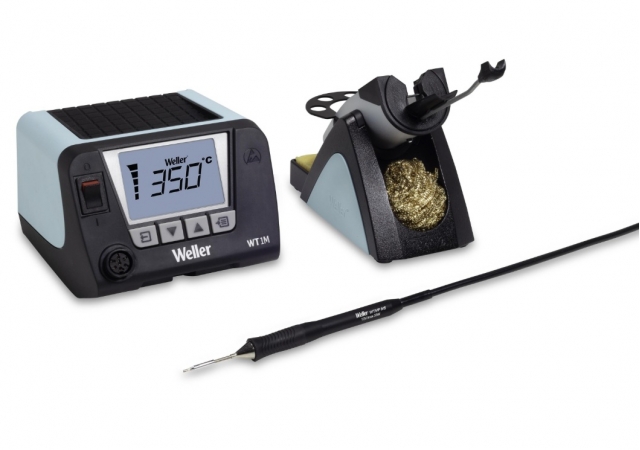

WELLER WT1010M T0053448699 SOLDERING STATION 95W WITH NANO-PICO PENCIL

• WT1011M Set 230V
• Item No.: T0053449699
• 1 Channel Nano/Pico Soldering Kit, 95 W, 230 V

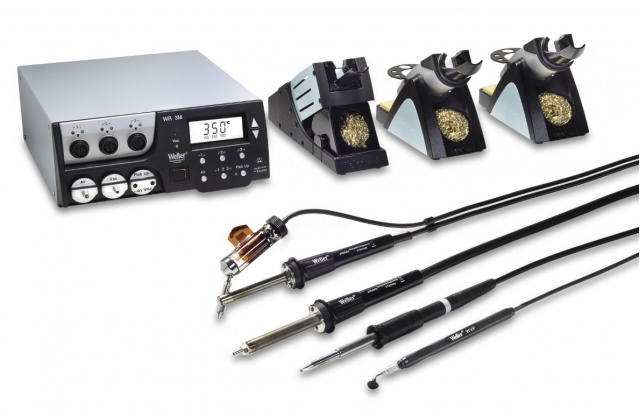

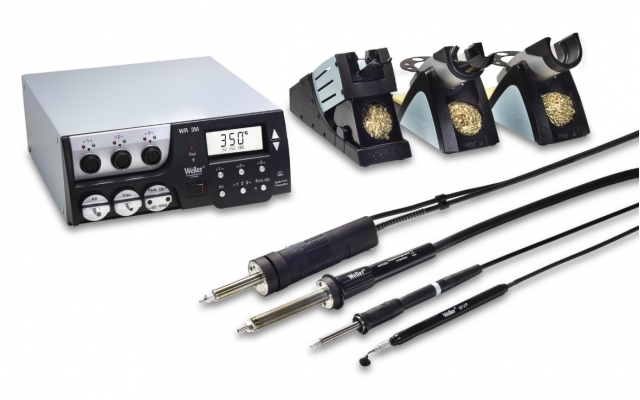

WELLER WR3000M DXV80 T0053368399N SOLDERING REWORK DESOLDERING HOT AIR STATION 3-CHANNEL 360W

• Power unit WR 3M, 3 channels with soldering iron WP 80, desoldering iron DXV 80 and hot air iron HAP 200
• Large all round set for all repair jobs
• Desoldering iron DXV 80 for vertical applications
• Simultaneous operation of hot air and desoldering

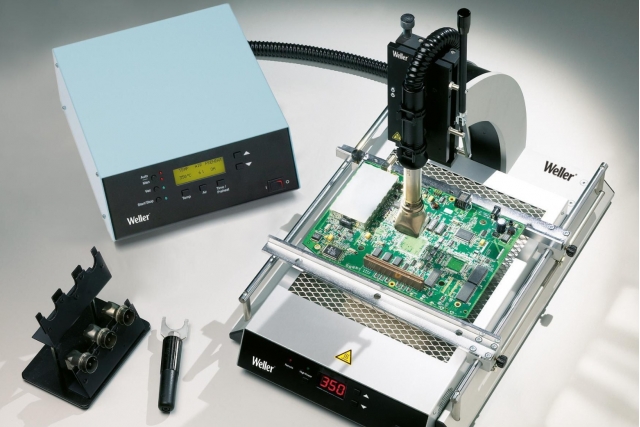

WELLER WHA3000VS T0053359699N HOT AIR REWORK SET WITH PCB HOLDER AND PREHEAT PLATE FOR COMPRESSED AIR OR INERT GAS OPERATION
