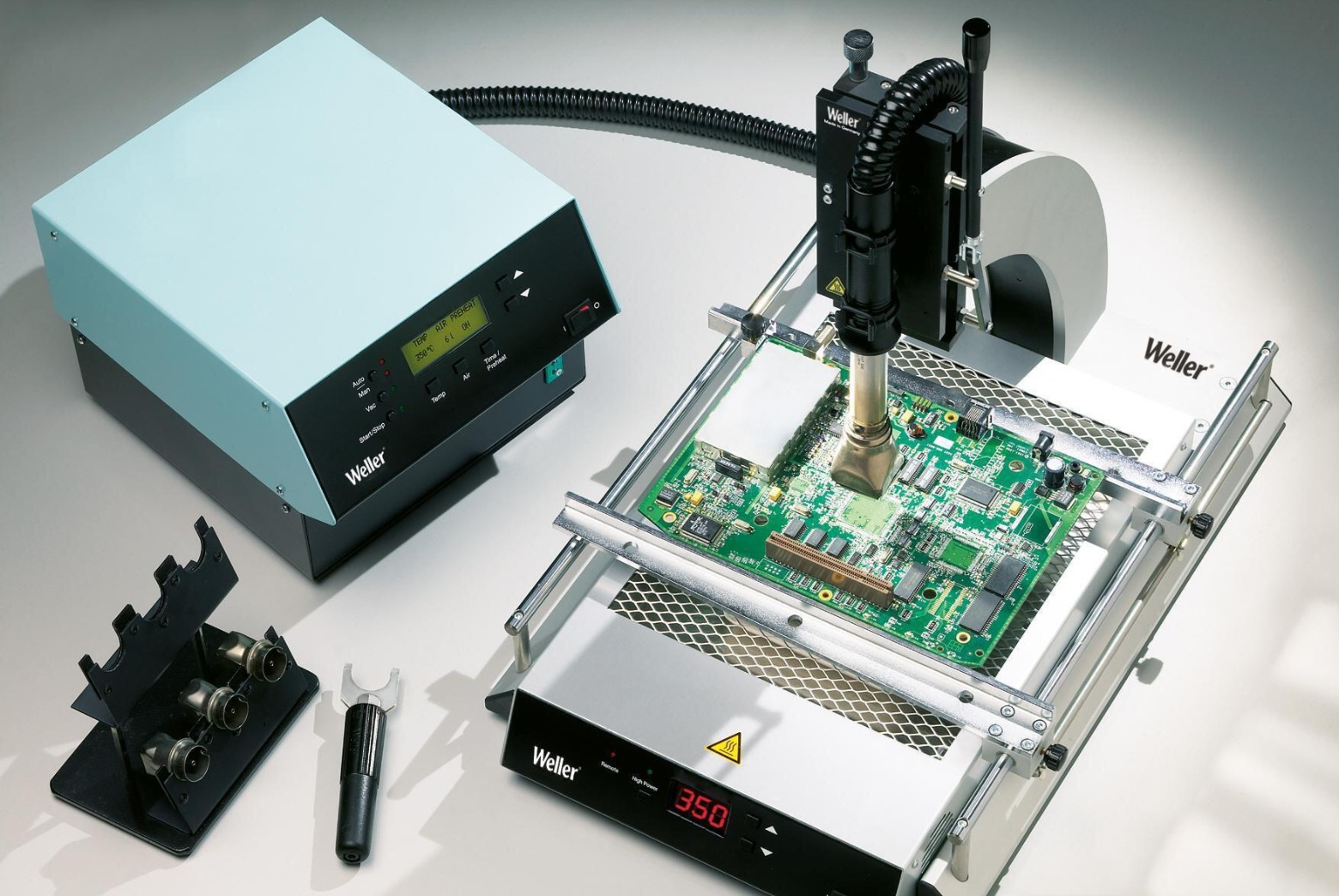

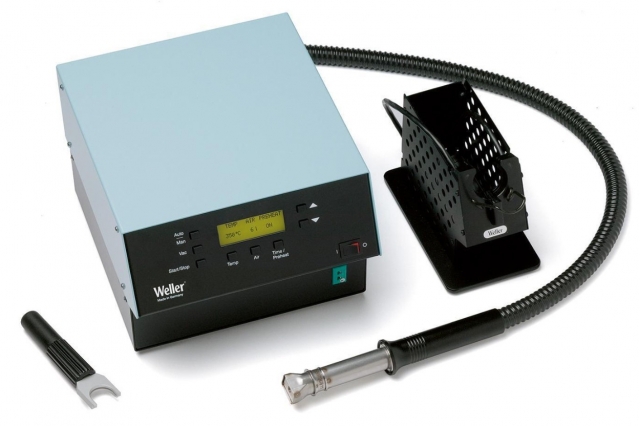

WELLER WHA3000PS T0053355699N Hot Air Rework Station Infrared preheating plate and circuit board holder

Code: WHA3000PS T0053355699N




Datasheet PDF, 0.27 Mb

Description

Product features
700 W
Integrated turbine
Set with Infrared preheating plate and circuit board holder

Technical data
Height170mm
Length240mm
Dimensions L x W x H240.0 x 270.0 x 170.0mm (WHA3000P)
ESD SafeYes
Power700 W
Power Consumption1200 W
Space Requirements (L x W x H)599.4 x 599.4 x 500.3mm
Temperature Accuracy of Top Heating± 30°C, ± 54°F
Temperature Range of Bottom Heating50 - 400 °C
Temperature Range of Top Heating50 - 500 °C
Thermocouple ConnectionType-K
Tip TypeWT
UPC037103305442
Voltage220-230V (50/60 Hz)
Product FamilyBGA/QFP Soldering Station Repair


More products WELLER

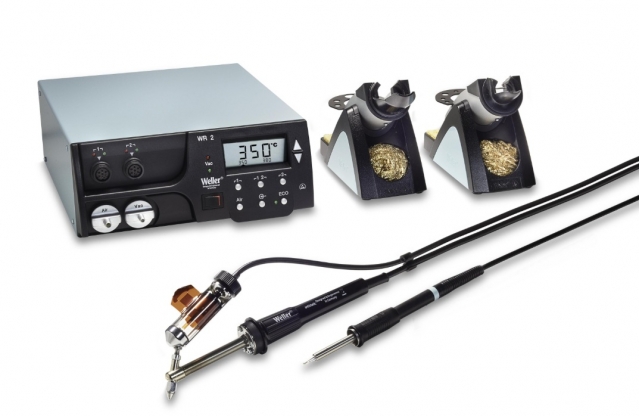

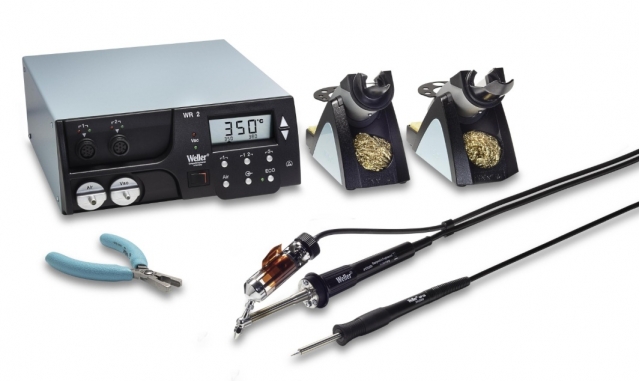

WELLER WR2002 T0053380699N SOLDERING DESOLDERING STATION 2-CHANNELS 250W

• Power unit WR 2, 2 channels with soldering iron WP 80, desoldering iron DSX 80
• Small repair set for all rework applications
• Simultaneous operation of up to 2 soldering tools (hot air and desoldering iron at the same time is not possible)

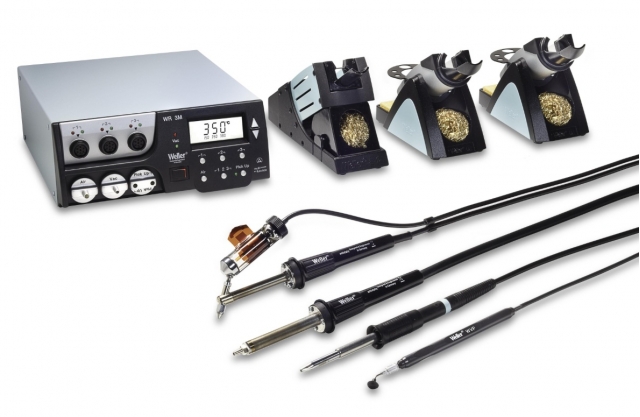

WR3000M DSX80 T0053368699N SOLDERING DESOLDERING HOT AIR STATION 3-CHANNEL 360W

• Power unit WR 3M, 3 channels with soldering iron WP 80, desoldering iron DSX 80 and hot air iron HAP 200
• Large all round set for all repair jobs
• Desoldering iron DSX 80 for horizontal applications
• Simultaneous operation of hot air and desoldering

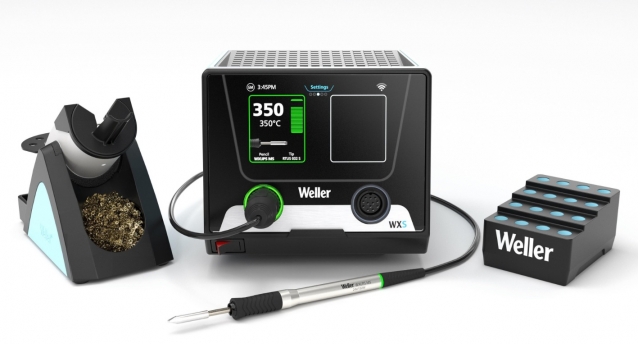

WELLER WXS2012 T0053455699 HEAVY DUTY SOLDERING STATION

• Heavy Duty Soldering Set For every purpose
• A new soldering kit
• Optimal soldering system for heavy-duty applications in the electrical, medical, automotive and aerospace industries.

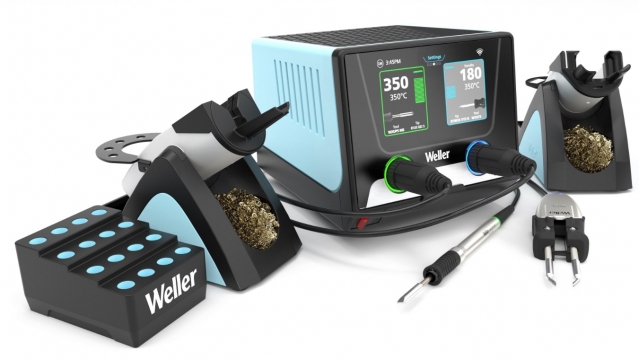

WELLER WXS2022 T0053458699 HEAVY DUTY SOLDERING STATION 150W

• Heavy Duty Rework Kit
• Weller's active tip technology (cartridge) provides optimized heat transfer with a maximum power of 150W, 24V.

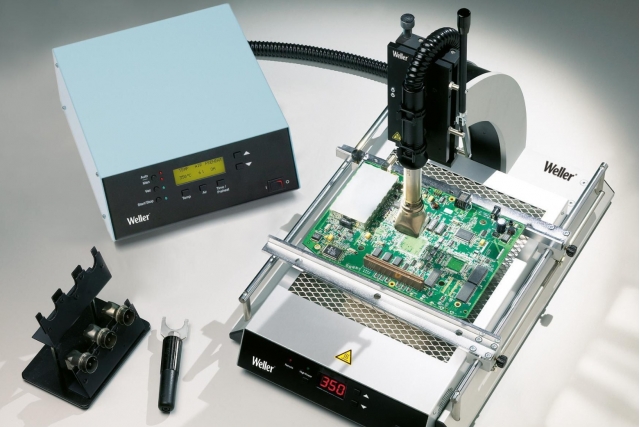

WELLER WHA3000VS T0053359699N HOT AIR REWORK SET WITH PCB HOLDER AND PREHEAT PLATE FOR COMPRESSED AIR OR INERT GAS OPERATION

• Hot Air Rework Set with PCB Holder and Preheat Plate for Compressed Air or Inert Gas Operation
• 700 W
• For use with inert gas

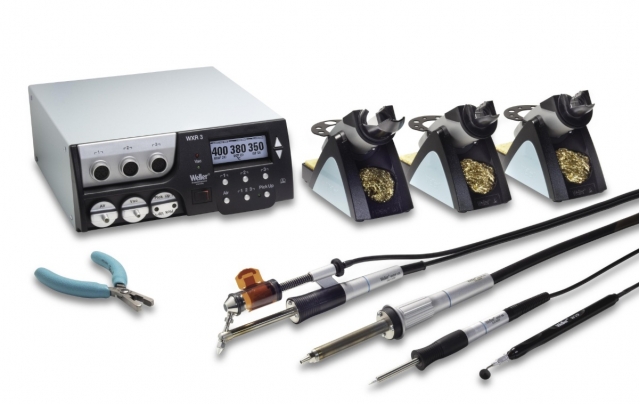

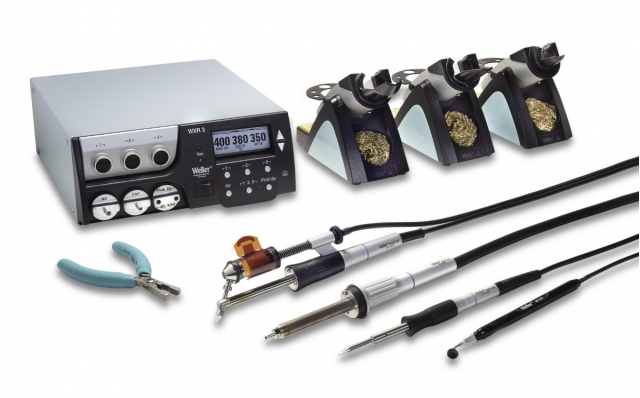

WXR3031 T0053502699N 3-CHANNEL REWORKING STATION FOR SOLDERING WITH HOT AIR 420W

• Power unit WXR 3, 3 channels with WXHAP 200 Hot air iron, WXDP 120 Desoldering iron and WXP 120 Soldering Iron

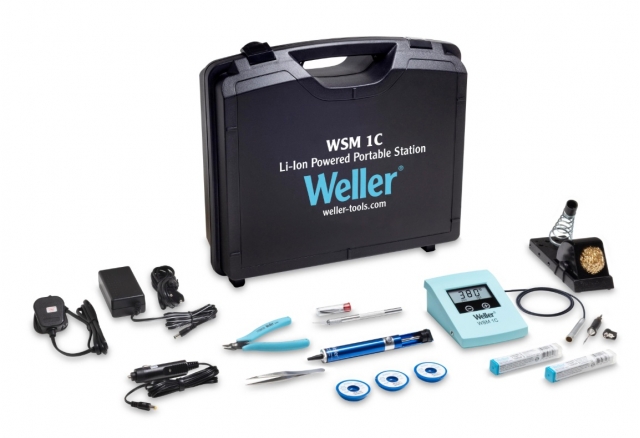

WELLER WSM1C T0053293390 MOBILE PORTABLE SOLDERING REPAIR KIT WITH BATTERY

• Mobile repair Kit with portable rechargeable battery soldering station
• The WSM1C is developed especially for users who need a portable, mobile and small soldering station for professional applications
• Powered by a rechargeable battery, the WSM1C soldering station can be easily operated outside laboratories or production lines, right where the job is.

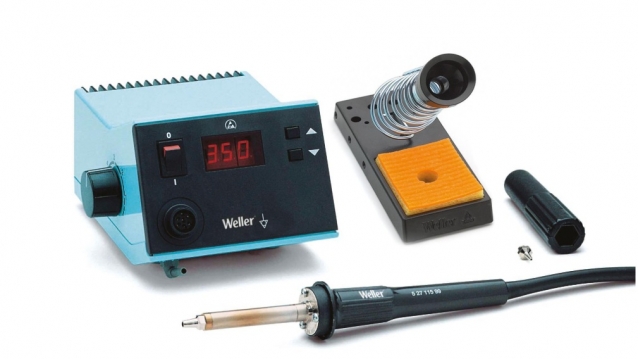

WELLER WAD101 T0053266699N HOT AIR SOLDERING STATION IRON 105W

• Hot air station, 1 channel 105 W / 230 V
• Hot air station, 1 channel with HAP 1 soldering iron
• Small hot air set
• For hot air irons or soldering irons up to 100 W

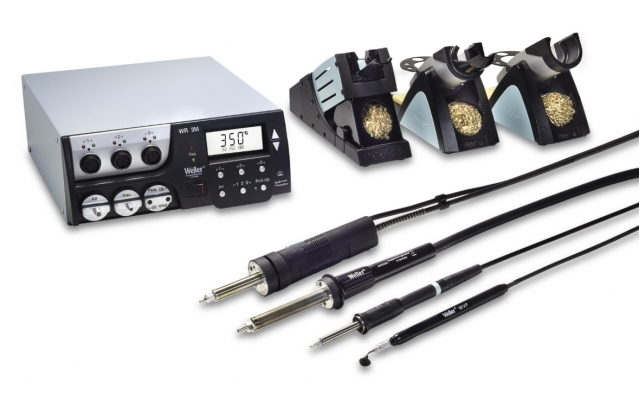

WELLER WR3000M DXV80 T0053368399N SOLDERING REWORK DESOLDERING HOT AIR STATION 3-CHANNEL 360W

• Power unit WR 3M, 3 channels with soldering iron WP 80, desoldering iron DXV 80 and hot air iron HAP 200
• Large all round set for all repair jobs
• Desoldering iron DXV 80 for vertical applications
• Simultaneous operation of hot air and desoldering

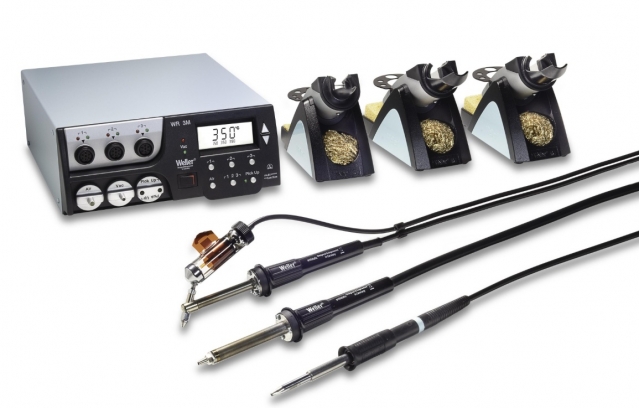

WELLER WR3000MER T0053368870N REWORK STATION SOLDERING DESOLDERING HOT AIR 3-CHANNELS
