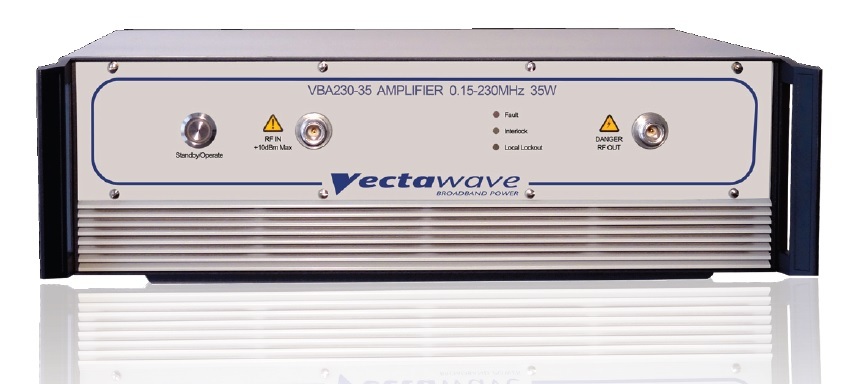

Vectawave VBA230 RF Power Amplifier 150kHz..230MHz

Code: VECTAWAVE VBA230

Datasheet

PDF, 0.79 Mb

Description

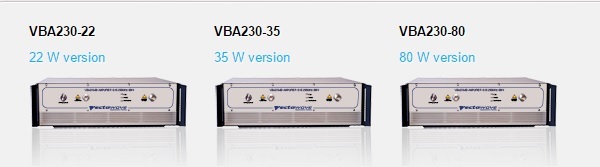

Modele:

VBA230-22 150kHz..230MHz, 22W

VBA230-35 150kHz..230MHz, 35W

VBA230-80 150kHz..230MHz, 80W

150 kHz-230 MHz amplifier range covers output power ranging from 20 W to 80 W. The characteristics of this range are as follows:

Class A for ultimate low distortion and adverse load tolerance
No foldback or shutdown with high reflection
Silicon push-pull MOSFET output stages for reduced harmonic content

Output power up to 80W for standard conducted immunity testing
