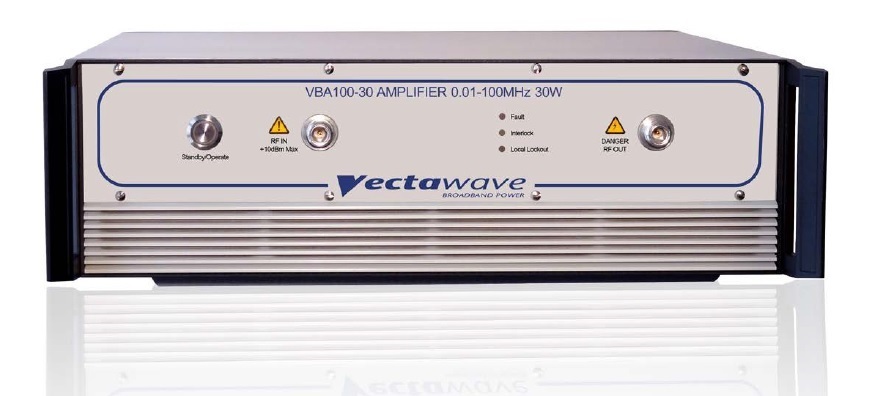

Vectawave VBA100 RF Power Amplifier 10kHz..100MHz

Code: VECTAWAVE VBA100-30 VBA100-110 VBA100-200 VBA100-400 VBA100-900

Datasheet

PDF, 0.21 Mb

Description

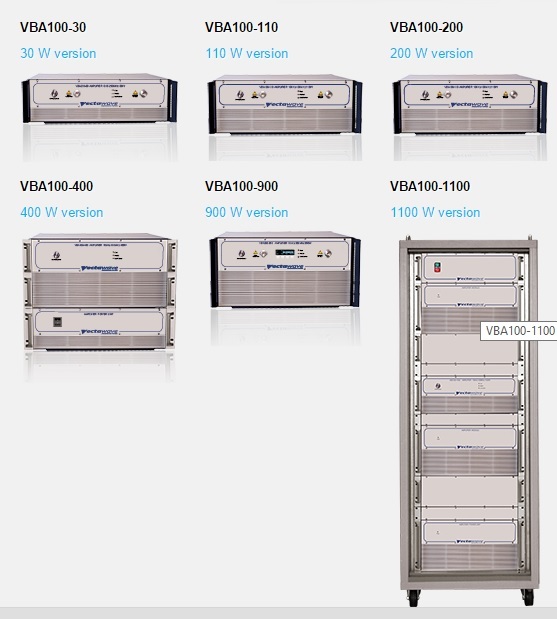

Models:

VBA100-30 10kHz..100MHz, 30W

VBA100-110 10kHz..100MHz, 100W

VBA100-200 10kHz..100MHz, 200W

VBA100-400 10kHz..100MHz, 400W

VBA100-900 10kHz..100MHz, 900W

VBA100-1100 10kHz..100MHz, 1100W

10 kHz-100 MHz amplifier range covers output power ranging from 30 W to 1.1 kW. The characteristics of this range are as follows:

Class A for ultimate low distortion and adverse load tolerance
No foldback or shutdown with high reflection
Silicon push-pull MOSFET output stages for reduced harmonic content
