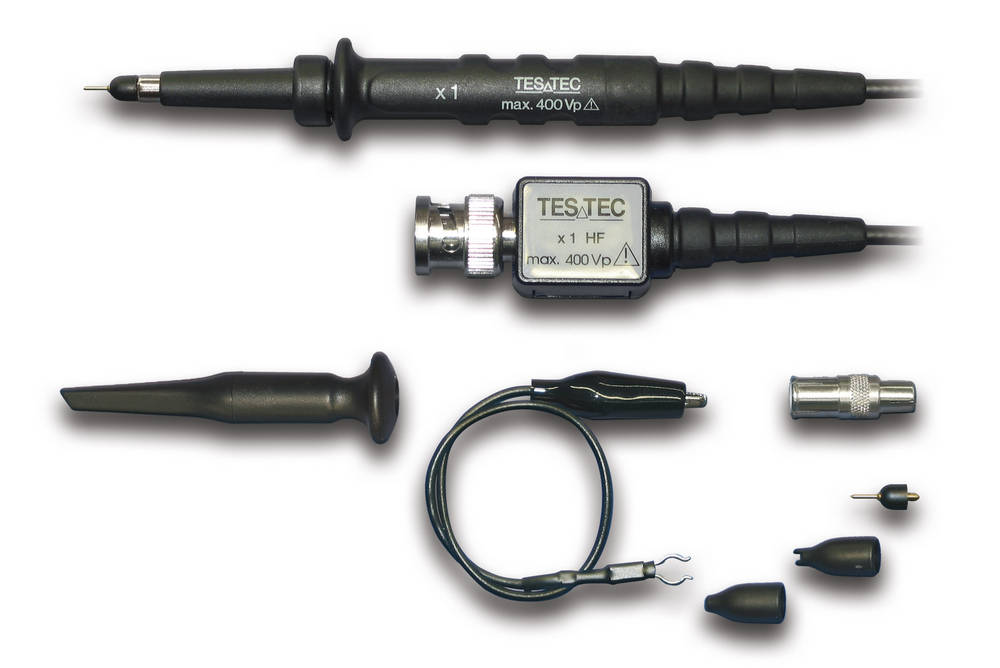

Voltage Oscilloscope Probe 1x attenuation Testec TT-HF100

Code: Testec TT-HF100

Description

TT-HF 112 1:1 - 1,2m, 40MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 45 pF

Bandwidth: 40 MHz

Rise Time: 9 ns

Cable Length: 1,2 m

TT-HF 120 1:1 - 2,0m, 30MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 67 pF

Bandwidth: 30 MHz

Rise Time: 12 ns

Cable Length: 2,0 m

TT-HF 212 10:1 - 1,2m, 300MHz

Attenuation Ratio: x10

Input Impedance: 10 Ω, 13,5 pF

Bandwidth: 300 MHz

Rise Time: 1,2 ns

Cable Length: 1,2 m

Compensation Range: 10..50 pF
