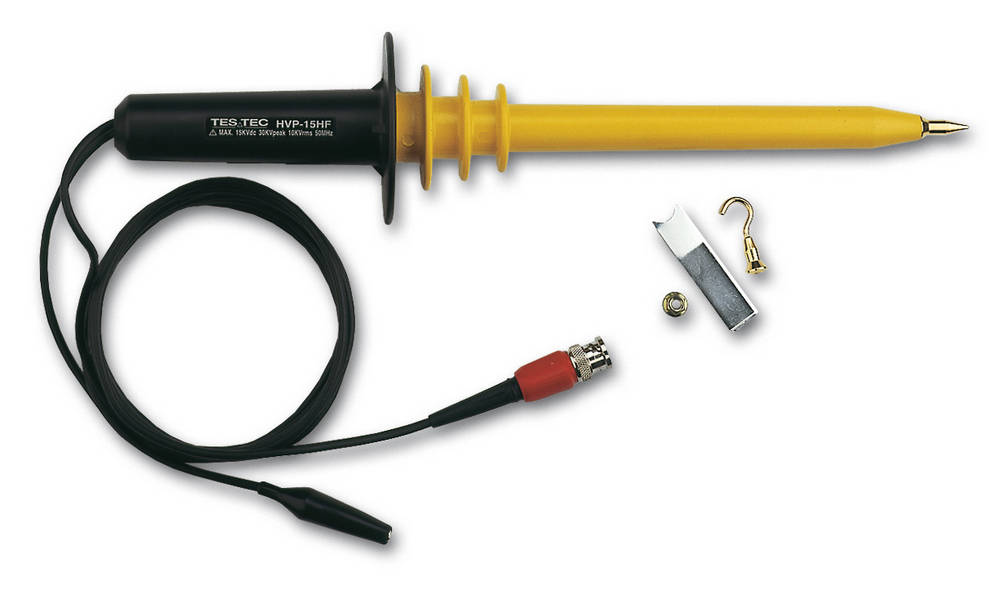

High Voltage Oscilloscope Probe 15kV Testec TT-HVP 15HF

Code: Testec TT-HVP 15HF




Description

TT-HVP 15HF  1000:1, 50MHz

Attenuation Ratio: x1000 +/-1% @ 1 Ω

Accuracy: VDC +/-6% / VAC +/-6% @ 1kHz

Input Impedance: 100 Ω, 1 pF

Bandwidth: 50 MHz (-3dB)

Rise Time: 7 ns

Compensation Range: 15..30 pF

Max. Input Voltage: DC 15kV, AC 10kVrms, PEAK 30kV

Cable Length: 2,0 m

Dimensions (L x W x H): 350mm x 75mm x 75mm

IEC1010: CAT I Pollution Degree 2



More products TESTEC

SAFETY ISOLATED HIGH VOLTAGE OSCILLOSCOPE PROBE CAT TESTEC TT-SP

• TT-SP 101 1:1 - 1,2m, 45MHz
• TT-SP 450 10:1 - 1,2m, 450MHz
• TT-SP 500 10:1 - 1,2m, 500MHz
• TT-SP 1000 100:1 - 1,2m, 300MHz

PASSIVE OSCILLOSCOPE PROBE 10X ATTENUATION HIGH FREQUENCY TESTEC TT-HF500

• TT-HF 512 10:1 - 1,2m, 500MHz
• TT-HF 520 10:1 - 2,0m, 350MHz

PASSIVE OSCILLOSCOPE PROBE 10X ATTENUATION TESTEC TT-MF200

• TT-MF 212 10:1 - 1,2m, 250MHz
• TT-MF 216 10:1 - 1,6m, 220MHz
• TT-MF 220 10:1 - 2,0m, 190MHz

HIGH VOLTAGE OSCILLOSCOPE PROBE WITH READOUT 100X ATTENUATION TESTEC TT-HV

• TT-HV 150RA Readout 100:1, 300MHz
• TT-HV 151RA Readout 100:1, 200MHz
• TT-HV 250RA Readout 100:1, 300MHz
• TT-HV 250RA Readout 100:1, 300MHz

VOLTAGE OSCILLOSCOPE PROBE 1X ATTENUATION TESTEC TT-HF100

• TT-HF 112 1:1 - 1,2m, 40MHz
• TT-HF 120 1:1 - 2,0m, 30MHz
• TT-HF 212 10:1 - 1,2m, 300MHz

CURRENT PROBE FOR OSCILLOSCOPE DC..5MHZ TTI I-PROBER 520

• I-prober 520 - PCB track Touch & Measure
• Current measurement from insulated probing of conductor
• Suitable for observation and measurement of current in PCB tracks, component leads and ground planes
• Wide dynamic range of 10mA to 20A peak to peak
• Wide bandwidth of DC to 5MHz
• Low noise figure equivalent to <6mA rms at full B/W


VOLTAGE OSCILLOSCOPE PROBE 10X ATTENUATION TESTEC TT-HF200

• TT-HF 212 10:1 - 1,2m, 300MHz
• TT-HF 220 10:1 - 2,0m, 230MHz

PASSIVE OSCILLOSCOPE PROBE 1X/10X ATTENUATION TESTEC TT-MF300

• TT-MF 312 1:1/10:1 1,2m, 20MHz/250MHz
• TT-MF 316 1:1/10:1 - 1,6m, 13MHz/220MHz
• TT-MF 320 1:1/10:1 - 2,0m, 10MHz/190MHz

PASSIVE OSCILLOSCOPE PROBE 10X ATTENUATION TESTEC TT-LF200

• TT-LF 212 10:1 - 1,2m, 150MHz
• TT-LF 216 10:1 - 1,6m, 130MHz
• TT-LF 220 10:1 - 2,0m, 100MHz

PASSIVE OSCILLOSCOPE PROBE 1X ATTENUATION TESTEC TT-LF100

• TT-LF 112 1:1 - 1,2m, 25MHz
• TT-LF 116 1:1 - 1,6m, 22MHz
• TT-LF 120 1:1 - 2,0m, 20MHz
