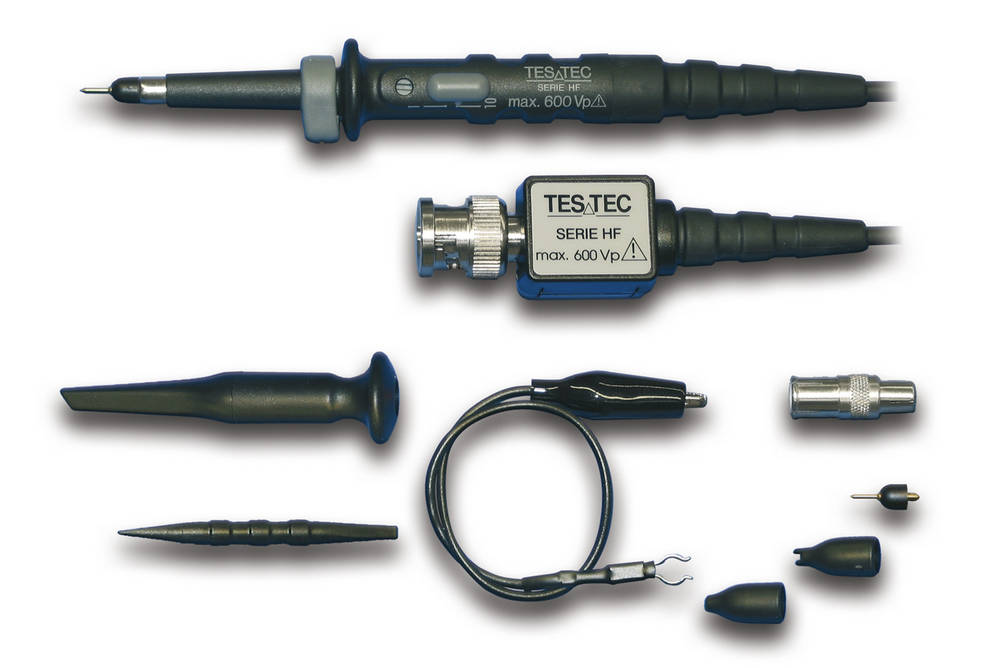

Voltage Oscilloscope Probe 1x/10x attenuation Testec TT-HF300

Code: Testec TT-HF300

Description

TT-HF 312 1:1/10:1 - 1,2m, 30MHz/300MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 47 pF

Bandwidth: 30 MHz

Rise Time: 12 ns

Cable Length: 1,2 m

Attenuation Ratio: x10

Input Impedance: 10 Ω, 13,5 pF

Bandwidth: 300 MHz

Rise Time: 1,2 ns

Cable Length: 1,2 m

Compensation Range: 10..50 pF

TT-HF 320 1:1/10:1 - 2,0m, 15MHz/230MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 69 pF

Bandwidth: 15 MHz

Rise Time: 23 ns

Cable Length: 2,0 m

Attenuation Ratio: x10

Input Impedance: 10 Ω, 16 pF

Bandwidth: 230 MHz

Rise Time: 1,5 ns

Cable Length: 2,0 m

Compensation Range: 10..50 pF
