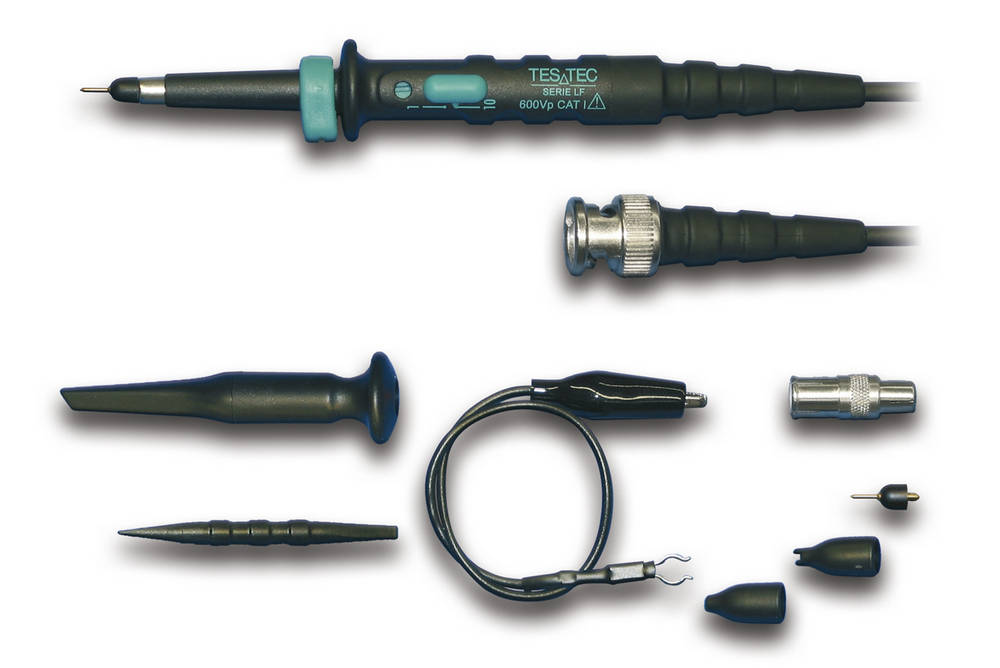

Passive Oscilloscope Probe 1x/10x attenuation Testec TT-LF300

Code: Testec TT-LF300




Description

TT-LF 312   1:1/10:1 - 1,2m, 15MHz/150MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 47 pF

Bandwidth: 15 MHz

Rise Time: 24 ns

Cable Length: 1,2 m



Attenuation Ratio: x10

Input Impedance: 10 Ω, 15,5 pF

Bandwidth: 150 MHz

Rise Time: 2,3 ns

Cable Length: 1,2 m

Compensation Range: 10..60 pF





TT-LF 316  1:1/10:1 - 1,6m, 12MHz/130MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 58 pF

Bandwidth: 12 MHz

Rise Time: 30 ns

Cable Length: 1,6 m



Attenuation Ratio: x10

Input Impedance: 10 Ω, 16 pF

Bandwidth: 130 MHz

Rise Time: 2,7 ns

Cable Length: 1,6 m

Compensation Range: 10..60 pF





TT-LF 320  1:1/10:1 - 2,0m, 10MHz/100MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 69 pF

Bandwidth: 10 MHz

Rise Time: 40 ns

Cable Length: 2,0 m



Attenuation Ratio: x10

Input Impedance: 10 Ω, 16,5 pF

Bandwidth: 100 MHz

Rise Time: 3,5 ns

Cable Length: 2,0 m

Compensation Range: 10..60 pF
