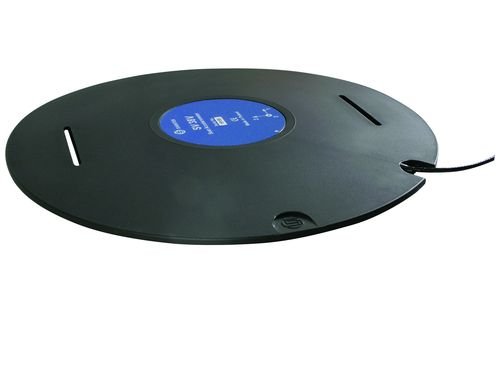

SV 38V Seat Accelerometer

Code: SVANTEK SV 38V




Datasheet PDF, 0.24 Mb


Description

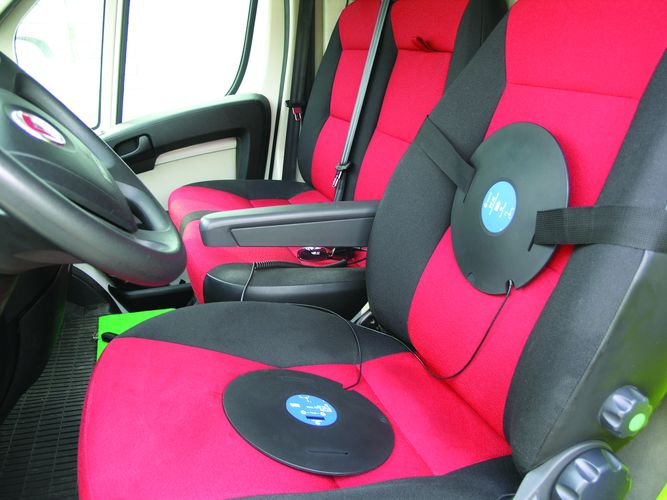

SV 38V Seat Accelerometer is a triaxial Whole-Body seat accelerometer based on MEMS transducers dedicated to SV 106 instrument for Human Vibration measurements according to ISO 2631-1 requirements both on a seat pad or seat back. The SV 38V uses low voltage and consumes much less energy than IEPE accelerometers extending battery life time of SV 106 instrument. The built-in TEDS memory stores information about the accelerometer sensitivity that is automatically transferred to the SV 106 vibration analyser helping to avoid configuration errors.  A full ISO 8041 in-situ calibration check for before and after measurement is possible using the SV 111 portable vibration calibrator.



Features:

  • Meets ISO 8041 and ISO 2631-1
  • Dedicated to SV 106
  • Low-power consumption
  • Robust technology
  • TEDS memory
  • Low price
