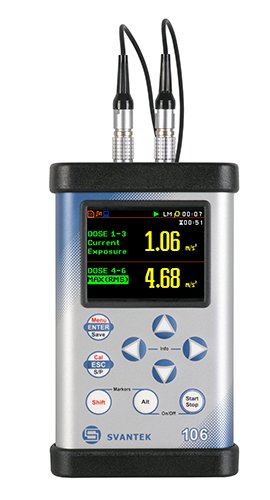

SV 106A Human Vibration Meter & Analyser

Description

SV 106A Six-channel Human Vibration Meter and Analyser meets requirements of ISO 8041:2005 standard and it is an ideal choice for measurements according to ISO 2631-1,2&5, ISO 5349 and directive 2002/44/EC of European Parliament. This revolutionary, pocket-size instrument enables simultaneous measurements with two triaxial accelerometers (e.g. both-hands vibration or triaxial SEAT transmission measurements are possible).
The RMS, Peak, Peak-Peak, VDV, MTVV or dose results such as A(8) and AEQ with all required weighting filters for human vibration measurements, including band-limiting filters, are available with this instrument. Using computational power of its digital signal processor, the SV 106A can perform 1/1 or 1/3 octave real-time analysis simultaneously to the meter mode.Advanced time-history logging and time-domain signal recording (according to the ISO 2631-5) to the microSD flash card offer a great data input for detailed signal analysis. Results can be easily downloaded to PC using USB interface. The instrument works with Svantek½s specialist health and safety software package, ½Supervisor½, and also with the full analysis package SVAN PC++.

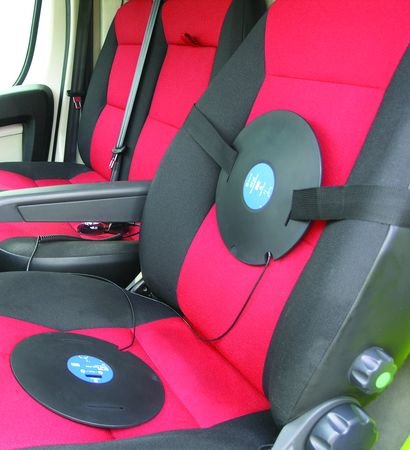

The whole-body vibration measurement is easier thanks to SV 38V seat-accelerometer which can be placed directly on the seat cushion, floor or fixed to the back of the seat.  The SV 105B set with triaxial accelerometer enables hand-arm vibration measurements regardless of the type of evaluated tool.

Features:

• Human Vibration Meter meeting ISO 8041:2005, ISO 2631-1,2&5 (including VDV and MTVV), ISO 5349, Directive 2002/44/EC
• Six channels for acceleration (IEPE type) and two channels for static force measurements
• Whole-Body measurements with  seat accelerometer SV 38V

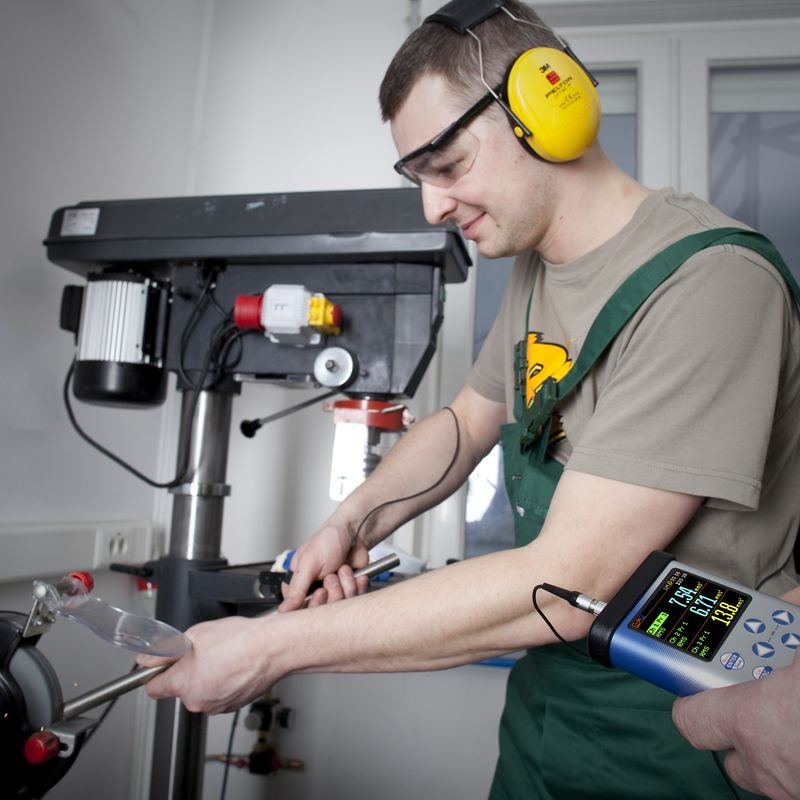

• Hand-Arm measurements with SV 105A or SV 150 triaxial accelerometers
• Option for time-domain signal recording (meeting ISO 2631-5)
• 1/1 and 1/3 octave real-time analysis (option)
• Advanced data logger including spectral analysis
• Micro SD flash card for mass data storage
• USB 1.1 Client interface
• Integration time programmable up to 24 h
• SvanPC+ software for easy instrument setup and data download
• Easy in use, user friendly interface with colour display
• Pocket size (140 x 83 x 33 millimetres)
• Weight only 390 grams including batteries
