Shineway SPM-50 RF Spectrum Power Meter

Code: Shineway SPM-50 RF




Datasheet PDF, 0.29 Mb

Description

SPM-50A Spectrum Power Meter brings innovative testing concept and approach for RF cable system installation and maintenance. It combines the key function of spectrumanalyzer and power meter, designed to measure the power characteristics of particular signal among mixed signals transmitted on cable, fast and accurately present result in power histogram or spectrum chart.

SPM-50A supports normal, burst and frequency segment sweep modes to acquire information of forward power, reflected power, return loss, VSWR, peak power, crest, CCDF, duct cycle and etc.



Features:

  • Combination of power and spectrum analyzer
  • Test mode: normal, burst and frequency segment sweep
  • Burst test: Burst average power, burst peak power, duty cycle
  • Power histogram or spectrum chart
  • Preset frequency band for fast scan
  • Live testing through feeder cable system
  • Working with PC software or handheld monitor
  • USB communication port
  • Reverse protection
  • Compact design


More products SHINEWAY

SHINEWAY OCC-50 CWDM OPTICAL CHANNEL CHECKER

• Result display in histogram and list
• Applicable to normal optical power measurement
• Internal clock & fiber S/N editable
• User definable threshold setting



OPTICAL FIBER POWER METER/ LASER SOURCE LOSS TEST SET SHINEWAY OPM-50/ SLS-50

• OPM-50 Intelligent Optical Power Meter
• SLS-50 Intelligent Stabilized Laser Source
• Automatic Wavelength Identification
• Ideal for optical attenuation and loss measurements
• Continuity Verification and Fiber Link Evaluation



DATA COMMUNICATIONS/BERT/ E1/ JITTER/ G.703/ PCM ANALYZER SHINEWAY DTA-BERT

• In/Out band & ITU-T V.54 BERT histogram analysis
• DSO control loop codes (Optional)
• Large TFT color LCD display
• Internal memory for test data storage
• Test report
• Print via Parallel/RS-232 port (Optional



OPTICAL FIBER FUSION SPLICER SHINEWAY OFS-60

• 5" Turn-over TFT LCD screen for clear display
• Both X and Y axis display
• Fiber core can be display clearly
• 11seconds splice time and 30seconds heat time
• Portable design for field and Laboratory
• Simple Operation menu

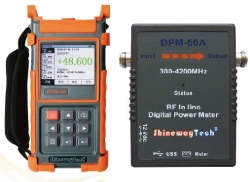

RF DIGITAL POWER/WATT METER SHINEWAY DPM-50
