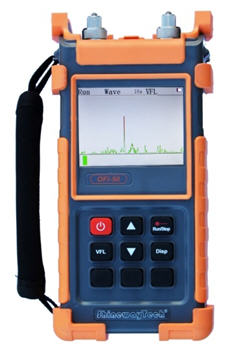

Shineway OFI-50A Cable Identifier

Code: Shineway OFI-50A




Datasheet PDF, 0.11 Mb

Description

OFI½50A uses optical fiber sensing principle to confirm the target fiber; It can quickly identify deep buried, overhead and pipe fiber cable without any destroy, and provide a simple method for maintenance personnel. Users only need gently knock on cable, when knocking to the target cable, OFI-50 can clearly hear the knock from earphone, which can accurately identify the target cable. OFI½50A is real one-key type test; handheld design, easy to carry, 3.5' color screen real-time waveform; the software of the intelligent struck the judgment of the two operation / display mode, combined with the Headset real-time audio, with 3 kinds of recognition percussion method, so as to quickly and accurately identify the measured cable. OFI-50A is a kind of ideal tool for optical fiber



Features:

  • Easy to use, reliable
  • Fast identification of deep buried, overhead and pipe fiber cable
  • Built-in intelligent mode, knock in the measured cable screen showed positive and negative Pyramid strength; output the notification sound
  • Rapid and accurate identification
  • Click the targeted or wanted cable, OFI-50A can response with sound and light reaction
  • According to the Headset feedback information, the operator can intuitive judgment percussion cable
  • According to the waveform real-time cable, knock in the measured cable real-time waveform will have obvious wave, visual disturbance
  • VFL function is available
  • Non destructive optical cable


More products SHINEWAY

VISIBLE LASER SOURCE SHINEWAY VLP-10/ VLS-20

• Pocket-size/pen-size, easy to use
• Fast response, no warm up
• CW/1 Hz mod
• 10Km for Max.measurement Range
• CE, FCC, FDA certificates
• One meter drop test



SHINEWAY OFC-10CT OPTICAL FIBER CLEAVER

• Compact & handy outfit design
• Rugged body
• Simplified blade adjustment & replacement
• Collecting fiber box



SHINEWAY OLT-20 OPTICAL LOSS TESTER

• Pocketsize, large LCD display
• Multi-wavelength measurement
• Display units: dB/dBm/mW/?W
• Link loss testing



OPTICAL FIBER CONNECTOR CLEANER SHINEWAY CLN-10/ CLN-20

• Available for SC, FC, ST, etc. connectors
• Suitable for both field use and factory use
• Consistently achieve high quality cleaning without alcohol or other solvents
• Cleaning tape is replaceable, thus reducing long-term cost
• One cleaning tape can be used for over 600 wipes/reel



OPTICAL FIBER FAULT LOCATOR SHINEWAY OFL-100

• Lightweight, portable
• High precise measurement, large memory capacity (200 test curves)
• RS-232/USB data upload port
• PC software for measurement data analyzing and reporting
• Display measurement by graphics curves
• NiMH rechargeable battery support 10 hours continuous operations



GIGABIT/BER ETHERNET TESTER SHINEWAY GET-100

• Electrical and optical ports with rate at 10/100/1000Mbps
• Ergonomic, creative design, and easy to carry
• IEEE 802.3, RFC1242, RFC2544 compliant
• L1/L2/L3 BER Test
• Full RFC2544 benchmark test
• Support VLAN test function
• Jitter Test



INTELLIGENT OPTICAL FIBER LOSS TESTER WITH INTEGRATED POWER METER AND LASER SOURCE SHINEWAY OTL-50

• FTTx/PON applicable
• Optical power monitoring
• Bidirectional loss test on single fiber
• ORL test
• Pass/Fail assessment
• Storage of 1000 test records
• Data transfer to PC via USB
• USB power charging



SHINEWAY OFI-50A CABLE IDENTIFIER

• Easy to use, reliable
• Fast identification of deep buried, overhead and pipe fiber cable
• Built-in intelligent mode, knock in the measured cable screen showed positive and negative Pyramid strength; output the notification sound



SHINEWAY OVA-50 INTELLIGENT OPTICAL VARIABLE ATTENUATOR

• Network/BER testing
• Power meter calibration
• Link loss simulation
• Optical margin analysis

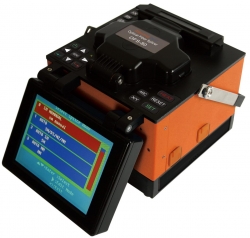

SHINEWAY 95EA FUSION SPLICER
