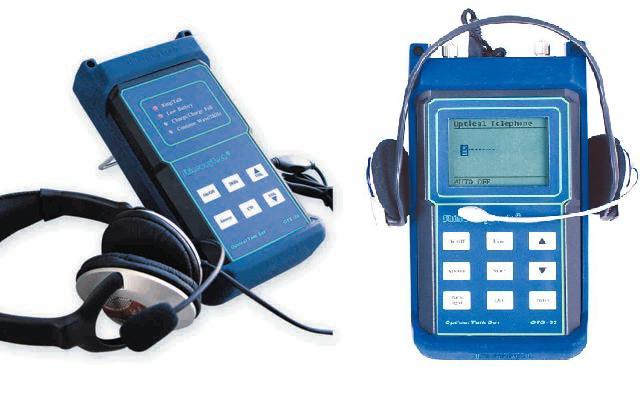

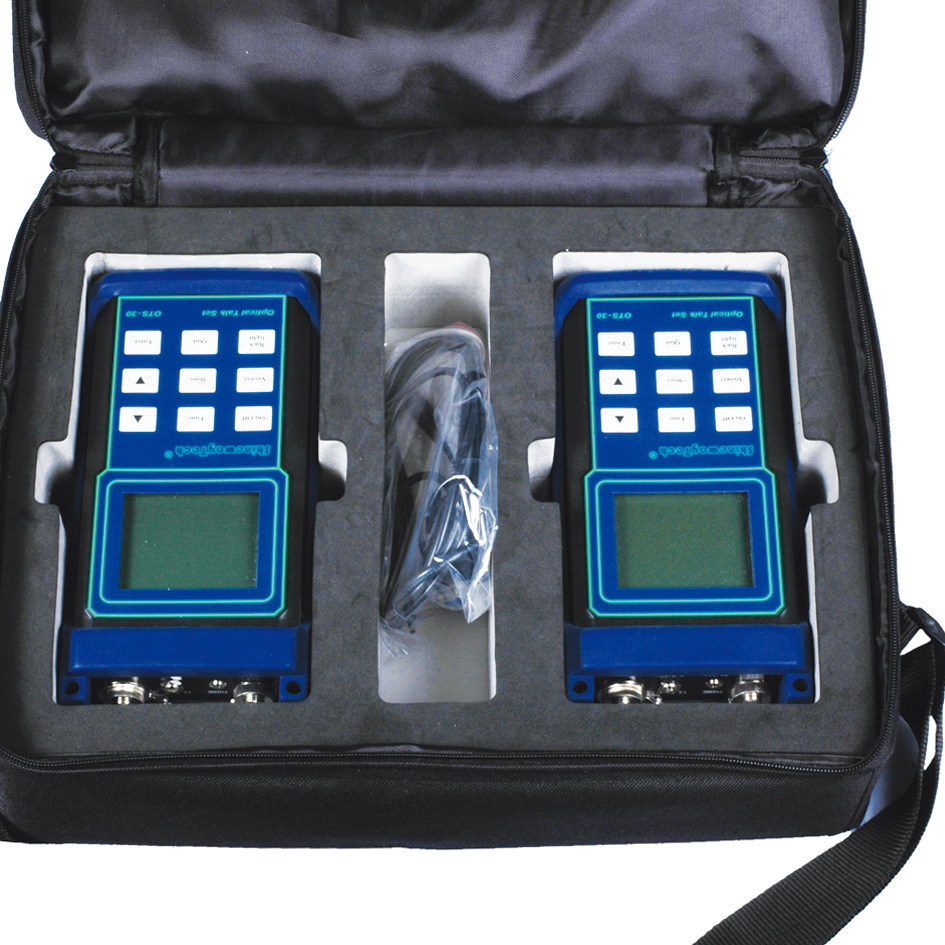

Optical Talk Set for Optical Fiber Network Shineway OTS-20/ OTS-30

• Result display in histogram and list
• Applicable to normal optical power measurement
• Internal clock & fiber S/N editable
• User definable threshold setting



• 6dB adjustable power output range
• Automatic wavelength identification/switch
• Remote reference value setting
• FTTx applicable



• Internal clock & fiber S/N editable
• Memory of 1000 test records
• Data Transfer to PC via USB
• USB power charging



• Support quick test, intelligentized operation
• Graphic interface, large easy to read LCD display
• Measurement units in dB, dBm and W (or mW)
• Large memory capacity (4000 measurements)
• Interchangeable fiber-optic adapters (FC, SC, ST, P/N, E 2000)
• RS-232 data upload port



• Eye-safe video viewing
• Inspect male and female connectors
• Various tips available
• Single-handed operation, quick focus
• Slim to access hard-to-reach connectors



• In/Out band & ITU-T V.54 BERT histogram analysis
• DSO control loop codes (Optional)
• Large TFT color LCD display
• Internal memory for test data storage
• Test report
• Print via Parallel/RS-232 port (Optional



• Network/BER testing
• Power meter calibration
• Link loss simulation
• Optical margin analysis



• Pocketsize, large LCD display
• Multi-wavelength measurement
• Display units: dB/dBm/mW/?W
• Link loss testing



• up to 3 functional modules, which is specially designed for FTTx/PON
• Flexible wavelength configurations to meet different requirements
• FTTX in-service testing
• PON OTDR identifies splitter and fiber-end
• 8.4 inch touch screen
• Fast power up with Windows CE
• Damp-dust-shock proof



• 5" Turn-over TFT LCD screen for clear display
• Both X and Y axis display
• Fiber core can be display clearly
• 11seconds splice time and 30seconds heat time
• Portable design for field and Laboratory
• Simple Operation menu
