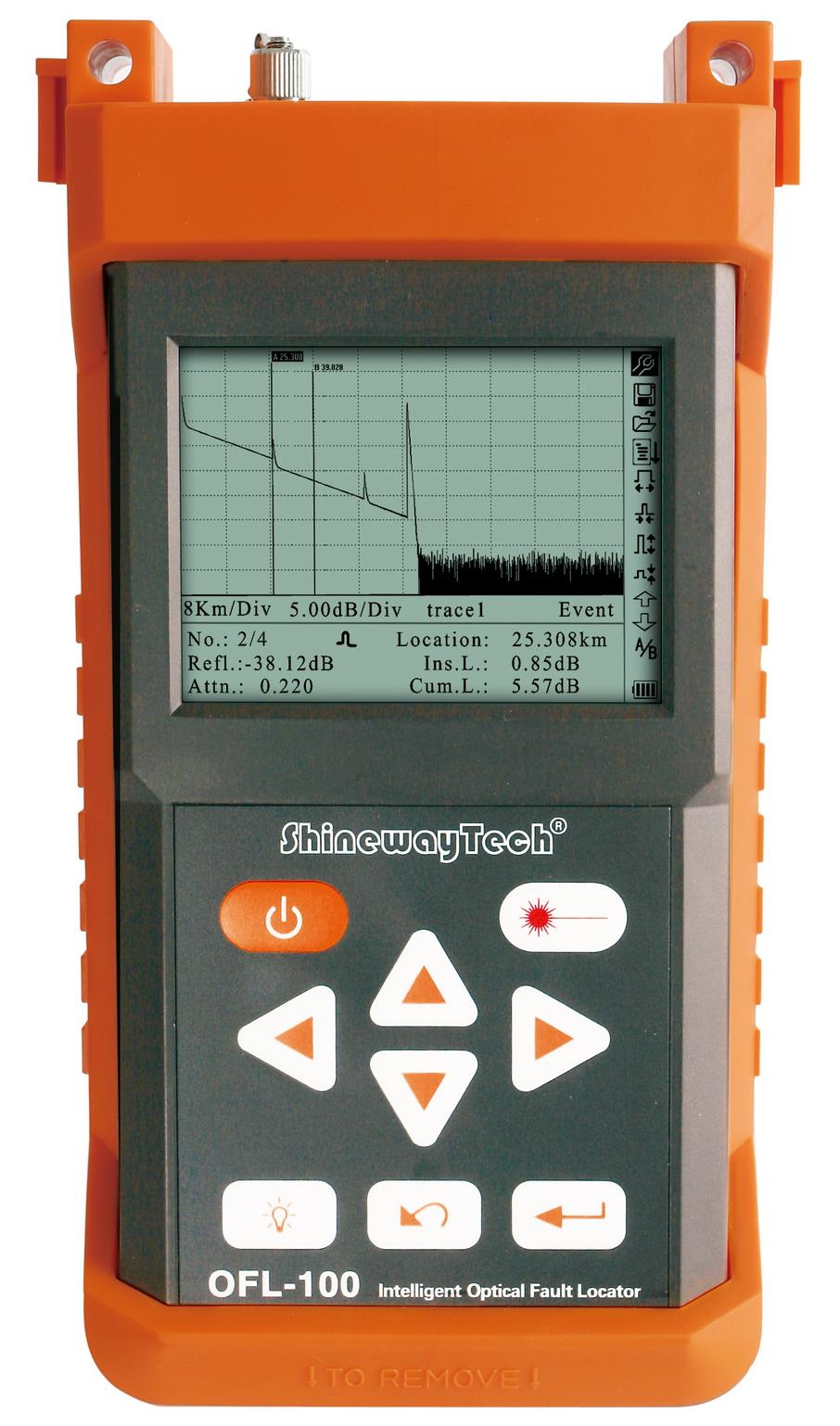

Optical Fiber Fault Locator Shineway OFL-100

Code: Shineway OFL-100




Datasheet PDF, 0.1 Mb

Description

OFL-100A(1310 nm, 60 km Range)

OFL-100B(1550 nm, 100 km Range)

  • Lightweight, portable
  • High precise measurement, large memory capacity (200 test curves)
  • Without hard disk design, anti-dust, damp and shock proof for field test
  • RS-232/USB data upload port
  • PC software for measurement data analyzing and reporting
  • Support measurement of both attenuation and reflection events
  • Display measurement by graphics curves
  • NiMH rechargeable battery support 10 hours continuous operations
  • CE, FCC, FDA certificate


Standard accessories

  • OFL instrument(embedded rechargeable battery,P/N:AC-BAT-30),
  • Connector(P/N: AC-CONN-FC-L)
  • US standard AC Adapter(P/N:AC-ADPT-20-US),
  • Rubber Boot(P/N:AC-RB-ORG)
  • RS232 cable(P/N:AC-CABL-RS),
  • USB cable(P/N:AC-CABL-USB),
  • OFL analysis software CD(P/N:AC-CD-OFL),
  • User Quick Reference Card
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Simple Soft Bag(P/N:AC-PB-20),
  • Packing Box(P/N:AC-BOX-20).


Recommended options

  • AC adaptor (AC-ADPT-20-UV)
  • AC adaptor (AC-ADPT-20-AU)
  • AC adaptor (AC-ADPT-20-JP)
  • Connector (AC-CONN-SC-L)
  • Connector (AC-CONN-ST-L)
  • Toolkit Soft Bag (AC-PB-31),
  • Toolkit Soft Bag (AC-PB-30),
  • Luxury Toolkit hard Box (AC-PB-40),
  • Optical Connector Cleaning Tape(P/N:AC-CLN-TAPE),
  • Cleaning Stick(P/N:AC-CLN-STK) 2pcs.
