Seba KMT HV Test Set 50kV 80kV 110kV DC High Voltage Tester

Code: Seba-KMT HV-Test-Set 50kV 80kV 110kV




Datasheet PDF, 0.15 Mb


Description

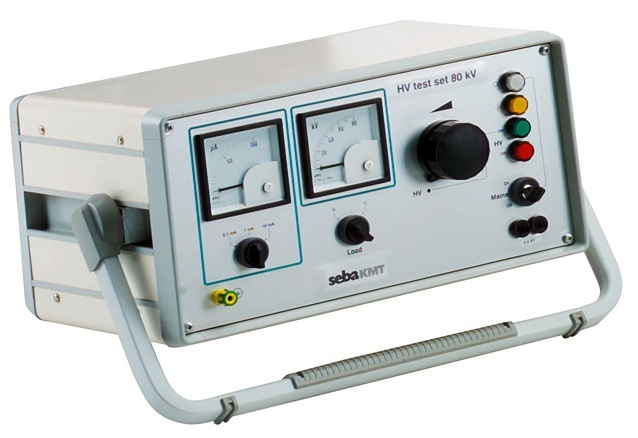

HV Test Set 50/80/110

The HV Test Set is a cable tester for DC voltage testing of cables and cable installations in accordance with the international standards. It consists of an operation unit and HV unit. Due to its small size and low weight the test sets can easily be transported and used on-site. The HV Test Set is available in three versions (50/80/110 kV DC).

Key benefits:

  • Highest safety by monitoring functions and easy operation
  • Quick and easy mounting with compact and simple setup
  • Meeting individual needs by modular design





Portable HV test set for DC voltage

testing of cables and cable installations



Benefits

Safety by monitoring functions and easiest operation

Quick and easy mounting with compact and simple setup

Meeting individual needs by modular design



Description

The HV Test Set is a cable tester for DC voltage testing of

cables and cable installations in accordance with VDE standards.

The Set consists of an operation unit and an HV Unit

and is available in three versions (50/80/110 kV). Compact

and light-weight it is easily transported to be used on site.



Technical Features

Easy operation

Low weight and compact design

Integrated discharge device

Earthing safety circuit

Overcurrent tripping

Guaranteed quality in accordance with DIN EN ISO 9001

Ecologically safe insulant

The HV Test Set 50/80/110 kV is used for

Testing of newly installed cables and splices before they are taken into service

Periodical cable testing

Testing electrical installations

Preventive checks after repairs and work on telecommunication

cables and other installations


Standard accessories

Scope of Delivery

HV Test Set 50/08/100 kV in leather case

HV unit with HV attachment

Connecting lead, operation unit to HV unit

High Voltage lead, 2 m

Earthing lead, 3 m HV unit to station earth

Earthing lead, 3 m, operation unit to station earth

Earthing and discharge rod with ground cable and case

Operation manual

Service pack

Environmental protection

To protect the environment we use a new type of biodegradable, non-toxic insulating oil.



Recommended options
