Seba KMT Correlux P-2 Digital correlator for leak location on water pipelines
OBSOLET PRODUCT ( * OUT OF USE )

Code: Seba-KMT Correlux-P2 Correlux-P-2




Datasheet PDF, 0.31 Mb


Description

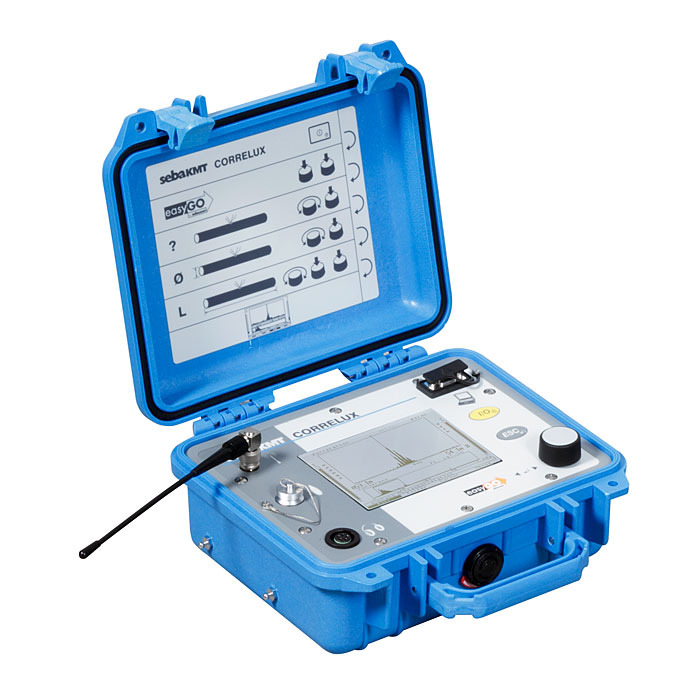

Correlux P-2: Digital correlator for leak location on water pipelines

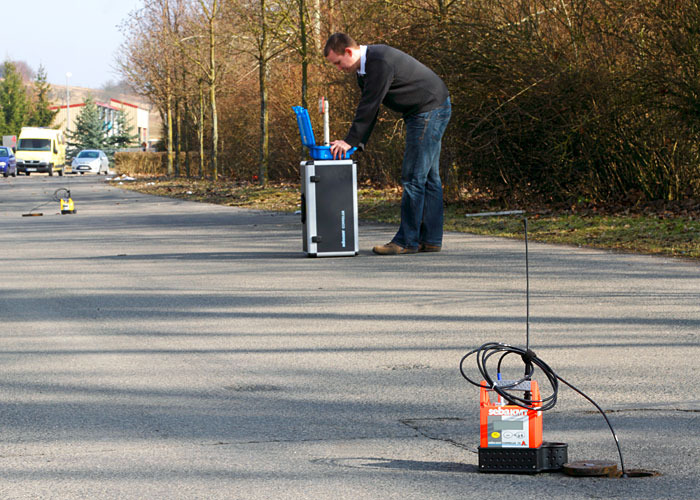

The correlator Correlux P-2 is used for leak location on pipes for portable water. Water, escaping from a leak under pressure creates a noise which travels into both directions of the pipe. This noise is recorded by two sensors (piezo-microphones, hydrophones) attached to the pipe (e. g.: valves, hydrants), amplifi ed and transmitted to the correlator. The Correlux P-2 compares both signals (correlation) and calculates the exact distance to the leak by use of the signal delay, the sensor distance and the sound velocity.

Key benefits:

  • Easy handling with rotary encoder
  • Rugged and compact design
  • Simultaneous display of the correlation chart and the coherence spectrum (FFT- analysis)
  • Quick filter optimisation without using menus
  • Fast and easy leak identifi cation by using the overview measurement with unknown pipe parameters
  • High radio output for broad reach

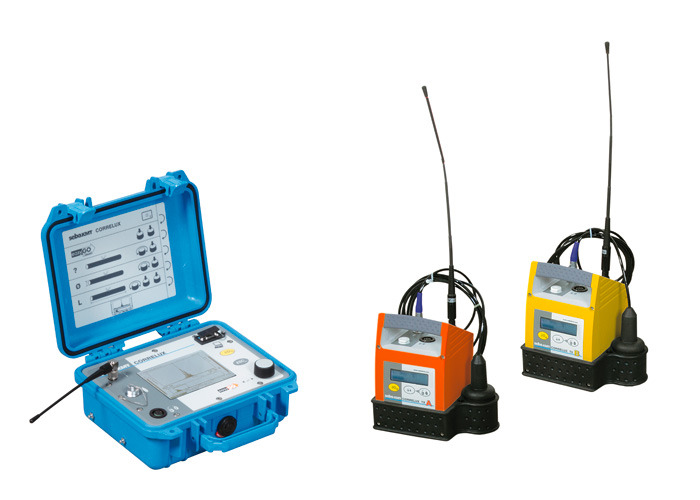

  • Transmitter and correlator with direct headphones plug-in to listen live to the leak noise
  • Recharging the complete system in the closed case - direct charging is possible, too
  • Up to 6 pipe sections measurable
  • Active piezo ceramics accelerometers, best suited for plastic pipes
  • Automatic and manual filter adjustment 0 … 4000 Hz





Standard accessories





Recommended options

Optional accessories

- KMK 80S slave unit to perform synchronous

end to end Graaf measurements

- KMK 8 - Calibration Certifi cate

- KTS 8 - PT 1000 Temperature sensor
