Signalstrength is presented on the LCD-display. In analog mode it shows a single channel or six channels at the same time. You can also choose to view the signal in spectrum mode.

In digital mode it displays the BER (bit error rate) and C/N carrier/noice ratio).

MER is also available.

Furtermore DIGIAIR Pro T2/C present pitchtones (the higher tone the stronger signal) on a loudspeaker.

DIGIAIR Pro T2/C is very sensitive and can detect even the weakest signals.

DIGIAIR Pro T2/C can feed Voltage (5/12 Volt) to external active antennas this feature is short-circuit protected by an automatic fuse.

DIGIAIR Pro T2/C is charged via an external DC power-source of 10 -18 volt.

The DIGIAIR Pro T2/C operates with 8xAA rechargeable batteries. The unit will work for at least 2 hours with fully charged batteries.

Even though the DIGIAIR Pro T2/C has a lot of functions it is still very easy to use and has a very compact design.

Input frequency: 45-860 MHz.

Input level: 30-80 dBuV.

Input impedance: 75 Ohm, F-connector.

Short circuit protection: Automatic fuse on antennainput.

Measuring method: in digital Three bars showing PreBER, PostBER(bit error rate) and C/N(carrier/noice ratio).

in analog One bar showing dBuV in high resolution or 6 bars showingstrength of 6 channels.

Spectrum display.

Pitch tone indication from beeper.

Signal-level readout: digital BER's and C/N values.

Analog dBuV with maxhold-function.

Power out: 0V, 5V,12V and 24V on/off.

Power supply/charger: 10 -18V DC (Centerpin +).

Display: Back-lighted 128x64 Pixels LCD.

Power consumption: 500mA.

Battery: 8x AA rechargeable batteries of1200mA each.

Weight: 0.3 kg.

Dimensions: 185 x 115 x 50 mm.

Accessories: Powersupply 12V DC, 1ARubber-case.Power supply.Car charger

More products SCANDINAVIA

TV SIGNAL LEVEL METER FOR ANALOG AND DIGITAL DVB-T DIGIAIRPRO

• for exact alignment and adjustment of terrestrial antennas DVB-T
• for both analog (dBuV) and digital (BER and SNR)
• Frequency range of 45-860MHz.
• The meter to use for easy Digital terrestial installations.
• Very sensitive, easy to maximize weak and strong signals.
• Signal level reads out in dBuV

PROFESSIONAL TV TESTER SATLOOK HD COLOR

• Spectrum-analyzer 950-2150MHz.
• DVB/S S/2 -receiver 920-2150MHz.
• Super bright 5" 16:9 TFT-LCD color display.
• Automatic Satellite identification.
• Readout of NIT - gives SAT ID and TV/Radio-channel info.
• Digital BER and S/N-ratio (DVB-S, S/2).
• QPSK and 8PSK constellation diagram.
• DVB-S (Free to Air) and SAT-analog TV-picture.

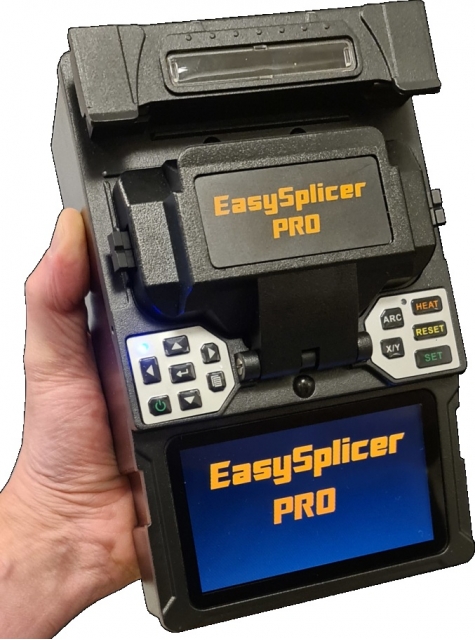

EASYSPLICER PRO - FUSION SPLICER WITH CORE POSITIONING
