Professional TV Tester SATLOOK HD COLOR

Code: SATLOOK HD COLOR



Datasheet PDF, 0.18 Mb

Description

Spectrum-analyzer 950-2150MHz.

DVB/S S/2 -receiver 920-2150MHz.

Super bright 5" 16:9 TFT-LCD color display.

Automatic Satellite identification.

Readout of NIT - gives SAT ID and TV/Radio-channel info.       Digital BER and S/N-ratio (DVB-S, S/2).

QPSK and 8PSK constellation diagram.

DVB-S (Free to Air) and SAT-analog TV-picture.

LNB voltage 13/18V, 22KHz tone switch.

DiSEqC according to level 1.0, 1.1 and 1.2.

SatCr-control (UniCable).

Favourite channel list (100 channels) for FTA DVB-S.

Lots of memory positions for spectrum pictures.

RS232 for PC-connection (up/download).

Rechargeable Li-Ion battery.





Input frequency: 920-2150MHz.

Sat-TV min level in: About 35 dBuV (noise).

Sat-TV max level in: About 90 dBuV.

Sat-TV attenuation: 15 dB attenuator on/off.

Display of signallevel(analog):dB on LCD/monitor.

Pitch-tone.

Sat-TV accuracy: ±1½ dB (at +20° C).

DVB-S S/2 Digital displayof signallevel:S/N (signal/noise-ratio) BER (bit errorrate)

Constellation (QPSK and 8PSK).

Satellite-indentification: Yes, by reading out the NIT in theBitstream. Info about the TV and Radiochannels.

TV standard: Multi TV/ (PAL, NTSC, SECAM).

KU- C-band: Yes, selectable.

nput impedance: 75 Ohm, BNC-con.

Picture-screen: 5" 16:9 TFT-LCD monitor

Menus: On LCD 64x128.

Memory: - Lots of spectrum pictures can be storedwith name.

Stored spectrum can be mixed for easyidentification of satellite.-"Maxhold"-function.

Favouritechannels: Both analog and digital frequencies canbe stored (with name).

100 DVB-S Free to Air channels can bestored in a favourite channel-list.

PC-connection: RS232-output and PC-software.

Sat-TV power out: Yes, 13-18V.

Sat-TV control: 22 kHz, DiSEqC SatCr (UniCable).

DiSEqC: Yes, all 1.0 and 1.1. 1.2, Toneburst on/off.

DiSEqC actuator: Built in positioner for DiSEqC 1.2,

Battery: Rechargable 12v, 3.5 amp/hour.

Weight: About 4 kg incl. battery.

Accessories: Nylon carrying-case.

Power-supply of 220v/13.5v, 1.7amp.

Car-charger,F-adapters



More products SCANDINAVIA

TV SIGNAL LEVEL METER FOR ANALOG AND DIGITAL DVB-T DIGIAIRPRO

• for exact alignment and adjustment of terrestrial antennas DVB-T
• for both analog (dBuV) and digital (BER and SNR)
• Frequency range of 45-860MHz.
• The meter to use for easy Digital terrestial installations.
• Very sensitive, easy to maximize weak and strong signals.
• Signal level reads out in dBuV


SATELLITE FINDER FOR FINDING AND ALIGNING ANTENNA DISH SATLOOK LITE

• Very handy and easy to use Satellite-TV meter.
• "EasyFind"- satellite identification for super fast installations.
• Very sensitive, easy to maximize weak and strong signals
• Digital BER and S/N-ratio
• Spectrum-analyzer 920-2150 MHz with zoom function
• Super bright LCD display with backlite


EASYSPLICER OTDR OPTICAL TIME DOMAIN REFLECTOMETER FIBER OPTIC TEST TOOL

• • Professional instrument for measuring loss and finding faults in fiber networks
• • Optical Time-Domain Reflectometer
• • Measure distance from 0 to 60km, in resolution of 1m
• • Measure dB loss with a resolution of 0.01 dB
• • Auto mode for super easy operation (and Expert Mode for Experts)
• • 4.3 inch, multicolor LED touchscreen
• • Comes in sturdy carrying-case with launce cable and 4x adapter cables
• • VFL, OPM and OLS, two wavelengths - 1310nm and 1550nm
• • RJ45 cable tracker and distance readout (up to 300m)


CABLE TV LEVEL METER FOR ANALOG AND DIGITAL SIGNAL DIGIAIRPRO CATV

• Perfect for digital CATV installations (QAM).
• For both analog (dBuV) and digital (MER and BER)
• Handy spectrum-analyzer for frequency 45-860MHz.
• Easy digital readout of MER, BER and Constellation diagram.
• QAM16, QAM32, QAM64, QAM128 & QAM256.
• Analog signal level reads out in dBuV, dBmV and dBm with maxhold function.


EASYSPLICER OPTICAL FIBER FUSION SPLICER - COMPLETE KIT

• Fusion splicing made easy and affordable with the EasySplicer
• For both Singlemode and Multimode fibres
• Splicing time of less then 7 seconds
• Loss estimation.
• Pull test of performed splices
• Built in oven.
• Easy to use and to carry along
• Perfect for the FTTH installer


PROFESSIONAL TV TESTER SATLOOK HD COLOR

• Spectrum-analyzer 950-2150MHz.
• DVB/S S/2 -receiver 920-2150MHz.
• Super bright 5" 16:9 TFT-LCD color display.
• Automatic Satellite identification.
• Readout of NIT - gives SAT ID and TV/Radio-channel info.
• Digital BER and S/N-ratio (DVB-S, S/2).
• QPSK and 8PSK constellation diagram.
• DVB-S (Free to Air) and SAT-analog TV-picture.

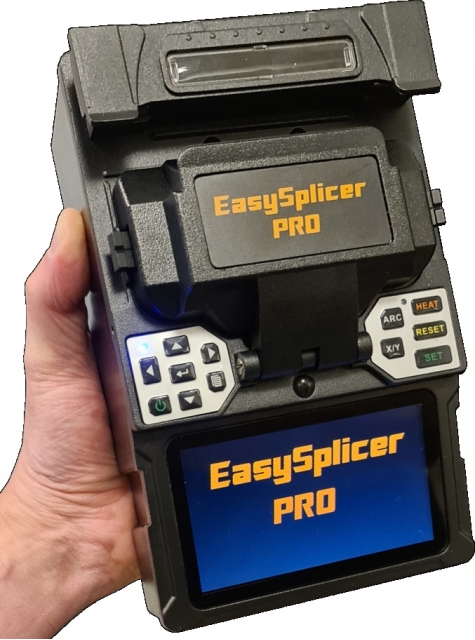

EASYSPLICER PRO - FUSION SPLICER WITH CORE POSITIONING
