Battery Load Bank Tester for Charge/Discharge with WiFi Wireless Communication Pite 3980

• LCD: 5.7" 320 x 240 TFT touch screen
• Measurement Range: Vrms 10..700V
• Arms: 5A, 10A, 100A, 1000A, 1500A and 3000A (with relative current clamps)
• Up to 50 times harmonic testing with frequency spectrum graph
• Power testing: 3-phase apparent power, active power, reactive power, power factor
• Testing for wave motion, short-time flicker and long-time flicker
• Could have long-time record for basic (stable) power quality parameter

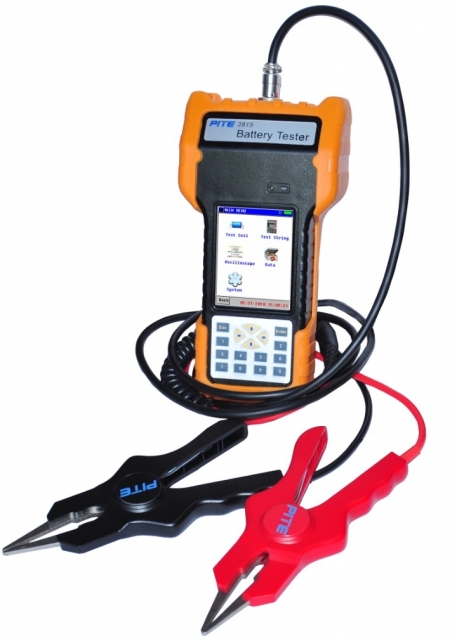

• Battery capacity 5–6000 Ah
• Compatible cells 1.2V, 2V, 6V, 12V
• Voltage range 0.000–16V
• Resolution 0.1 mΩ / 1 mV
• Cells per string 1–254 cells
• Battery life >5 hours



• Smart, portable and easy touch-screen (TFT) operation
• Single-phase and three-phase measurement, two in one
• Combination of electricity meter tester and power quality analyzer
• Online monitor for real-time data testing and comparison
• Safe and quick measurement for electricity anti-theft
• Test result playback on screen and transferable to PC for report printing, can record up to 1000 records
• User-friendly interface and vivid screen display, simplify on-site testing power meters
• Test active energy, reactive energy, harmonic active, harmonic reactive and power factor



• LCD: 3.5" 320 x 240 TFT touch screen
• Measurement Range: Vrms 10..700V
• Arms: 5A, 10A, 100A, 1000A, 1500A and 3000A(with relative current clamps)
• Could test 3-phase volt, null line volt, 3-phase current, null line current
• Digital oscilloscope, checking waveform for voltage and current signal
• Power testing: 3-phase apparent power, active power, reactive power, power factor, and 3-phase electric power



• Small weight, portable unit with carrying case
• It sets 4 conditions for auto shut-down of discharge
• Parallel connection of two units for mass discharge
• Real-time display of voltage for each cell with DAC
• Accurate data results and vivid waveforms
• Auto sorting for lag-out batteries during discharging
• AC & DC power supply modes for different needs
• Direct USB drive for convenient data transfer to PC



• designed for continuous, long term and on-line monitoring of fault gases dissolved in oil
• provides readings of gas level, gas trending and alarming
• Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Ethylene C2H4



• Small size, portable and user-oriented
• Applicable to single cell of 2V, 6V and 12V
• 3 functions in one: charging, discharging and activation
• These functions could be used separately or comprehensively
• Testing waveform playback function
• Direct USB drive for data transferring to PC
• Powerful PITE DataView software



• High output power with light weight: up to 220V, 50A
• Ventilation channel and circuit with dustproof structure
• Build-in CPU, automated management for battery charging
• Auto calculation for changed time and changed capacity
• Over-voltage protection and under voltage warning function
• Thermal protection, auto stop in overheating and auto start in normal temperature



• Continuous, on-line intelligent dissolved gas and moisture monitor
• enhanced oil recirculation
• can be mounted in a single valve with a simple, light-weight and easy-to-mount solution
• Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Ethylene C2H4



• Two function in one: Insulation tester and ground fault locator
• Test and record insulation status of facilities
• Signal-generator with adjustable frequency and voltage, convenient for testing.
• Reflects aging status of facilities for further reparation.
• Powerful management software on PC for trouble analyzing
• Reduced maintenance and repair costs
