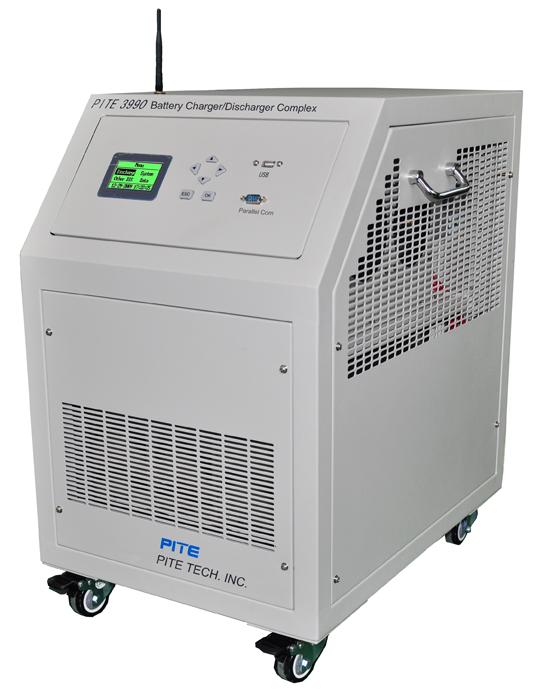

Light weight, most models are portable within 20kg
Suitable for all standby batteries and power batteries: 2V, 6V and 12V
Multi-function in one unit: it uses 3-phase charging, constant current discharging, cell test, optional online monitor and battery activation
Multi-condition for operation auto-stop: time out, maximum capacity, minimum voltage threshold (for battery or string)
It adapts PTC ceramic resistor which secures your discharging
Lag-out batteries could be automatically sorted, and activation function is used to enhance their performance
Instead of merely a load bank, it has optional wireless communication to monitor each battery voltage in discharging
State-of-the-art technique of soft-off for battery charging
Graphical display, showing test result with curves
Direct USB drive for convenient data transfer to PC
Over voltage protection and under voltage warning function
Thermal protection, auto stop in overheating and auto start in normal temperature
Powerful data view software for complex data analyzing and report printing
Various models applicable to different area of industry like telecom and power utility

Recommended options

CODE	NOTE	Description
DCC-22001	With DAC	For battery 220 VDC Max discharge current: 30A Max charge current: 15A

DCC-22001-1	W/O DAC

DCC-11001	With DAC	For battery 110 VDC Max discharge current: 80A Max charge current: 40A

DCC-11001-1	W/O DAC

DCC-4801	With DAC	For battery 48 VDC Max discharge current: 150A Max charge current: 50A

DCC-4801-1	W/O DAC

DCC-4802	With DAC	For battery 48 VDC Max discharge current: 200A Max charge current: 100A

DCC-4802-1	W/O DAC

More products PITE

SINGLE AND THREE-PHASE ENERGY CALIBRATION METER TESTER PITE 3552

• Touch-screen (TFT) and keyboard synchronous operation
• Combination of electricity meter tester and power quality analyzer
• Test all metering units and power meters of both high and low volt under 10KV
• Com port: USB port
• Safe and quick measurement for electricity anti-theft meter error

BATTERY CHARGER TESTER PITE 3970

• High output power with light weight: up to 220V, 50A
• Ventilation channel and circuit with dustproof structure
• Build-in CPU, automated management for battery charging
• Auto calculation for changed time and changed capacity
• Over-voltage protection and under voltage warning function
• Thermal protection, auto stop in overheating and auto start in normal temperature

DISSOLVED GAS MONITORING EQUIPMENT FOR OIL TRANSFORMER PITE KG1100

• designed for continuous, long term and on-line monitoring of fault gases dissolved in oil
• provides readings of gas level, gas trending and alarming
• Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Ethylene C2H4

THREE PHASE ELECTRIC POWER QUALITY ANALZYZER PITE 3561

• LCD: 5.7" 320 x 240 TFT touch screen
• Measurement Range: Vrms 10..700V
• Arms: 5A, 10A, 100A, 1000A, 1500A and 3000A (with relative current clamps)
• Up to 50 times harmonic testing with frequency spectrum graph
• Power testing: 3-phase apparent power, active power, reactive power, power factor
• Testing for wave motion, short-time flicker and long-time flicker
• Could have long-time record for basic (stable) power quality parameter

INSULATION TESTER & GROUND FAULT LOCATOR FOR EARTH LEAKAGE CURRENTS PITE 3830

• Two function in one: Insulation tester and ground fault locator
• Test and record insulation status of facilities
• Signal-generator with adjustable frequency and voltage, convenient for testing.
• Reflects aging status of facilities for further reparation.
• Powerful management software on PC for trouble analyzing
• Reduced maintenance and repair costs

DISSOLVED GAS MONITORING TESTER FOR OIL TRANSFORMER PITE KGX1

• Continuous, on-line intelligent dissolved gas and moisture monitor
• enhanced oil recirculation
• Hydrogen H2
• Selective Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Ethylene C2H4
• Moisture in Oil(RH%)

DISSOLVED GAS MONITOR ANALYZER FOR OIL TRANSFORMER AND DIELECTRIC LIQUIDS PITE KGX5

• Continuous, on-line intelligent dissolved gas and moisture monitor
• enhanced oil recirculation
• can be mounted in a single valve with a simple, light-weight and easy-to-mount solution
• Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Ethylene C2H4

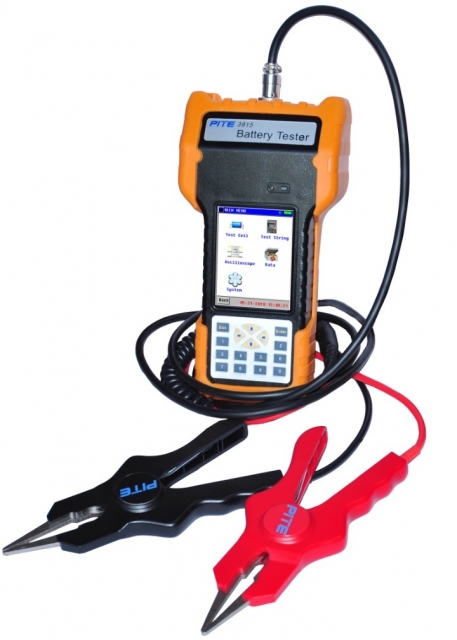

HANDHELD BATTERY INTERNAL RESISTANCE TESTER 1.2V..12V PITE 3915
