Voltage Tester Megger - TPT320
OBSOLET PRODUCT ( * OUT OF USE )

Code: Megger - TPT320




Datasheet PDF, 0.08 Mb


Description

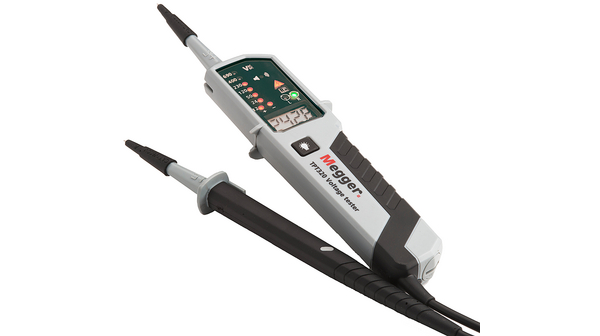

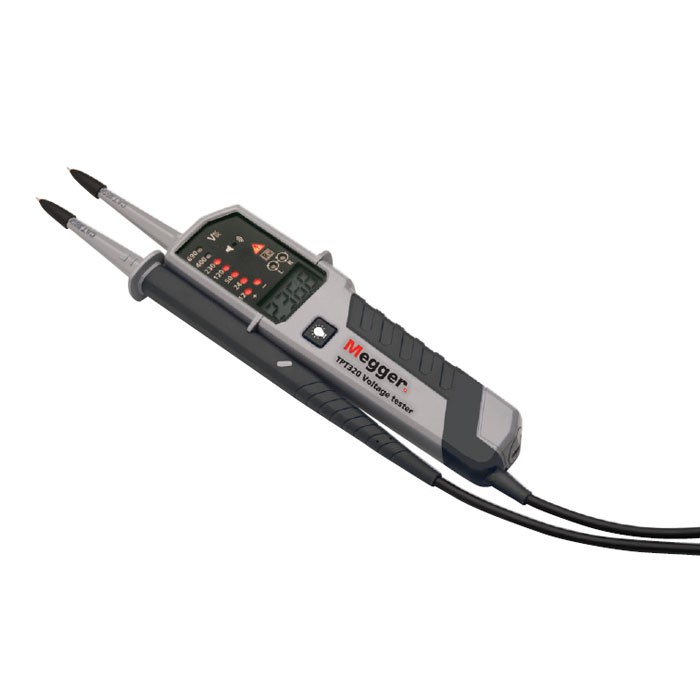

The Megger TPT320 voltage tester provides electricians and electrical engineers with voltage indication but has additional functions / features that makes the instrument a versatile instrument.



The TPT320 features both LCD and LED displays that provides AC and DC voltage measurement from 12 to 690 volts, in addition, a continuity function ranging from 0 to 500 kO. Continuity and voltage measurements greater are accompanied by an acoustic sounder.



Features:

  • AC / DC voltage from 12 to 690 V
  • Continuity
  • Phase rotation
  • LCD / LED display
  • Bright LED torch
  • CAT IV 600 V rating
