Megger S1-552/2 Insulation Resistance Megohmmeter 5kV
OBSOLET PRODUCT ( * OUT OF USE )

Code: Megger S1-552/2




Datasheet PDF, 0.17 Mb

Description

• CATIV 600 V
• High output current 5 mA for fast charging of capacitive loads
• Testing up to 5 kV
• Mains or battery powered
• Digital/analogue backlit display
• Variable test voltage from 50 to 5000 V
• Automatic IR, PI, DAR, SV and DD tests
• Measures to 15 TO
• RS232 and USB download of results





Now CAT IV, the S1-552/2 was designed specifically to assist you with the testing and maintenance of high voltage electrical equipment. The case is incredibly rugged and easy to carry, being made of tough polypropylene and achieving an ingress protection rating of IP65. In addition, the model number is marked on both the top and side of the case for ease of identification in stores or vehicles.

As well as measuring insulation resitance to 15 TO, the S1-552/2 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage and Dielectric discharge.

The instrument has a large easy to read backlit LCD display making it equally suitable for use in both bright unlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.



Standard accessories

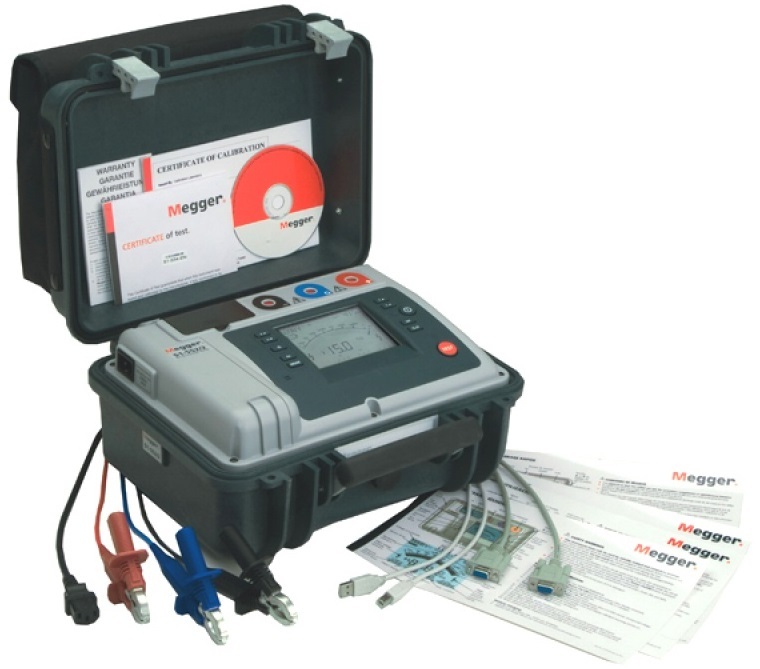

5 kV insulation resistance tester S1-552/2

10 kV insulation resistance tester S1-1052/2



Included Accessories

3 m lead set medium insulated clips 1002-531

User guide on CD-ROM 2000-213

RS232 cable 25955-025

USB cable 25970-041

3 x 3 m lead set large insulated clips (S1-1052/2 only) 1002-534



Recommended options

Optional Accessories

HV test lead sets

5 m leadset x 3, medium insulated clips* 1002-641

8 m leadset x 3, medium insulated clips 1002-642

10 m leadset x 3, medium insulated clips 1002-643

15 m leadset x 3, medium insulated clips 1002-644

5 m leadset x 3, large insulated clips* 1002-645

8 m leadset x 3, large insulated clips 1002-646

10 m leadset x 3, large insulated clips 1002-647

15 m leadset x 3, large insulated clips 1002-648

*These test leads may also be supplied in non-stan­dard lengths to suit a particular application / requirement. Please contact Megger for a quotation, minimum order quantities may apply.

3 m leadset x 3, bare compact clips 8101-181

8 m leadset x 3, bare compact clips 8101-182

15 m leadset x 3, compact bare clips 8101-183

1 kV test lead sets

2 x 3 m control circuit, small insulated clips 6220-822



Screened HV test leads

1 x 3 m, 5 kV screended un-insulated compact clips 6220-835

1 x 15 m, 5 kV screened un-insulated compact clips 6311-080

1 x 3 m, 10 kV screened un-insulated compact clip 6220-834

1 x 10 m , 10 kV screened un-insulatedcompact clip 6220-861

1 x 15 m , 10 kV screened un-insulated compact clip 6220-833



Other

CB101, 5 kV calibration box 6311-077

Calibration certificate - CB101 1000-113

UKAS calibration certificate CB101 1000-047
