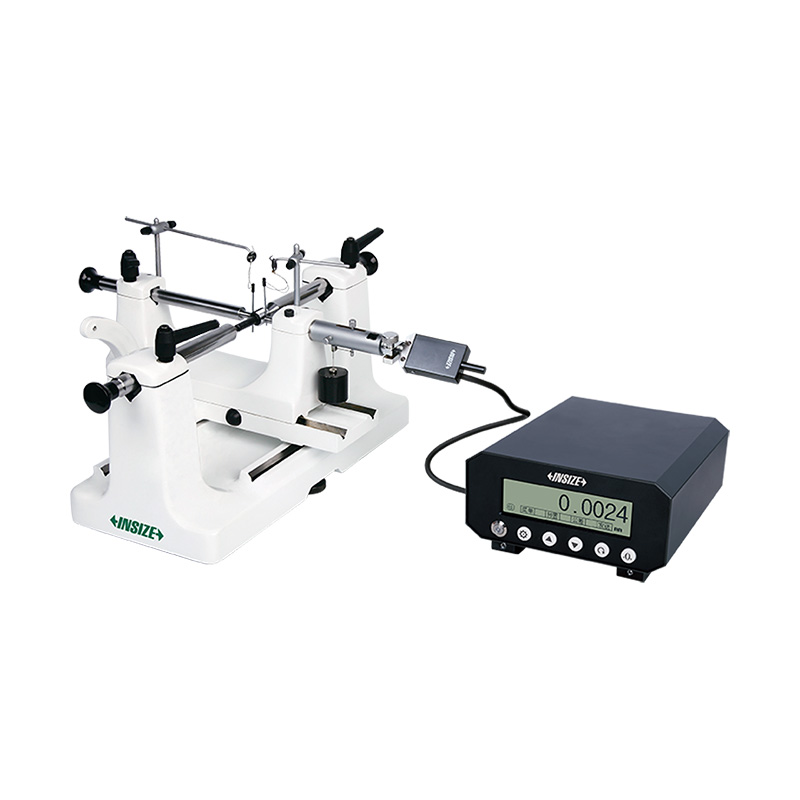

External Thread Measuring Device ISQ-TE100

Code: ISQ-TE100




Datasheet PDF, 1.05 Mb

Description

External Thread Measuring Device
Code: ISQ-TE100

  • Quickly measure major, pitch and minor diameters of external thread
  • Suitable for metric, inch, whitworth, NPT and BSPT

Code:  ISQ-TE100
Range:  0-100mm
Accuracy:  2μm
Resolution:  0.1μm
Repeatability:  0.5μm
