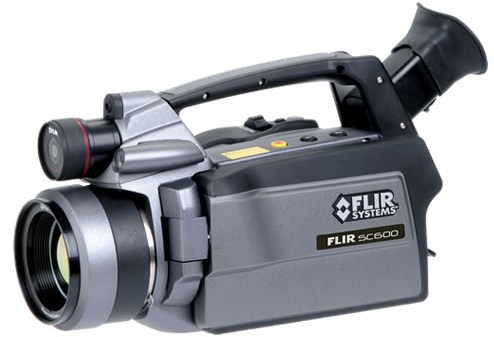

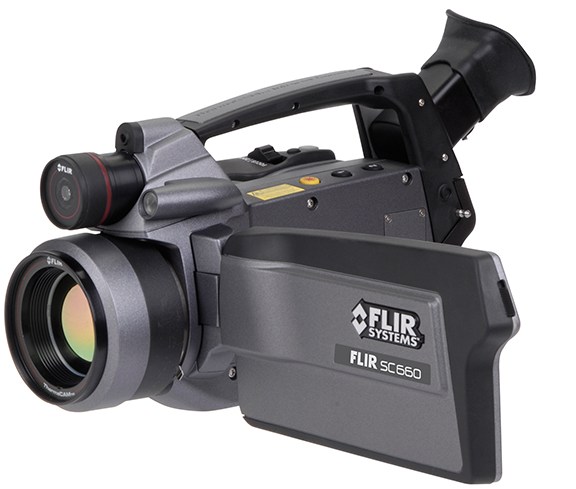

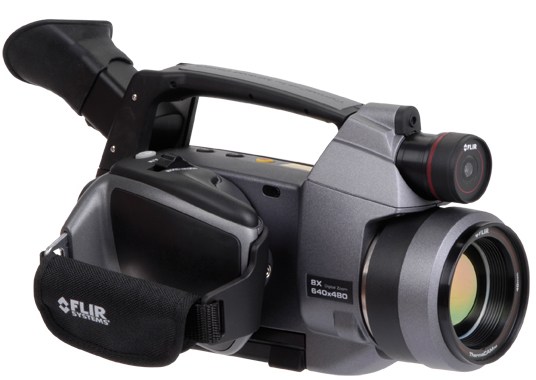

Flir SC-320 SC-640 SC-660 High Resolution Infrared Camera for Research & Development
OBSOLET PRODUCT ( * OUT OF USE )

Description

Highest sensitivity and most advanced feature set availableon portable cameras. Supplies a combination of infrared and visible spectrum images of superior quality and temperature measurement accuracy - plus contrast optimizer, laser pointer, voice annotation and a host of other advanced features.

640x480 pixel resolution
The FLIR SC620/SC640/SC660 have a high resolution pixel detector of 640 x 480 pixels for more accuracy and higher resolution.

High sensitivity (FLIR SC640/SC660)
< 30 mK thermal sensitivity captures the finest image details and temperature difference information.

High quality visual camera
An integrated 3.2 megapixel visual camera for generating crisp visual images in all conditions.

Contrast Optimizer (FLIR SC660)
Automatic optimization of brightness and contrast adjustments to make it easier to make thermal analyzes of detailed objects.

Multifunction Video Capture
The 5.6" widescreen LCD allows on-camera viewing of images. Its FireWire interface can transfer 14-bit radiometric or RAW data directly into a PC for real-time analysis of captured images and for FLIR SC660/SC640 also RAW data. Furthermore, radiometric sequences can be stored on high capacity SD-cards. MPEG-4 non-radiometric video sequences can also be streamed to a PC via USB, FireWire or WLAN (optional).

Built-in GPS (SC660)
GPS allows to georeference infrared images to determine their geographic location.

Laser Pointer
Helps you associate the hot or cold spot in the IR image with the real physical target in the field.

Flexible interfaces
Easy access to composite video connection, USB, FireWire, IrDA, and a direct connection to charge the battery inside the camera.

FLIR Thermal Fusion
Merges visual and thermal images to offer better analysis.

Picture-in-picture
Create an infrared overlay on your visual image. Moveable and resizable.

Radiometric JPEG
FLIR uses a non proprietary radiometric JPEG image format that allows for post processing and report writing with Microsoft Word® based FLIR software.

Thumbnail image gallery
An easy-to-access thumbnail image gallery helps you to quickly review and find your infrared images.

Text and voice annotations
Text comments can be uploaded to the camera through a wireless IrDA interface. A headset can be connected to make voice annotations.

Automatic- and Manual focus, Digital zoom
Focus possibilities include; single shot auto focus, continuous auto focus, laser based (660-models) or manual focus. Digital zoom 1-2x continous (SC620), 1-8x continous (SC640/SC660).

Large LCD screen
Super size 5.6" foldable high-quality LCD screen allows you to see the smallest details and temperature differences.

Multi-angle handle with integrated direct access buttons
A turnable control grip allows you to use the camera in the most comfortable position. The buttons and joystick to control the camera are integrated in this handle and always stay right underneath your fingertips.

Programmable direct access buttons
For increased flexibility the operator can program buttons located on the top of the camera for direct access to favourite functions.

Wifi

Connect to iPhone or iPad via Wi-Fi to use the FLIRViewer App for processing and sharing results

FLIR SC-Series camera model comparison
